991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

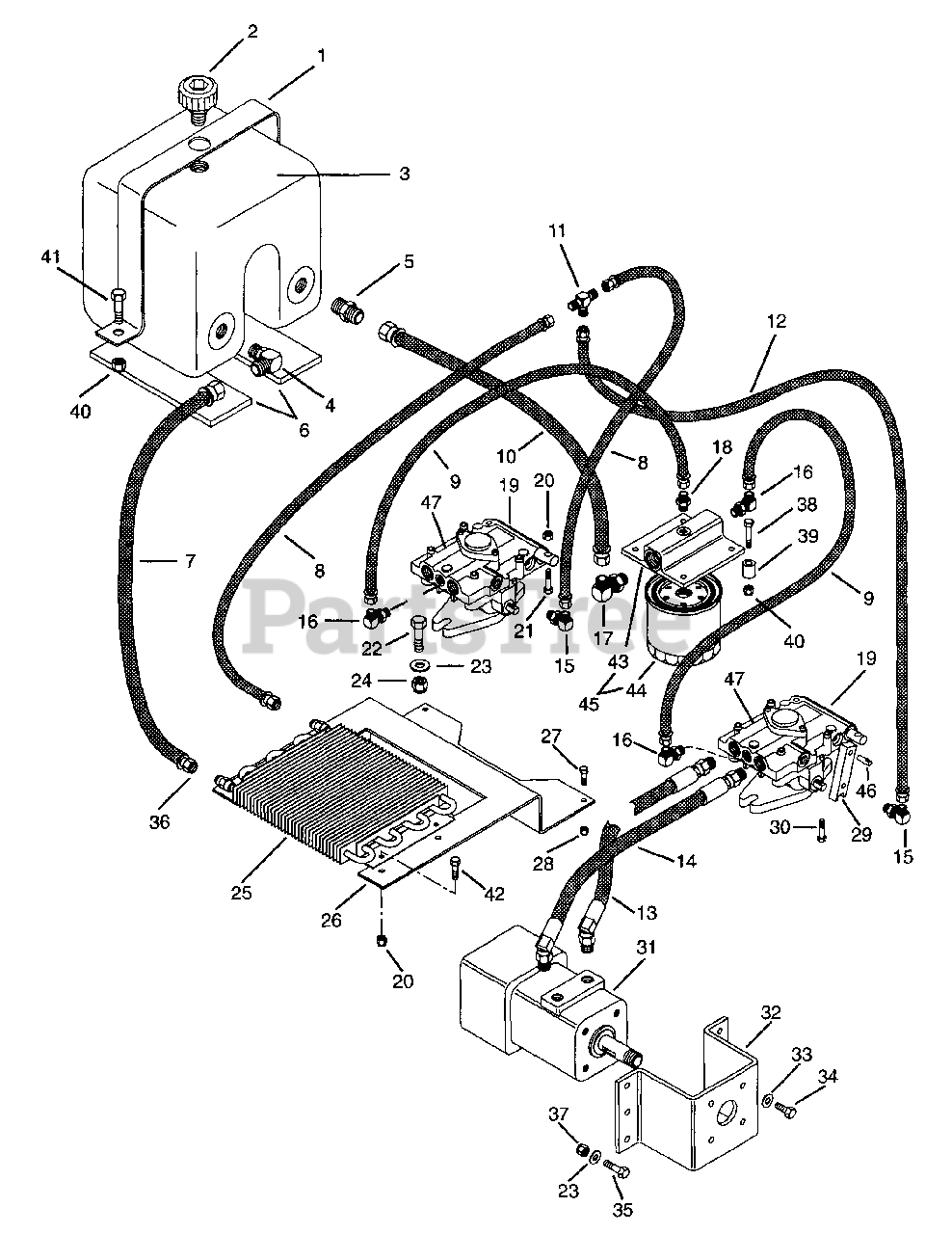

TRANSMISSION Parts Diagram

  • Title

1

Gravely 050525

Strap, Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 050507

Cap, Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

3

Gravely 050272

Tank, Hydraulic
(Superseded to 09032900)

$

$

Not available

4

Gravely 046072

Adapter .37 - .875
(Superseded to 07020000)

$

$

Not available

5

Gravely 07025800

Adapter, Hydraulic

$13.99

$

In Stock, only 2 left!

0

6

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

7

Gravely 09106100

Hose, Hydraulic Cooler to Tank

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 039847

Hose, Hydraulic Valve to Tank
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 051281

Hose, Oil Filter to Pump
(Superseded to 08845200)

$

$

Not available

10

Gravely 09106000

Hose, Hydraulic Tank to Filter

$

$

Not available

11

Gravely 021799

Adapter-Tee .56-18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 053103

Hose, Pump to Tee
(Superseded to 08856400)

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 051231

Assembly,, Hose Wheel Motor to Pump
(Superseded to 58803800)

$149.99

$

Usually ships in 4-12 days

0

14

Gravely 051232

Assembly, Hose Wheel Motor to Pump
(Superseded to 58803900)

$

$

Not available

15

Gravely 018828

Adapter 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 050961

Adapter-Pipe .75-16
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 021286

Adapter 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 053330

Variable Displace Pump
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

20

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 180044

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 180123

Bolt-Hex .38-16 x 1.125

$

$

Not available

23

Gravely 06429300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 413534

Nut-Locking-Center .625-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

26

Gravely 09112800

Bracket, Oil Cooler

$

$

Not available

27

Gravely 180123

Bolt-Hex .38-16 x 1.125

$

$

Not available

28

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 051116

Arm, Pump Actuating
(Superseded to 08880700)

$

$

Not available

30

Gravely 418934

Screw-Cap 10-24 x .75
(Superseded to 05932900)

$

$

Not available

31

Gravely 051130

Motor, Hydraulic Wheel
(Superseded to 08864000)

$

$

Not available

32

Gravely 051106

Bracket, Wheel Motor
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

33

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

35

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 021247

Clamp, .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

37

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

38

Gravely 180087

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 052653

Bushing, Sleeve .328 x .462 x 1.00
(Superseded to 08839600)

$

$

Not available

40

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

43

Gravely 051143

Assembly, Head
(Superseded to 08157900)

$

$

Not available

44

Gravely 050968

Element
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

45

Gravely 051142

Assembly, Spin-On Lube
(Superseded to 08844700)

$

$

Not available

46

Gravely 051889

Pin-Dowel .312 x 1.25
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 588033

Kit-Seal

$

$

Not available
