991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

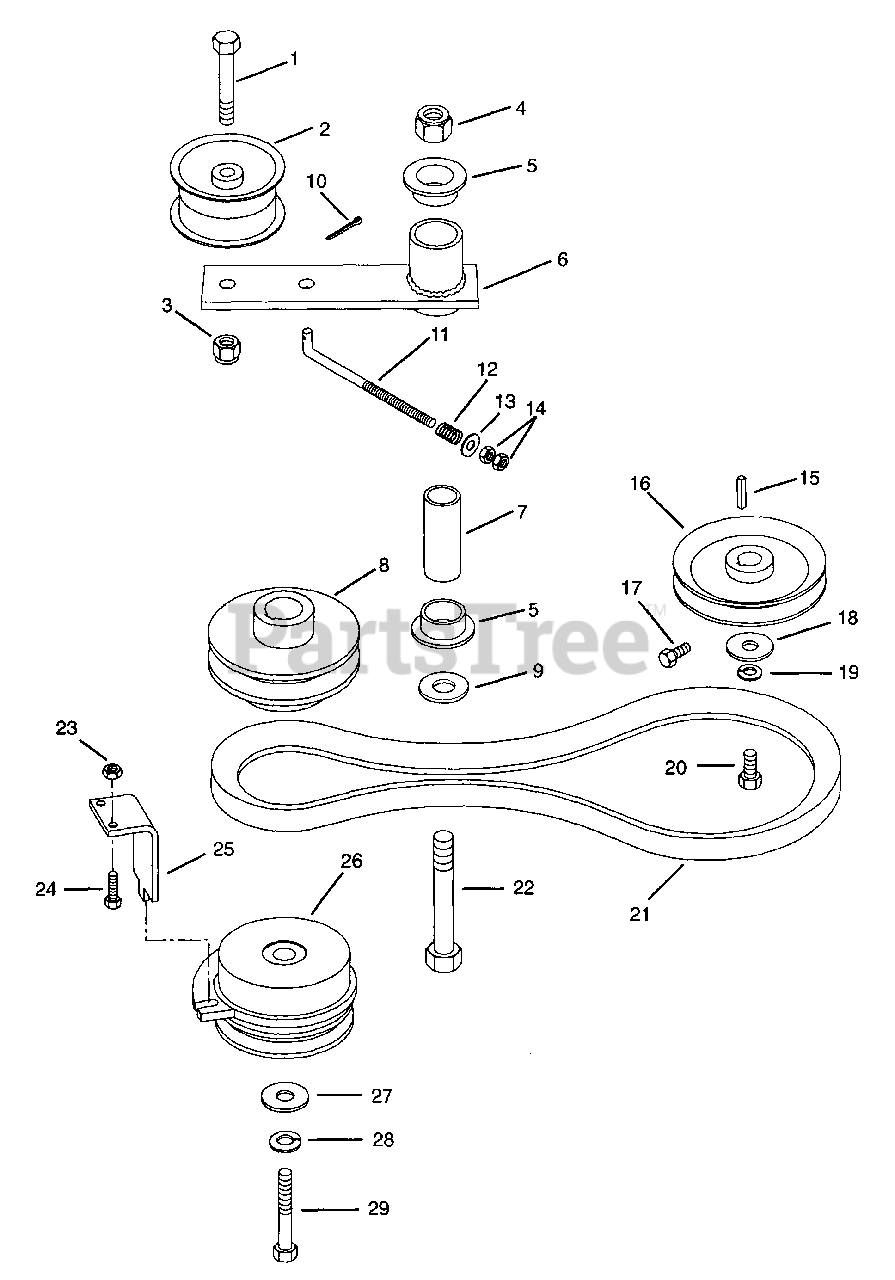

TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

  • Title

1

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 052062

Idler-Pulley Flat 3.25 x .625
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

3

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 051134

Weldment, Ground Drive Idler
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

Bushing, Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

8

Gravely 09113600

Sheave

$116.99

$

Usually ships in 4-12 days

0

9

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

11

Gravely 052661

Rod, Idler
(Superseded to 08879300)

$77.99

$

Usually ships in 4-12 days

0

12

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 050995

Key-Straight 5MM x 25MM x 5MM
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

17

Gravely 180016

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 012694

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$

$

Not available

19

Gravely 120380

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 050996

Bolt-Hex M6 x 1.0 12MM
(Superseded to 05969800)

$1.99

$

In Stock, Qty 14

0

21

Gravely 051141

V-Belt A-Section 24.50 x .516
(Superseded to 07223100)

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 180190

Bolt-Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

23

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05918100

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09113400

Clutch Stop

$

$

Not available

26

Gravely 03357900

Clutch, Electric

$491.99

$

In Stock, only 1 left!

0

27

Gravely 044379

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

28

Gravely 120383

Washer-Lock .44 Reg.
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

29

Gravely 05937400

Bolt-Hex .44-20 x 1.00

$

$

Not available
