991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 40" ELECTRICAL SYSTEM Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

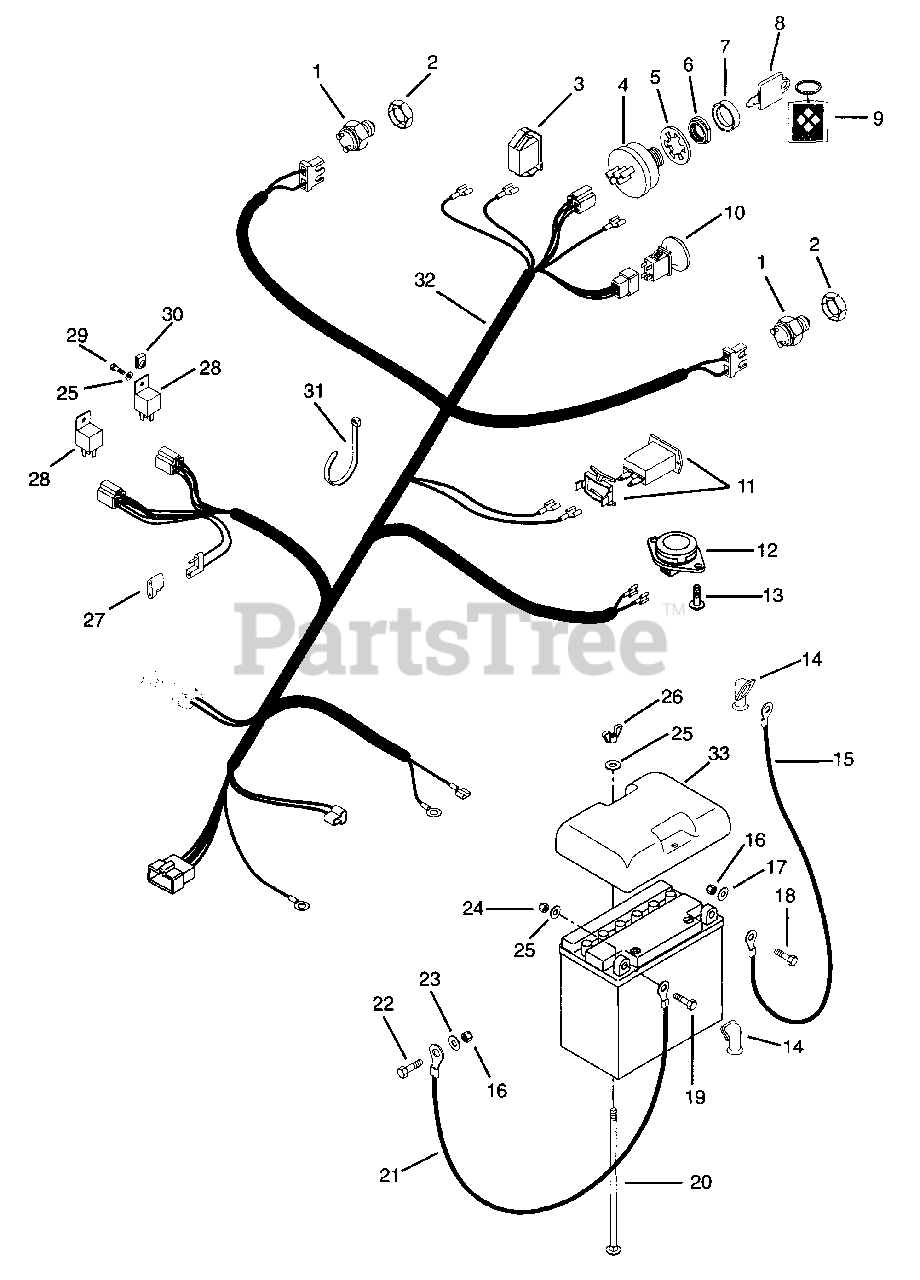

40" ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

2

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 01966700

Washer-Locking-Internal .563 x .040

$

$

Not available

6

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

7

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

10

Gravely 00522100

Mount Plate, Transaxle Right Hand
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

11

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 1 left!

0

12

Gravely 03654200

Switch-Seat

$

$

Not available

13

Gravely 160515

Screw-Machine .25-20 x .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 03384700

Boot, Insulator

$

$

Not available

15

Gravely 02743300

Start Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

16

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 126922

Bolt-Round Head Square Neck .25-20 x 7.00
(Superseded to 06200229)

$4.49

$

In Stock, only 2 left!

0

21

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 05957100

Bolt-Hex .312-18 x .750
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 120306

Washer-Flat-Steel .312 x .734 x .065

$

$

Not available

24

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

27

Gravely 03081700

Molded Diode Plug

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

29

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 09113800

Harness, Wiring 18 HP Kohler

$

$

Not available

33

Gravely 09032300

CVR-Battery
(Superseded to 04912900)

$11.99

$

Usually ships in 4-12 days

0
