991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000216 & Above) WHEELS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

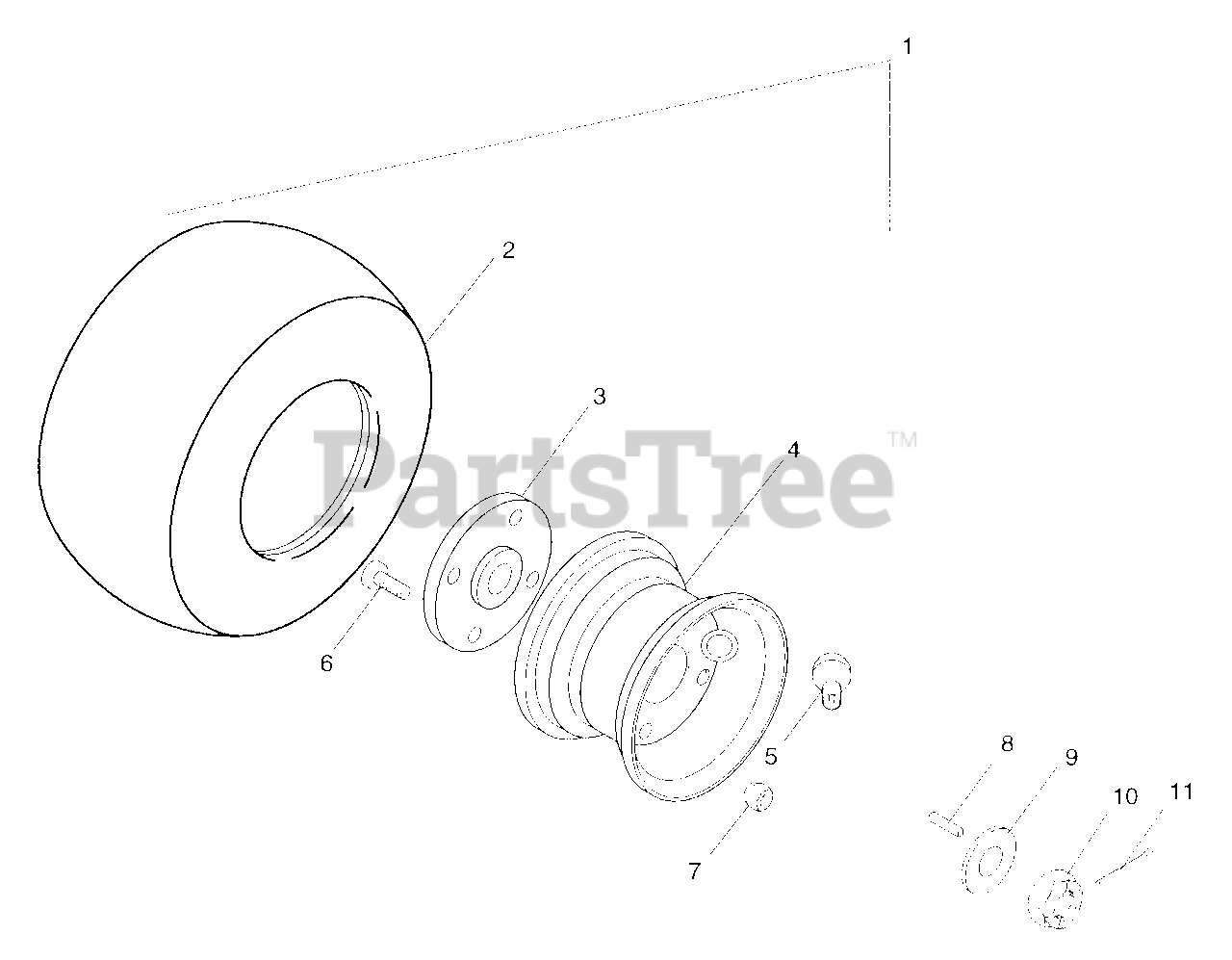

WHEELS Parts Diagram

  • Title
1

Gravely 053181

Wheel Asm 18 x 8 - 50 - 8
(Superseded to 07135500)

$

$

Not available

2

Gravely 048882

T/Whl Assy 18 x 8.50 - 8
(Superseded to 07130800)

$

$

Not available

3

Gravely 052056

Asm, Hub
(Superseded to 07131600)

$113.99

$

Usually ships in 4-12 days

0

4

Gravely 052055

Asm, Rim
(Superseded to 07107700)

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 011191

Valve Stem Ass'y
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

6

Gravely 011058

Bit, 1/2 - 20 x 1.25 Pan Hd
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 011058

Nut - Hex .50 - 20
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 052054

Key, Sq 3/16 x .750
(Superseded to 06604900)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 423315

Wshr - Fl - Stl .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 052053

Nut, Hex 3/4 - 28 Slotted
(Superseded to 08846900)

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 179252

Pin - Cotr .06 x 1.00
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0
