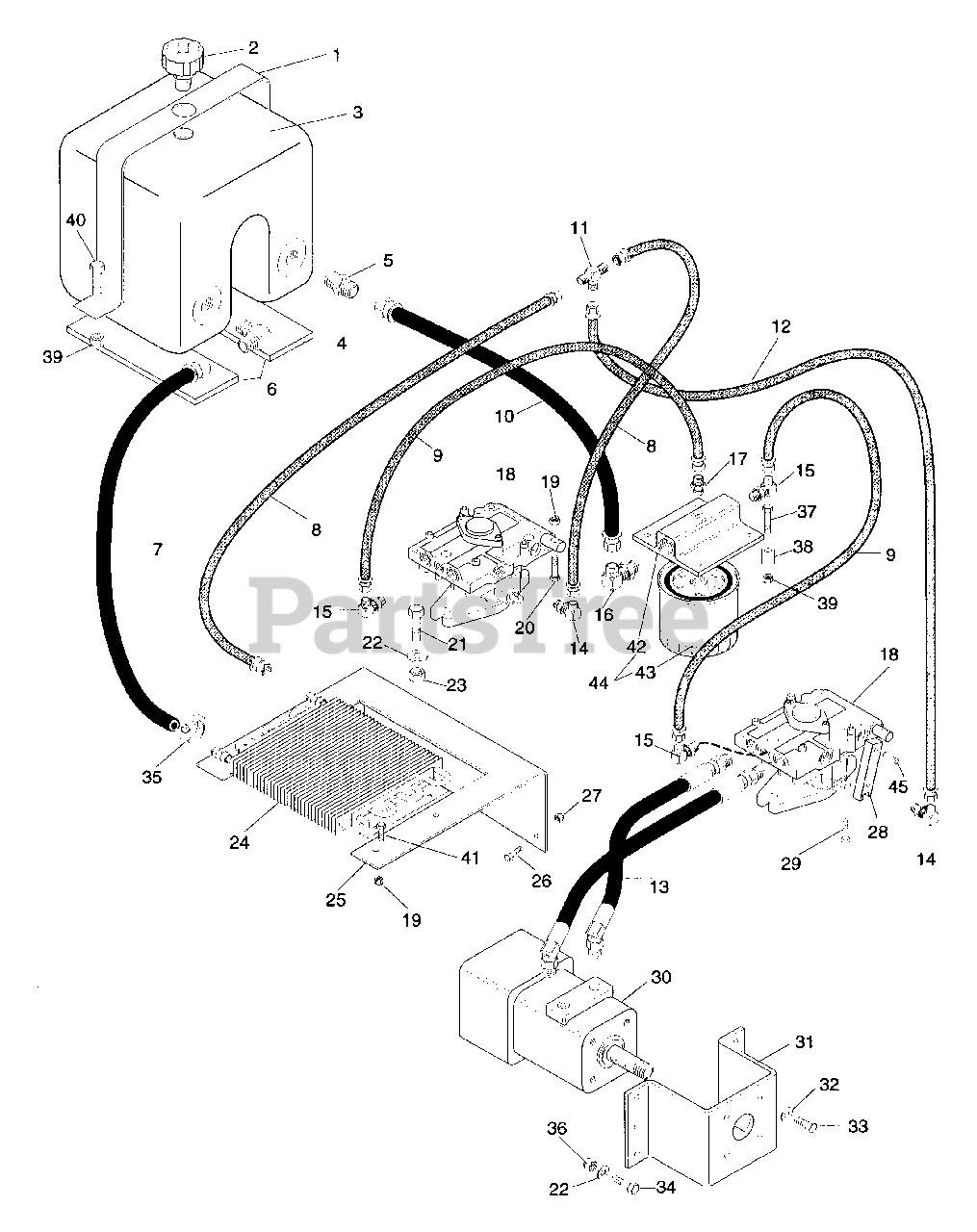

991003 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000174 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 050525

Strap, Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 050507

Cap, Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

3

Gravely 050272

Tank, Hydraulic
(Superseded to 09032900)

$

$

Not available

4

46072

Adptr - .75 - .875

$

$

Not available

5

70258

Adapter, Hyd.

$

$

Not available

6

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

7

91061

Hose, Hyd Cooler To Tank

Note: Models (02,04)

$

$

Not available

7

91109

Hose Asm, Oil Cooler to Tank

Note: Models (01,03)

$

$

Not available

8

Gravely 039847

Hose, Hyd Valve To Tank
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 051281

Hose, Oil Filter To Pump
(Superseded to 08845200)

$

$

Not available

10

91060

Hose, Hyd Tank To Filter

$

$

Not available

11

Gravely 021799

Adpt Tee.56 18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 053103

Hose, Pump To Tee
(Superseded to 08856400)

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 051231

Asm, Show Whl Mtr To Pump
(Superseded to 58803800)

$149.99

$

Usually ships in 4-12 days

0

13

Gravely 051232

Asm, Hose Whl Mtr To Pump
(Superseded to 58803900)

$

$

Not available

14

Gravely 018828

Adpt 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 018826

Adpt 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 050961

Adptr - Pipe .75 - 16 "O" Ring M37
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021286

Adpt 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 053330

Variable Displace Pump
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

19

Gravely 419454

Nut - Lk - Nyl .250 - 20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 180044

Blt - Hex .25 - 20 x 2.00 Pl Gr 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 180123

Blt - Hex .38 - 16 x 1.125

$

$

Not available

22

64293

Wshr - Fl - Stl .406 x .812 x .065

$

$

Not available

23

Gravely 413534

Nut - Lk - Ctr .375 - 16 Typ N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

25

Gravely 053110

Brkt, Oil Cooler Kohler
(Superseded to 08857000)

Note: Models (02,04)

$

$

Not available

25

53109

Brkt, Oil Cooler B & S

Note: Models (01,03)

$

$

Not available

26

Gravely 180123

Blt - Hex .38 - 16 x 1.125

$

$

Not available

27

Gravely 456004

Nut - Lk - Nyl .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 051116

Arm, Pump Actuating
(Superseded to 08880700)

$

$

Not available

29

Gravely 418934

Scr - Cap 10 - 24 x .75 Hex Sc
(Superseded to 05932900)

$

$

Not available

30

Gravely 051130

Motor, Hyd Wheel
(Superseded to 08864000)

$

$

Not available

31

Gravely 051106

Brkt, Wheel Motor
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 120382

Wshr - Lock .375 x .094 Med Pl
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 180121

Blt - Hex .380 - 16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 180122

Blt - Hex .38 - 16 x 1.00 Pl Gr 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 021247

Clamp, .88 Dia. Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

36

Gravely 456004

Nut - Lk - Nyl .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 180087

Blt - Hex .31 - 18 x 2.00 Pl Gr 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 052653

Bush., S .328 x .462 x 1.00 St
(Superseded to 08839600)

$

$

Not available

39

Gravely 419455

Nut - Lk - Nyl .312 - 18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 180077

Blt - Hex .31-18 x .75 Pl Gr 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 180018

Blt - Hex .25 - 20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

42

Gravely 051143

Asm, Head
(Superseded to 08157900)

$

$

Not available

43

Gravely 050968

Element
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

44

Gravely 051142

Asm, Spin-On Lube
(Superseded to 08844700)

$

$

Not available

45

Gravely 051889

Pin, Dowel
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0
