991003 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 - 000173) 40" Mower Frame 1 Parts Diagram

Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton

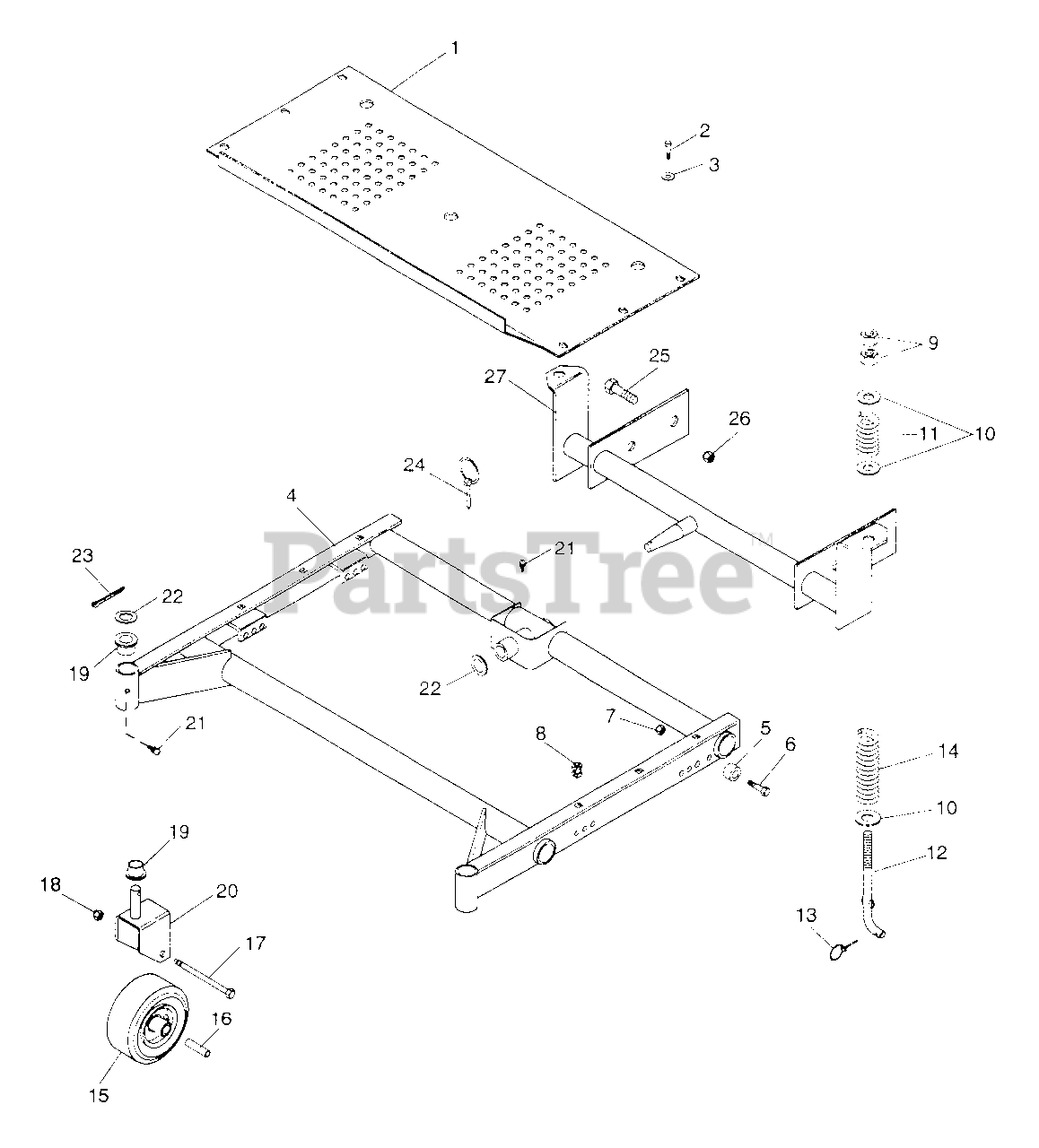

40" Mower Frame 1 Parts Diagram

  • Title

1

Gravely 091095

Footboard
(Superseded to 09109500)

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 160541

Screw, Machine .25-20 Pan Head
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 091090

Weldment, Mower Frame 40" 3 Spindle

$

$

Not available

5

Gravely 050396

Bushing, 021076 W/E - Coat Finish
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 180126

Bolt-Hex .38-16 x 1.50 Pl Gr. 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 456004

Nut-Lock-Nylon .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 065274

Clip, U - Type Easton #C17453-1420
(Superseded to 06527400)

$

$

Not available

9

Gravely 120378

Nut, .50-13 Pl
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

Washer-Flat Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011779

Spring-Compression .188 x 1.66 x 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 035690

Rod, Height Adjustment
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 023468

Pin Klik 1.00 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 083165

Spring, Compression .095 x .75 x 6.25 Wld 35
(Superseded to 08316500)

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 053180

Wheel, Gage 11 x 4 - 4
(Superseded to 09105800)

$136.99

$

Usually ships in 4-12 days

0

16

091052

Bushing, Caster Fork

$

$

Not available

17

Gravely 189315

Bolt-Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

18

Gravely 435507

Nut-Lock-Nylon .50 - 13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 018355

Bushing-Flange 1.020 x 1.75 x .75 Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

20

Gravely 091050

Weldment, Caster Fork
(Superseded to 09114200)

$256.99

$

Usually ships in 4-12 days

0

21

Gravely 411027

Fitting, Lube; .25-28 Self-Thread
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

Bearing-R-thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 067021

Pin-Cotter .12 x 1.25 Pl
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 271547

Bolt-Hex .625 - 11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 418692

Nut, Lock 5/8-11 Hex W/Insr
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 091049

Weldment, Mower Frame Mounting
(Superseded to 09104900)

$

$

Not available
