991003 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 - 000173) 40" Mower Drive Parts Diagram

Pro-Master 40" Zero-Turn Mower, 16hp Briggs & Stratton

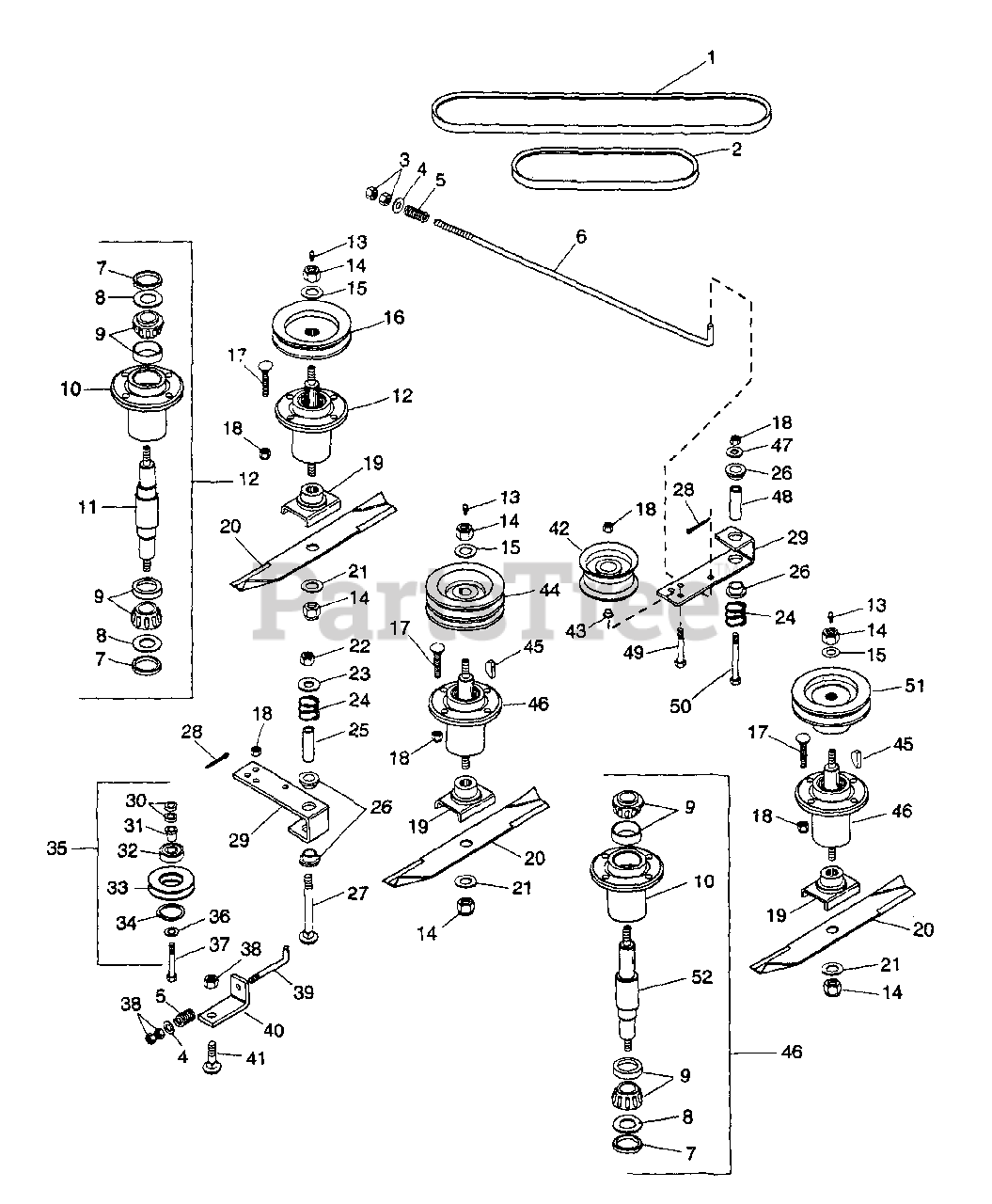

40" Mower Drive Parts Diagram

  • Title

1

Gravely 072254

V-Belt A-RMA 48.00 x .516/.031
(Superseded to 07225400)

$

$

Not available

2

072255

V-Belt A-RMA 40.60 x .516/.031

$

$

Not available

3

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 011779

Spring-Compression .188 x 1.66 x 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 1 left!

0

6

Gravely 091098

Rod, Idler 25.0 Long
(Superseded to 09109800)

$74.99

$

Usually ships in 4-12 days

0

7

Gravely 021211

Seal-Steel
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

8

Gravely 020743

Washer-Flat-Steel .97 x 1.865 x .03
(Superseded to 06426900)

$5.99

$

In Stock, Qty 9

0

9

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$26.99

$

In Stock, Qty 20+

0

10

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

11

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

12

Gravely 021306

Spindle, Assembly
(Superseded to 58803600)

$267.99

$

In Stock, only 1 left!

0

13

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 418692

Nut, Lock 5/8-11 Hex W/Insr
(Superseded to 06540700)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .135
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 043366

Sheave, Spindle
(Superseded to 08896000)

$89.99

$

In Stock, only 1 left!

0

17

Gravely 126406

Bolt-Carriage .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 456004

Nut-Lock-Nylon .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

20

Gravely 014668

Blade
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

21

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095 Pl
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 414074

Nut-Lock .50-13 Hex Type N
(Superseded to 06500827)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

24

Gravely 020444

Spring-Compression
(Superseded to 08329100)

$13.99

$

Usually ships in 4-12 days

0

25

Gravely 034119

Bushing, Steel .560 x .750 x 2.44
(Superseded to 08820500)

$18.99

$

In Stock, only 1 left!

0

26

Gravely 049669

Bushing-Flange .762 x 1.0 x .580 x 1.48 NY

$

$

Not available

27

Gravely 126803

Bolt-Carriage .50-13 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

28

Gravely 121222

Pin-Cotter .09 x .75 Pl
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

29

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

30

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

31

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$

$

Not available

33

Gravely 038896

Sheave Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

34

Gravely 018960

Snap Ring - Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

36

Gravely 446470

Washer, Flat .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

37

Gravely 180130

Bolt-Hex .38-16 x 2.00 Pl Gr. 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

38

Gravely 419455

Nut-Lock-Nylon .312-19 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

40

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

41

Gravely 126358

Bolt-Carriage .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 034286

Idler-Flat 4-.687 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

43

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

44

Gravely 091097

Sheave. Spindle (Center)
(Superseded to 09109700)

Note: (Center)

$284.99

$

Usually ships in 4-12 days

0

45

Gravely 124553

Key, Woodruff 1/4 x 1 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

46

Gravely 034605

Assembly, Spindle
(Superseded to 58803600)

$267.99

$

In Stock, only 1 left!

0

47

Gravely 120388

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 034938

Bushing, Steel .437 x .750 x 2.44 St
(Superseded to 08818500)

$

$

Not available

49

Gravely 180132

Bolt-Hex.38-16 x 2.25 Gr.5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

50

Gravely 189304

Bolt-Hex .38-16 x 3.25 Pl Gr. 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

51

Gravely 091096

Sheave, Spindle (L.H.)
(Superseded to 09109600)

Note: (L.H.)

$31.99

$

Usually ships in 4-12 days

0

52

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0
