991002 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 001995 & Above) TRACTION DRIVE LINKAGE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

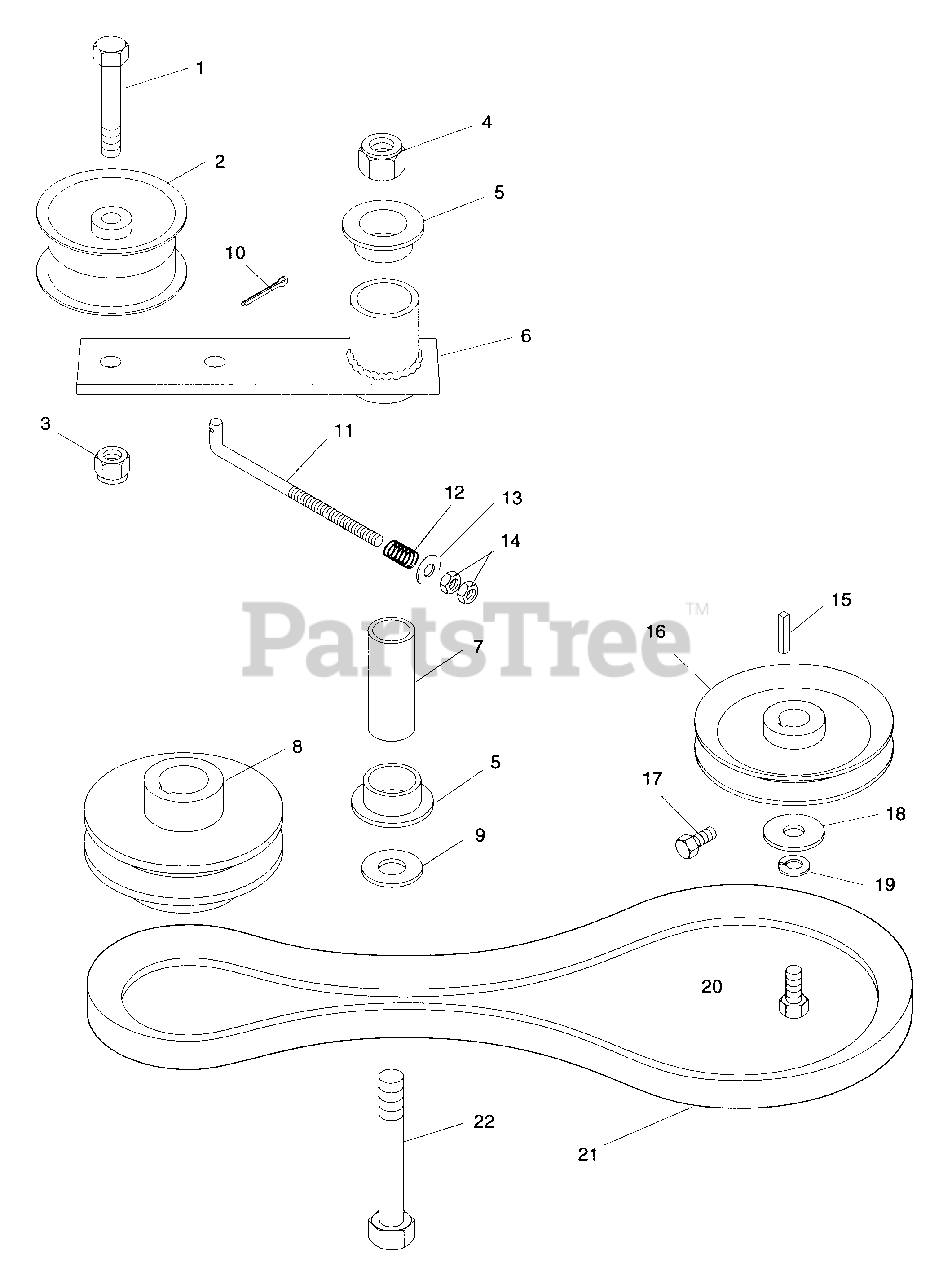

TRACTION DRIVE LINKAGE Parts Diagram

  • Title
1

Gravely 180128

Blt - Hex .38 - 16 x 1.75 Pl Gr 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 052062

Idler - Ply
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

3

Gravely 456004

Nut - Lk - Nyl .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 435507

Nut - Lk - Nyl .50 - 13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 010174

Bshg - Flg .762 x 1.0 x .580 x 1.48 Ny
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 051134

Wldmt, Ground Drive Idler
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

Bush., 5.560 x.745 x 2.04 St
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

8

Gravely 051137

Sheave, Eng Ground Drive
(Superseded to 08844500)

$136.99

$

Usually ships in 4-12 days

0

9

Gravely 120396

Wshr - Fl - Stl .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 121222

Pin - Cotr .09 x .75 Pl
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

11

Gravely 052661

Rod, Idler
(Superseded to 08879300)

$77.99

$

Usually ships in 4-12 days

0

12

Gravely 011779

Sg - Comp .188 x 1.66 x 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 120394

Wshr - Fl - Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120369

Nut - Hex .375 x 24 ZC
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 050995

Key - Str 5mm x 25 mm x 5 mm
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 051138

Sheave, Hyd Pump
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

17

Gravely 180016

Blt - Hex .25 x 20 x .50 Pl Gr 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 012694

Wshr - Fl - Stl .281 x 1.250 x .062 Pl
(Superseded to 06403700)

$

$

Not available

19

Gravely 120380

Wshr - Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 050996

Blt - Hex M6 x 1.0 x 12 mm Lg
(Superseded to 05969800)

$1.99

$

In Stock, Qty 14

0

21

Gravely 051141

V-Belt Eng To Pump
(Superseded to 07223100)

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 180190

Blt - Hex .50 - 13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0
