991002 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 001995 & Above) 40" MOWER FRAME 1 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

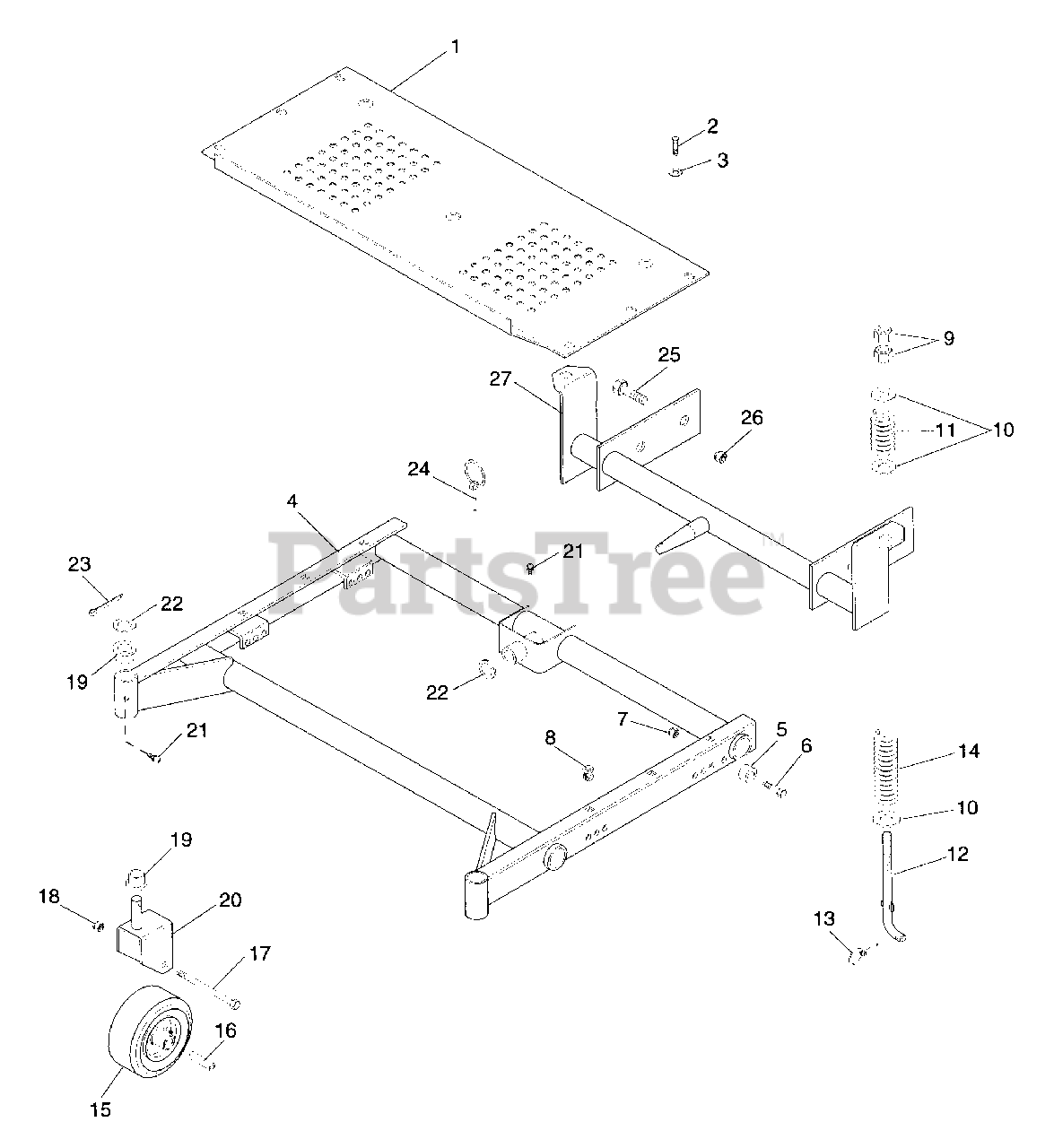

40" MOWER FRAME 1 Parts Diagram

  • Title

1

91095

Footboard

$

$

Not available

2

Gravely 160541

Scr-Mch .25-20 Pan Hd
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 120392

Wshr-Fl-Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

91090

Wldmt, Mwr Frame 40" 3 Spndl

$

$

Not available

5

Gravely 050396

Bush., 021076 W/E - Coat Finish
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 180126

Blt-Hex .38 - 16 x 1.50 Pl Gr 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 456004

Nut-Lk-Nyl .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

65274

Clip, U - Type Eaton #C17453-1420

$

$

Not available

9

Gravely 120378

Nut, 50 - 13 Pl
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

Wshr-FI-Stl .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 035690

Rod, Height Adj.
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

14

83165

Sg.-Comp .095 x .75 x 6.25 Wld 35

$

$

Not available

15

Gravely 053180

Whl, Ga 11 x 4 - 4
(Superseded to 09105800)

$136.99

$

Usually ships in 4-12 days

0

16

Gravely 91052

Bush., Caster Fork
(Superseded to 09105200)

$37.99

$

In Stock, only 3 left!

0

17

Gravely 189315

Blt-Hex .50 - 13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

18

Gravely 435507

Nut-Lk-Nyl .50 - 13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 018355

Bshg-Flg 1.020 x 1.75 x .75 Nyl
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

20

91050

Wldmt, Caster Fork

$

$

Not available

21

Gravely 411027

Ftg, Lube, .25 - 28 Self-Thread
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

Brg-R-Thrst 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

23

67021

Pin-Cotr .12 x 1.25 Pl

$

$

Not available

24

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 271547

Blt-Hex .625 - 11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 418692

Nut, Lk 5/8 - 11 Hex W/Insr
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

27

91049

Wldmt, Mwr Frame Mtg

$

$

Not available
