991002 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 - 001994) Steering & Direction Controls Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

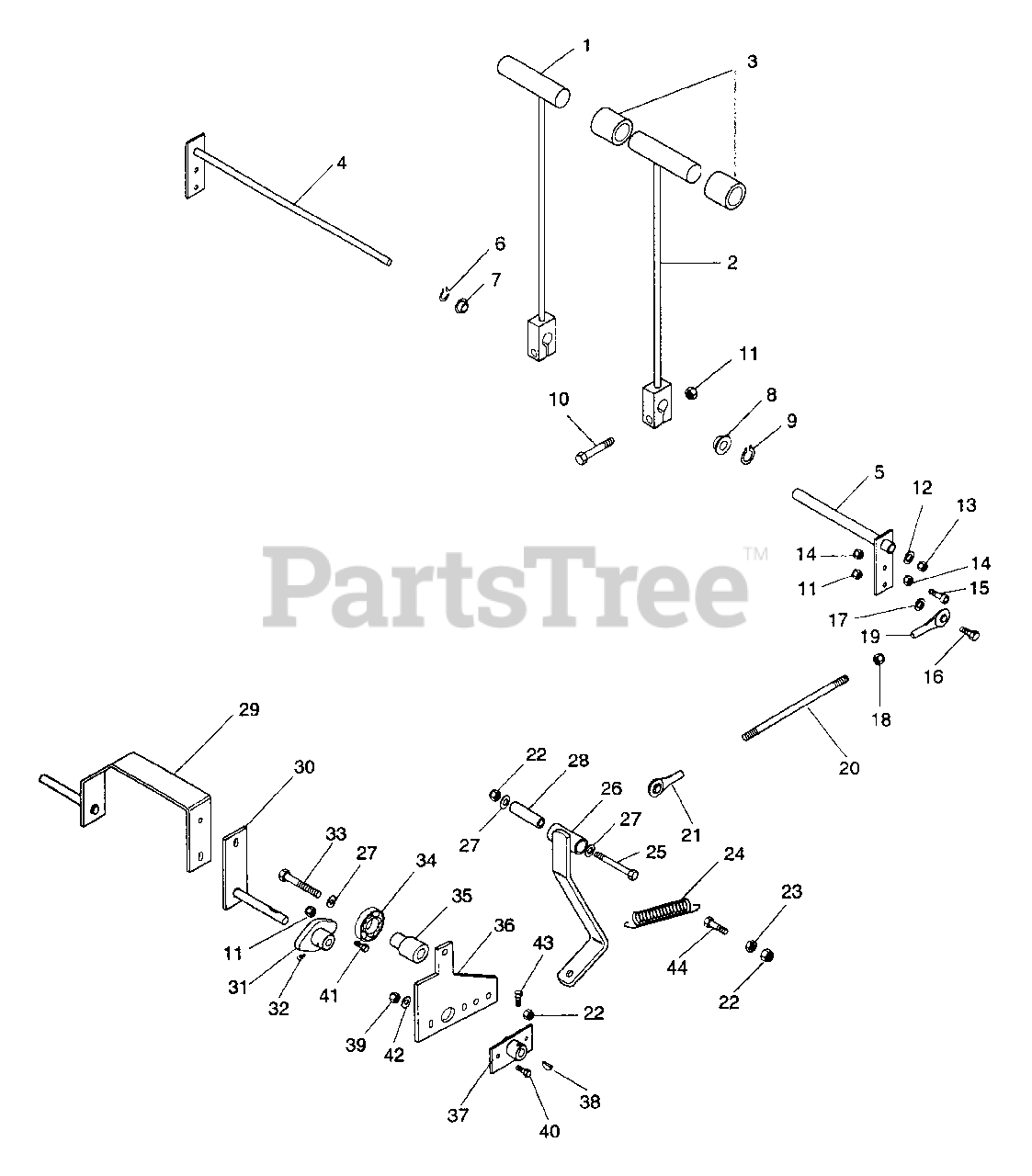

Steering & Direction Controls Parts Diagram

  • Title

1

Gravely 091027

Weldment, Steering Lever L.H.
(Superseded to 09102700)

$

$

Not available

2

Gravely 091026

Weldment, Steering Lever R.H.
(Superseded to 09102600)

$

$

Not available

3

Gravely 091085

Grip, T-Bar
(Superseded to 09108500)

$

$

Not available

4

Gravely 091025

Weldment, Steering L.H.
(Superseded to 09102500)

$

$

Not available

5

Gravely 091024

Weldment, Steering Tube R.H.
(Superseded to 09102400)

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 053329

Ring, Retaining
(Superseded to 05717100)

$2.49

$

In Stock, Qty 8

0

7

Gravely 034738

Bushing, Flange .515 x 1.00 x .745 Nylon
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 180083

Bolt-Hex .31-18 x 1.50 PL Gr. 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Gravely 419455

Nut-Lock-Nylon .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 435507

Nut-Lock Nylon .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 120376

Nut-Hex .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Gravely 274550

Screw-Set .32-18 x 1.50 Skhcup
(Superseded to 06003400)

$

$

Not available

16

Gravely 059069

Bolt-Hex .31-18 x 1.25 PL Gr. 2
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

17

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06503100

Nut - 5/16-24, Hex, Plated
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 045002

Rod End 5/16 Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

20

Gravely 091053

Rod, Steering Adjustment
(Superseded to 09105300)

$

$

Not available

21

Gravely 053366

Rod End, 5/16 - 24 L.H. Female
(Superseded to 09107800)

$

$

Not available

22

Gravely 456004

Nut-Lock-Nylon .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 051233

Spring, Tension
(Superseded to 08345500)

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 180137

Bolt-Hex .38-16 x 2.75 Pl Gr. 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

26

Gravely 091074

Weldment, Neutral Detent
(Superseded to 09107400)

$

$

Not available

27

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 049022

Bushing.385 x .610 x 1.80
(Superseded to 08831500)

$5.99

$

In Stock, only 2 left!

0

29

Gravely 052682

Weldment, Pump Control R.H.
(Superseded to 08848400)

$

$

Not available

30

Gravely 052683

Weldment, Pump Control L. H.
(Superseded to 08848500)

$109.99

$

Usually ships in 4-12 days

0

31

Gravely 052631

Bushing, Flange Support
(Superseded to 01522000)

$34.99

$

In Stock, only 1 left!

0

32

Gravely 411027

Fitting-Lube .25-28 Self-Thread
(Superseded to 07012600)

$

$

Not available

33

Gravely 180130

Bolt-Hex .38-16 x 2.00 PL Gr. 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

34

Gravely 054079

Bearing-Ball .500 x 1.375 x .437
(Superseded to 05408000)

$5.99

$

In Stock, Qty 20+

0

35

Gravely 091072

Hub, Bearing Mount
(Superseded to 09107200)

$

$

Not available

36

Gravely 091031

Arm-Speed Control
(Superseded to 01539700)

$26.99

$

Usually ships in 4-12 days

0

37

Gravely 052203

Weldment, Neutral Adjustment
(Superseded to 01525500)

$20.99

$

Usually ships in 4-12 days

0

38

Gravely 124547

Key, Woodruff 1/8 x 3/4
(Superseded to 06608600)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 419454

Nut-Lock-Nylon .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

40

Gravely 180020

Bolt-Hex .25-20 x .75 Pl Gr. 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 180079

Bolt-Hex .31-18 x 1.00 PL Gr. 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 050365

Washer-Flat-Steel .281 x .62 x .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 180016

Bolt-hex .25-25 x .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 180123

Bolt-Hex .38-16 x 1.125

$

$

Not available
