991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000217 & Above) STEERING & DIRECTION CONTROLS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

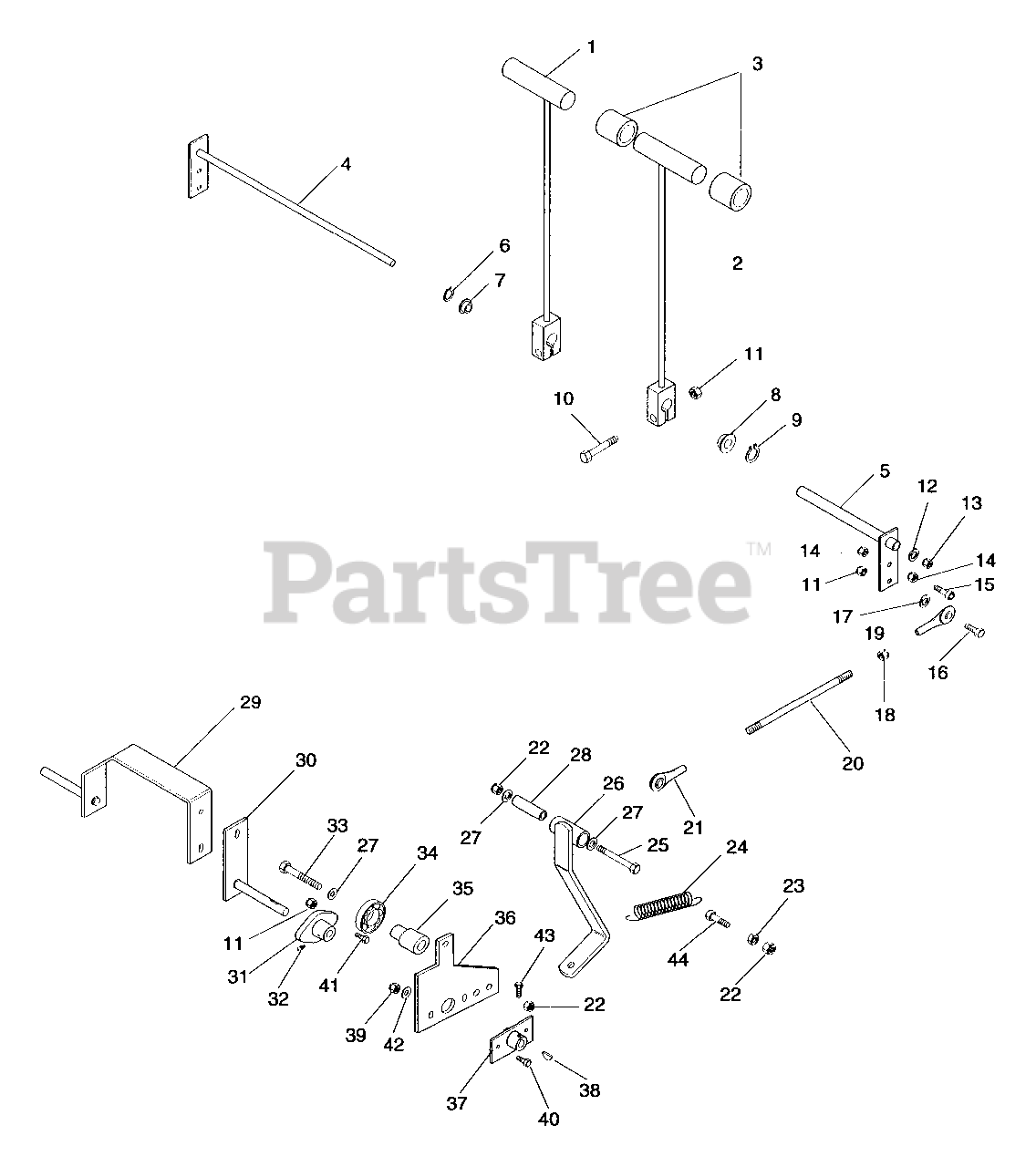

STEERING & DIRECTION CONTROLS Parts Diagram

  • Title

1

91027

Wldmt, Steering Lever L.H.

$

$

Not available

2

91026

Wldmt, Steering Lever R.H.

$

$

Not available

3

91085

Grip, T-Bar

$

$

Not available

4

91025

Wldmt, Steering L.H.

$

$

Not available

5

91024

Wldmt, Steering Tube R.H.

$

$

Not available

6

Gravely 053329

Rg, Retaining
(Superseded to 05717100)

$2.49

$

In Stock, Qty 8

0

7

Gravely 034738

Bush, F .515 x 1.00 x .745 Ny
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 010174

Bshg-Flg .762 x 1.0 x .580 x 1.48 Ny
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 026300

Rg-Rtng-Ext .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 180083

Blt-Hex .31 - 18 x 1.50 Pl Gr 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

11

Gravely 419455

Nut-Lk-Nyl .312 - 18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 120396

Wshr-Fl-Stl .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 435507

Nut-Lk-Nyl .50 - 13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 120376

Nut Hex .312 - 18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Gravely 274550

Scr-Set .32-18 x 1.50 Skhcup
(Superseded to 06003400)

$

$

Not available

16

59069

Blt - Hex .31 - 18 x 1.25 Pl Gr 2

$

$

Not available

17

64123

Wshr-Fl-Stl .344 x .688 x .065 Pl

$

$

Not available

18

65031

Nut .312-18 Pl

$

$

Not available

19

Gravely 045002

Rod End, 5/16" Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

20

91053

Rod, Steering Adj

$

$

Not available

21

Gravely 053366

Rod End, 5/16 - 24 LH Female
(Superseded to 09107800)

$

$

Not available

22

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 120377

Nut-Hex .375 - 16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 051233

Sprg, Ext Le - 063F-5
(Superseded to 08345500)

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 180137

Blt-Hex.38-16 x 2.75 Pl Gr 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

26

91074

Wldmt, Neutral Detent

$

$

Not available

27

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 049022

Bush., S .385 x .610 x 1.80 ST
(Superseded to 08831500)

$5.99

$

In Stock, only 2 left!

0

29

Gravely 052682

Wldmt, Pump Control R.H.
(Superseded to 08848400)

$

$

Not available

30

Gravely 052683

Wldmt, Pump Control L.H.
(Superseded to 08848500)

$109.99

$

Usually ships in 4-12 days

0

31

Gravely 052631

Bush., Flanged Support
(Superseded to 01522000)

$34.99

$

In Stock, only 1 left!

0

32

Gravely 411027

Ftg, Lube, 25 - 28 Self-Thread
(Superseded to 07012600)

$

$

Not available

33

Gravely 180130

Blt-Hex .38 - 16 x 2.00 Pl Gr 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

34

54079

Brg-Ball .500 x 1.375 x .437

$

$

Not available

35

91072

Hub, Brg. Mount

$

$

Not available

36

91031

Arm-Speed Control

$

$

Not available

37

Gravely 052203

Wldmt, Neutral Adj
(Superseded to 01525500)

$20.99

$

Usually ships in 4-12 days

0

38

Gravely 124547

Key, Woodruff 1/8 x 3/4
(Superseded to 06608600)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 419454

Nut-Lk-Nyl .250 - 20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

40

Gravely 180020

Blt-Hex .25 - 20 x .75 Pl Grs
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 180079

Blt-Hex .31-18 x 1.00 Pl Gr 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

42

50365

Wshr-Fl-Stl .281 x .62 x .065 Pl

$

$

Not available

43

Gravely 180016

Bolt Hex 1/4 - 20 x .50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 180123

Blt-Hex .38 - 16 x 1.125

$

$

Not available
