991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000217 & Above) 40" MOWER FRAME 2 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

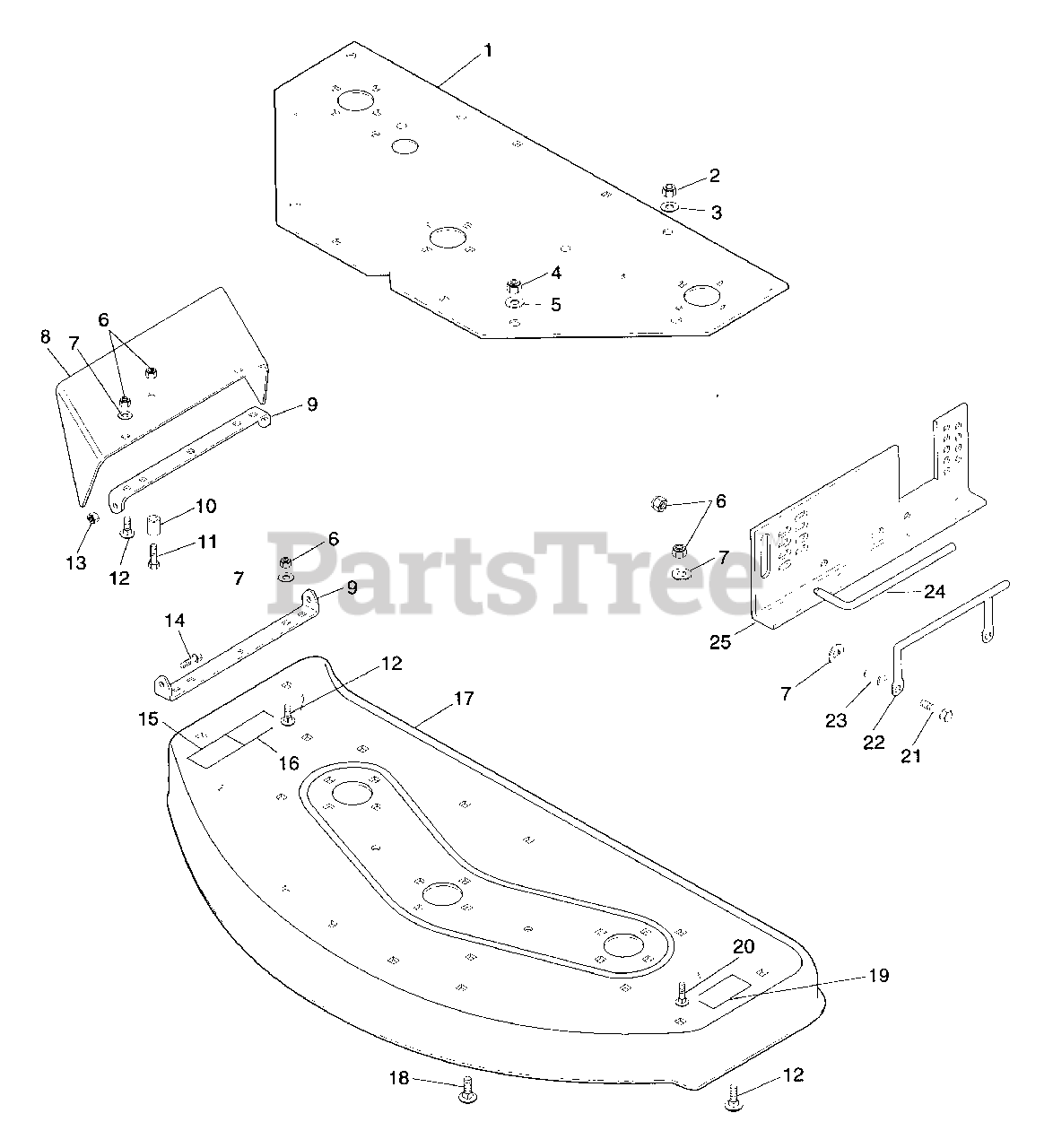

40" MOWER FRAME 2 Parts Diagram

  • Title
1

Gravely 040531

Plt, Support
(Superseded to 08542100)

$175.99

$

Usually ships in 4-12 days

0

2

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

64214

Wshr-Fl-Stl .328 x 1.0 x .094 Pl

$

$

Not available

4

Gravely 435507

Nut-Lk-Nyl .50-13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 415543

Wshr-Fl-Stl .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

6

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 120344

Wshr-Fl-Stl .406 x .812 x .065

$

$

Not available

8

38697

Chute, 40" Flip-Up

$

$

Not available

9

45664

Brkt, Chute 40" Mower

$

$

Not available

10

Gravely 038696

Bshg-Slv .407 x .625 x .750 Pl
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

11

Gravely 180126

Blt-Hex .28-16 x 1.50 91 Gr 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Gravely 120915

Blt-Rdhdsqnk .38-16 x 1.0 Pl

$

$

Not available

13

Gravely 103422

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 180021

Blt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

15

53502

Decal, Warning Eye

$

$

Not available

16

53503

Decal, Danger Hand

$

$

Not available

17

91099

Wldm't, 40" Deck 3-Spndl

$

$

Not available

18

Gravely 126475

Blt-Rdhdsqnk 50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

19

53501

Decal, Danger Foot

$

$

Not available

20

Gravely 126216

Blt-5/16-18 x Rdhdsqnk .75

$

$

Not available

21

Gravely 180128

Blt-Hex .38-16 x 1.75 Pl Gr 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

23

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

24

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

25

91092

Brkt, Mwr Side Support (L.H.)

Note: (L.H.)

$

$

Not available

91091

Brkt, Mwr Side Support (R.H.)

Note: (R.H.)

$

$

Not available
