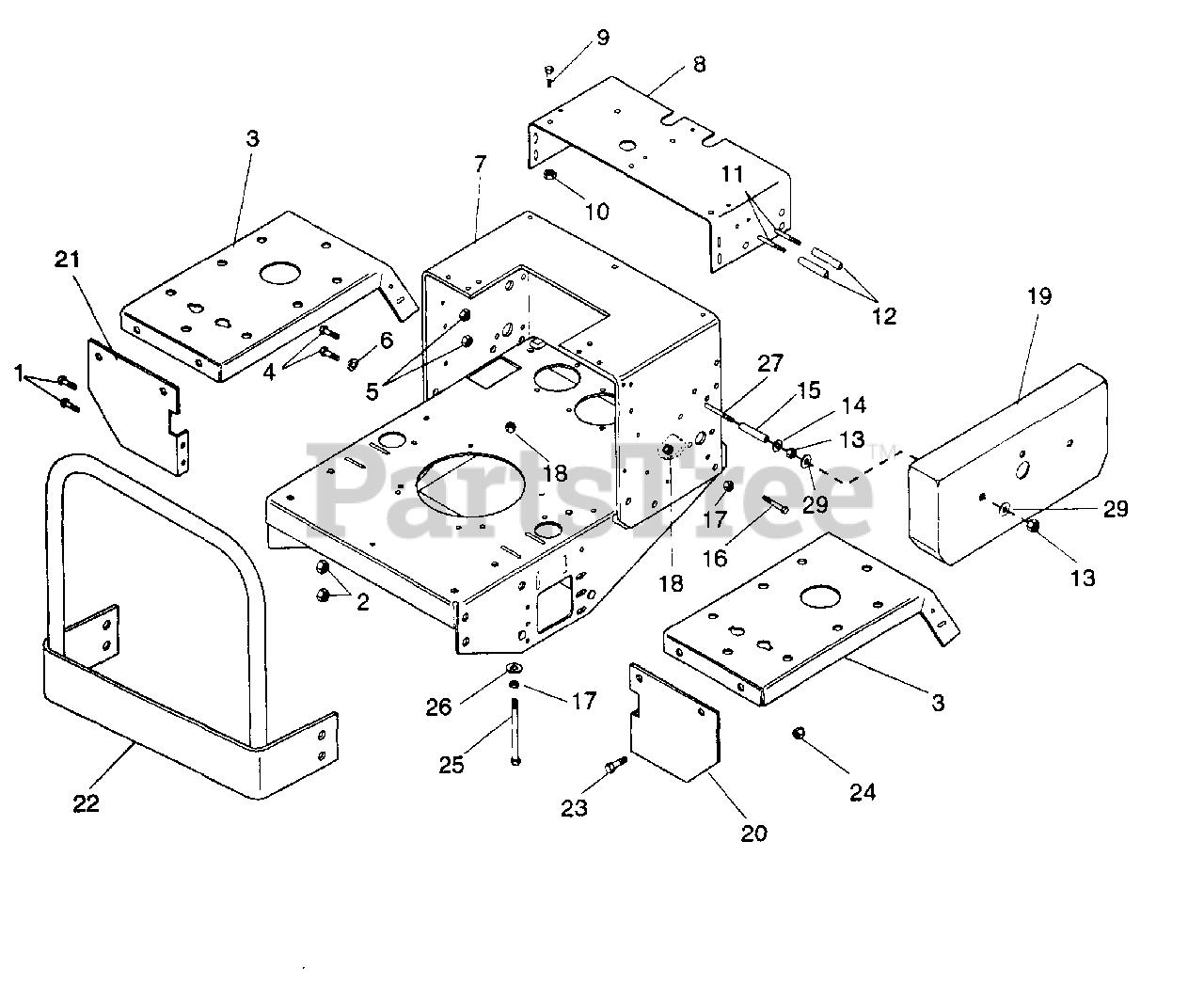

991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000101 - 000216) Frame Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

Frame Parts Diagram

  • Title

1

Gravely 180124

Bolt-Hex .38-16 x 1.25 PL GR. 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 456004

Nut-Lock-Nylon .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

3

091032

Fender

$

$

Not available

4

Gravely 180020

Bolt-Hex .25-20 x .75 PL
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419454

Nut-Lock-Nylon .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 091030

Weldment, Frame PM 100
(Superseded to 09103000)

$

$

Not available

8

Gravely 091080

Panel, Silkscreen
(Superseded to 59100400)

$

$

Not available

9

Gravely 180122

Bolt-Hex .38-16 x 1.00 PL Gr. 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 456004

Nut-lock-Nylon .375 - 16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

11

059282

Bolt-Hex 5/16 - 18 x 3.75

$

$

Not available

12

Gravely 091083

Spacer .328 x .462 x 2.75
(Superseded to 09108300)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 419455

Nut-Lock-Nylon .312 - 18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 064123

Washer-Flat Steel .344 x .688 x .065 PL
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 091084

Spacer, .328 x .462 x 2.50 LG
(Superseded to 09108400)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 180138

Bolt-Hex .38 - 16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 120377

Nut, Hex .375 - 16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 456004

Nut-lock-nylon .375 - 16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 091082

Guard Linkage
(Superseded to 09108200)

$

$

Not available

20

Gravely 091070

Support, Fender R. H.
(Superseded to 09107000)

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 091071

Support, Fender L.H.
(Superseded to 09107100)

$

$

Not available

22

Gravely 091076

Weldment, Rear Guard
(Superseded to 09107600)

$

$

Not available

23

Gravely 180077

Bolt-Hex .31-18 x .75 PL Gr. 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 419455

Nut-Lock-Nylon .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 191163

Bolt-Hex .38-16 x 4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 064293

Washer-Flat-Steel .406x.812x.065

$

$

Not available

27

059101

Bolt, Hex 5/16-18 x 3.75

$

$

Not available

28

Gravely 078459

Decal, Promaster 100
(Superseded to 07845900)

$

$

Not available

29

Gravely 446354

Washer-Flat-Steel .313 x .875x.065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0
