991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000101 - 000216) 50" Mower Frame 1 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

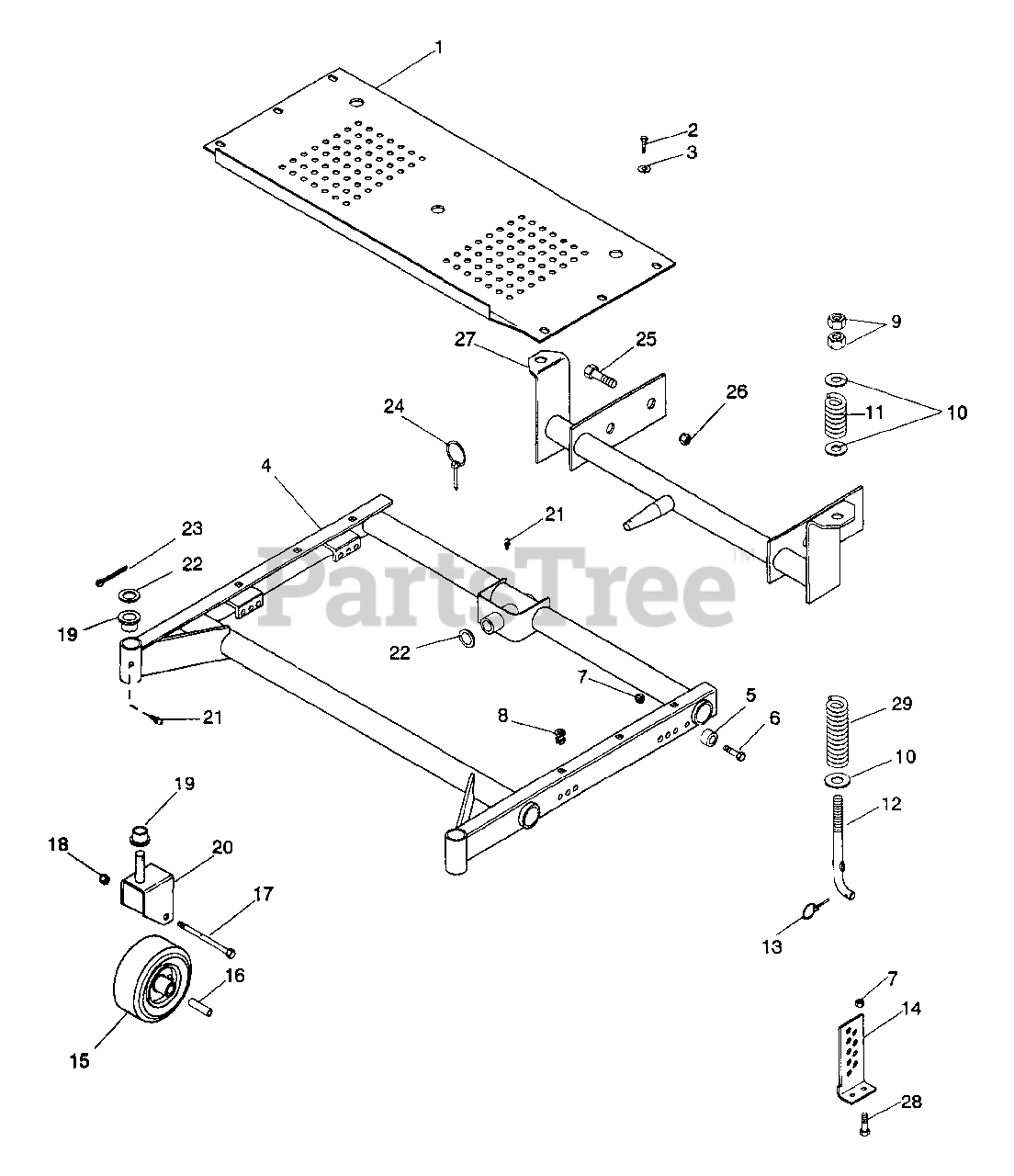

50" Mower Frame 1 Parts Diagram

  • Title

1

Gravely 091059

Footboard
(Superseded to 09105900)

$

$

Not available

2

Gravely 160541

Screw-Machine .25-20 Pan Head
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 091014

Weldment, Mower Frame

$

$

Not available

5

Gravely 050396

Bushing, 021076 W/E-Coat Finish
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 180126

Bolt-Hex .38-16 x 1.50 Pl Gr. 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

7

Gravely 456004

Nut-Lock-Nylon .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 065274

Clip, U-Type Easton #C17453-1420
(Superseded to 06527400)

$

$

Not available

9

Gravely 120378

Nut, 50-13 Pl
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011779

Spring-Compression .188 x 1.66 x 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 035690

Rod, Height Adjustment
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 023468

Pin-Kilk 1.00 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 091056

Bracket, Rear Adjustment R.H.
(Superseded to 09105600)

$

$

Not available

14

Gravely 091057

Bracket, Rear Adjustment L.H.
(Superseded to 09105700)

$

$

Not available

15

Gravely 053180

Wheel, Gage 11 x 4 - 4
(Superseded to 09105800)

$136.99

$

Usually ships in 4-12 days

0

16

091052

Bushing, Caster Fork

$

$

Not available

17

Gravely 189315

Bolt-Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

18

Gravely 435507

Nut-Lock-Nylon .50-13 Pl
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 018355

Bushing-Flange 1.020 x 1.75 x .75 Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

20

Gravely 091050

Weldment, Caster Fork
(Superseded to 09114200)

$256.99

$

Usually ships in 4-12 days

0

21

Gravely 411027

Fitting, Lube .25-28 Self-thread
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

Bearing-R-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

23

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

24

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 271547

Bolt-Hex .625 - 11 x 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 418692

Nut, Lock 5/8 - 11 Hex W/Insr
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 091049

Weldment, Mower Frame Mounting
(Superseded to 09104900)

$

$

Not available

28

Gravely 126227

Bolt-Carriage .38 - 16 x .75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

29

Gravely 083165

Spring-Compression .095 x .75 x 6.25 Wld 35
(Superseded to 08316500)

$9.49

$

Usually ships in 4-12 days

0
