990996 - Homelite 42" Snow Thrower Attachment Body, Rotor and Drive Group (3496I01) Parts Diagram

42" Snow Thrower Attachment

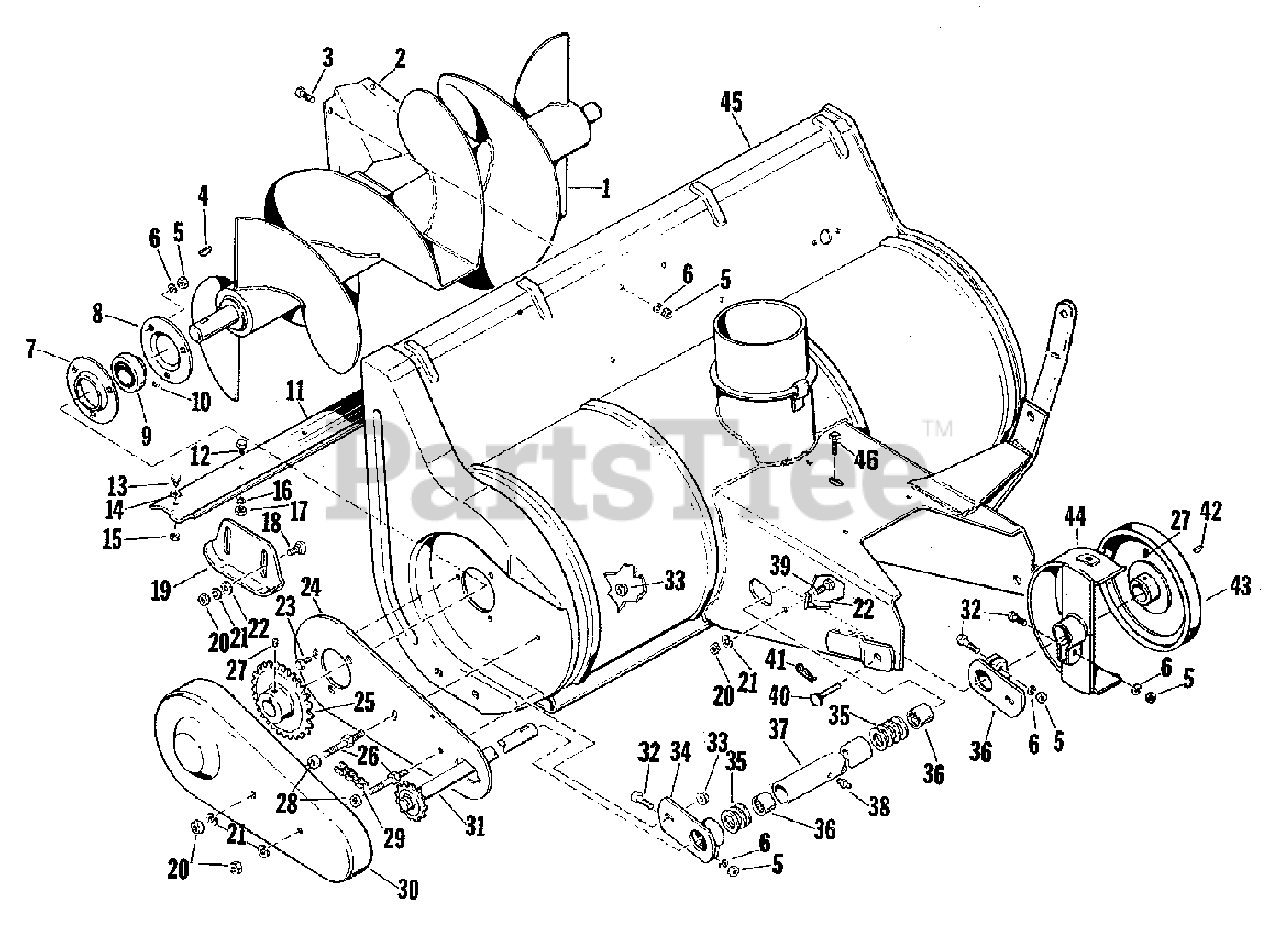

Body, Rotor and Drive Group (3496I01) Parts Diagram

  • Title

1

Simplicity LM-01068-56

ROTOR ASSEMBLY, 36"

$

$

Not available

1

Simplicity LM-01067-48

ROTOR ASSEMBLY, 42"

$

$

Not available

2

Simplicity LM-01067-74

DEFLECTOR

$

$

Not available

3

Simplicity LM-09193-18

SCREW, Hex Cap, 5/16-18 x 5/8

$

$

Not available

4

Simplicity LM-01510-40

KEY, Hi-Pro

$

$

Not available

5

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

6

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

7

Simplicity LM-01722-78

FLANGE, Bearing

$

$

Not available

8

Simplicity LM-01722-79

FLANGE, Bearing

$

$

Not available

9

Simplicity LM-01739-34

BEARING, Cartridge

$

$

Not available

10

Simplicity LM-09286-92

SCREW, Set, 1/4-28 x 1-4

$

$

Not available

11

Simplicity LM-01068-63

SCRAPER, Body

$

$

Not available

11

Simplicity LM-01067-46

SCRAPER, Body

$

$

Not available

12

Simplicity LM-09219-59

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

12

Simplicity LM-09218-59

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

13

Simplicity LM-09252-05

SCREW, Hex Cap, 5/16-18 x 5/8

$

$

Not available

14

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

15

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

16

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

16

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

17

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

17

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

18

Simplicity LM-09221-10

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

19

Simplicity LM-01067-47

SKID

$

$

Not available

20

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

21

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

22

Simplicity LM-09173-78

WASHER, Flat, 3/8"

$

$

Not available

23

Simplicity LM-09173-97

SCREW, Hex Cap, 5/16-18 x 3/4

$

$

Not available

24

Simplicity LM-01712-21

PLATE, Side

$

$

Not available

25

Simplicity LM-01066-53

SPROCKET, Rotor

$

$

Not available

26

Simplicity LM-01067-71

STUD

$

$

Not available

27

Simplicity LM-09117-12

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

28

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

29

Simplicity LM-01712-42

CHAIN, With Connector Link

$

$

Not available

30

Simplicity LM-01712-20

GUARD, Chain

$

$

Not available

31

Simplicity LM-01068-60

SHAFT ASSEMBLY, 36"

$

$

Not available

31

Simplicity LM-01067-57

SHAFT ASSEMBLY, 42"

$

$

Not available

32

Simplicity LM-09199-33

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

33

Simplicity LM-09283-52

NUT, Flange "Whiz Lock" 3/8-16

$

$

Not available

34

Simplicity LM-01064-76

SUPPORT ASSEMBLY, Clamp

$

$

Not available

35

Simplicity LM-80610-12

WASHER, Flat

$

$

Not available

36

Simplicity LM-01542-58

BEARING, Needle

$

$

Not available

37

Simplicity LM-01068-64

HOUSING, Bearing

$

$

Not available

37

Simplicity LM-01067-56

HOUSING, Bearing

$

$

Not available

38

Simplicity LM-09128-08

FITTING, Grease, 1/4-28

$

$

Not available

39

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

40

Simplicity LM-01180-53

PIN, Round Head, 3/8 x 2

$

$

Not available

41

Simplicity LM-09181-96

PIN, Quick

$

$

Not available

42

Simplicity LM-09051-23

KEY, Woodruff, #9

$

$

Not available

43

Simplicity LM-01712-48

SHEAVE

$

$

Not available

44

Simplicity LM-01712-11

GUARD ASSEMBLY, Belt

$

$

Not available

45

Simplicity LM-16066-66

BODY ASSEMBLY, 36"

$

$

Not available

45

Simplicity LM-16074-77

BODY ASSEMBLY, 42"

$

$

Not available

46

Simplicity LM-09248-56

SCREW, Cap, Taptite, 5/16-18 x 1/2

$

$

Not available
