990986 - Homelite Tiller Attachment Transmission Group (3845I01) Parts Diagram

Tiller Attachment

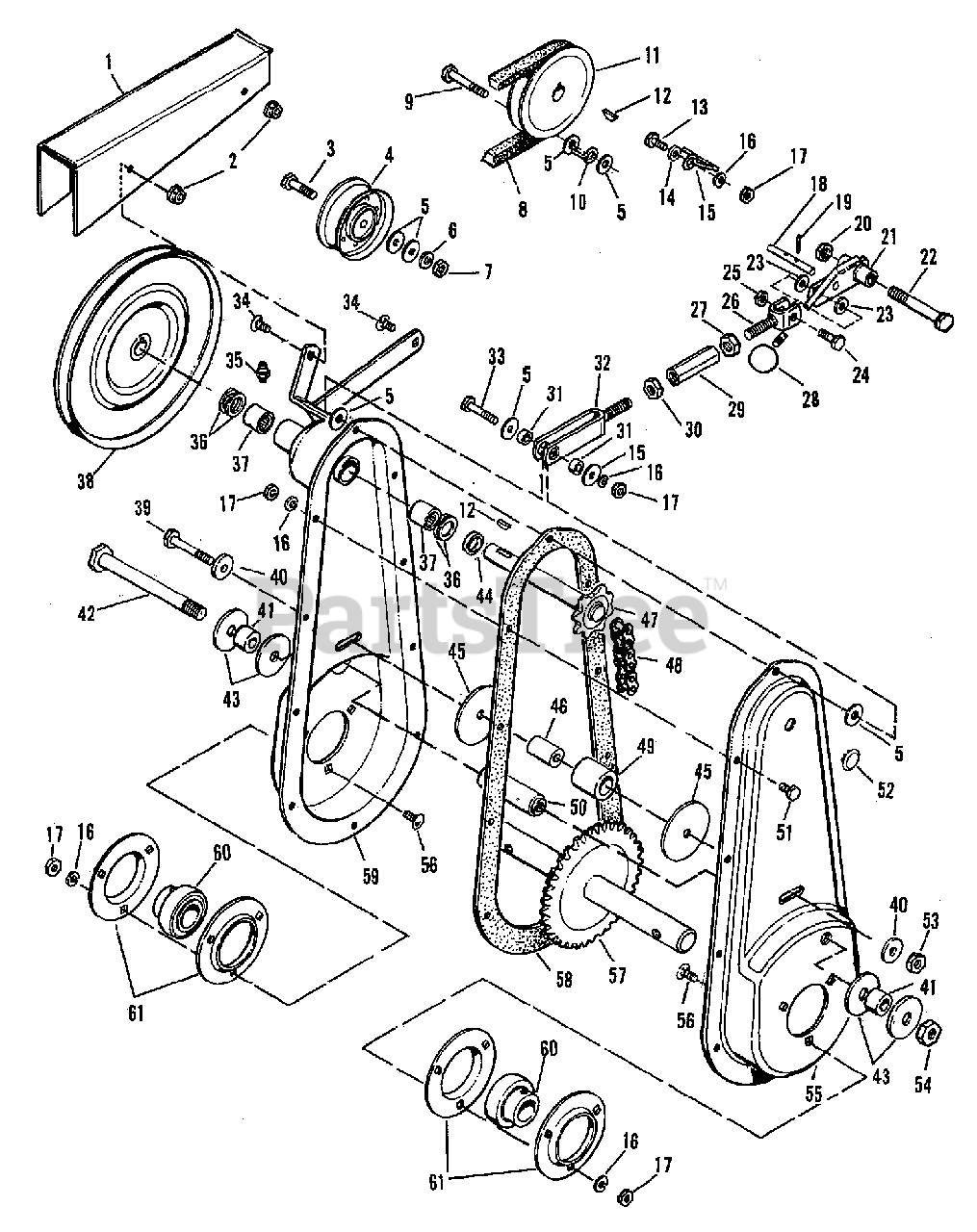

Transmission Group (3845I01) Parts Diagram

  • Title

1

Simplicity LM-01053-26

BELT GUARD

$

$

Not available

2

Simplicity LM-09275-57

NUT, Whiz Lock, 5/16-18

$

$

Not available

3

Simplicity LM-09174-00

SCRWE, hex, 3/8-16 x 1-1/4

$

$

Not available

4

Simplicity LM-01561-24

IDLER PULLEY

$

$

Not available

5

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

6

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

7

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

8

Simplicity LM-01085-05

BELT, "V"

$

$

Not available

9

Simplicity LM-09193-61

SCREW, Hex Head, 3/8-16 x 1-3/4

$

$

Not available

10

Simplicity LM-01703-97

STOP, Belt

$

$

Not available

11

Simplicity LM-01703-95

PULLEY, Drive

$

$

Not available

12

Simplicity LM-09051-23

KEY, Woodruff, 3/16-3/4

$

$

Not available

13

Simplicity LM-09173-97

SCREW, Hex, Head, 5/16-18 x 3/4

$

$

Not available

14

Simplicity LM-09173-77

WASHER, Plain, 1/4"

$

$

Not available

15

Simplicity LM-01703-96

STOP, Belt

$

$

Not available

16

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

17

Simplicity LM-09173-72

NUT, Lock, 5/16-18

$

$

Not available

18

Simplicity LM-01702-48

STOP, Pin

$

$

Not available

19

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

20

Simplicity LM-09240-58

NUT, Hex, Lock, 7/16-14

$

$

Not available

21

Simplicity LM-16074-10

CLUTCH LEVER ASSEMBLY

$

$

Not available

22

Simplicity LM-09232-98

SCREW, Hex Head, 7/16-14 x 2-3/4

$

$

Not available

23

Simplicity LM-01661-61

WASHER

$

$

Not available

24

Simplicity LM-09164-31

SCREW, Hex Head, 5/16-18 x 1

$

$

Not available

25

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

26

Simplicity LM-01702-41

CLEVIS ASSEMBLY, L.H.

$

$

Not available

27

Simplicity LM-09254-76

NUT, Hex Lock, 7/16-14, L.H. Thread

$

$

Not available

28

Simplicity LM-01220-05

KNOB

$

$

Not available

29

Simplicity LM-01660-88

TURNBUCKLE

$

$

Not available

30

Simplicity LM-09220-07

NUT, Hex, Lock, 7/16-14

$

$

Not available

31

Simplicity LM-01561-50

SPACER

$

$

Not available

32

Simplicity LM-01702-44

YOKE ASSEMBLY, R.H.

$

$

Not available

33

Simplicity LM-09212-21

SCREW, Hex Head, 5/16-18 x 1-1/2

$

$

Not available

34

Simplicity LM-09205-62

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

35

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

36

Simplicity LM-01530-79

WASHER

$

$

Not available

37

Simplicity LM-01080-54

BEARING, Needle

$

$

Not available

38

Simplicity LM-01701-21

PULLEY, Driven

$

$

Not available

39

Simplicity LM-09221-30

SCREW, Hex Head, 3/8-16 x 2-1/4

$

$

Not available

40

Simplicity LM-01574-24

WASHER

$

$

Not available

41

Simplicity LM-01701-79

SPACER

$

$

Not available

42

Simplicity LM-09288-65

SCREW, Hex Head, 1/2-13 x 5-1/2

$

$

Not available

43

Simplicity LM-01050-10

WASHER

$

$

Not available

44

Simplicity LM-01703-29

SPACER

$

$

Not available

45

Simplicity LM-01703-68

WASHER

$

$

Not available

46

Simplicity LM-01703-69

SPACER

$

$

Not available

47

Simplicity LM-01700-23

DRIVE SHAFT ASSEMBLY

$

$

Not available

48

Simplicity LM-01700-53

CHAIN

$

$

Not available

49

Simplicity LM-01701-77

ROLLER

$

$

Not available

50

Simplicity LM-01700-29

CASE SPACER

$

$

Not available

51

Simplicity LM-09193-18

SCREW, Hex Head, 5/16-18 x 5/8

$

$

Not available

52

Simplicity LM-01641-91

PLUG, Button

$

$

Not available

53

Simplicity LM-09234-28

NUT, Hex, Lock, 3/8-16

$

$

Not available

54

Simplicity LM-09221-34

NUT, Hex Lock, 1/2-13

$

$

Not available

55

Simplicity LM-01703-67

CASE ASSEMBLY, R.H.

$

$

Not available

56

Simplicity LM-09233-46

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

57

Simplicity LM-01700-30

TINE SHAFT ASSEMBLY

$

$

Not available

58

Simplicity LM-01700-22

GASKET, Case

$

$

Not available

59

Simplicity LM-01703-23

CASE ASSEMBLY, L.H.

$

$

Not available

60

Simplicity LM-01704-19

BEARING

$

$

Not available

61

Simplicity LM-01610-69

BEARING FLANGE

$

$

Not available

62

Simplicity LM-81611-58

STOP, Belt

$

$

Not available
