990970 - Simplicity Roticul Tiller, 5hp Frame, Handles and Controls Group (1645I01) Parts Diagram

Roticul Tiller, 5hp

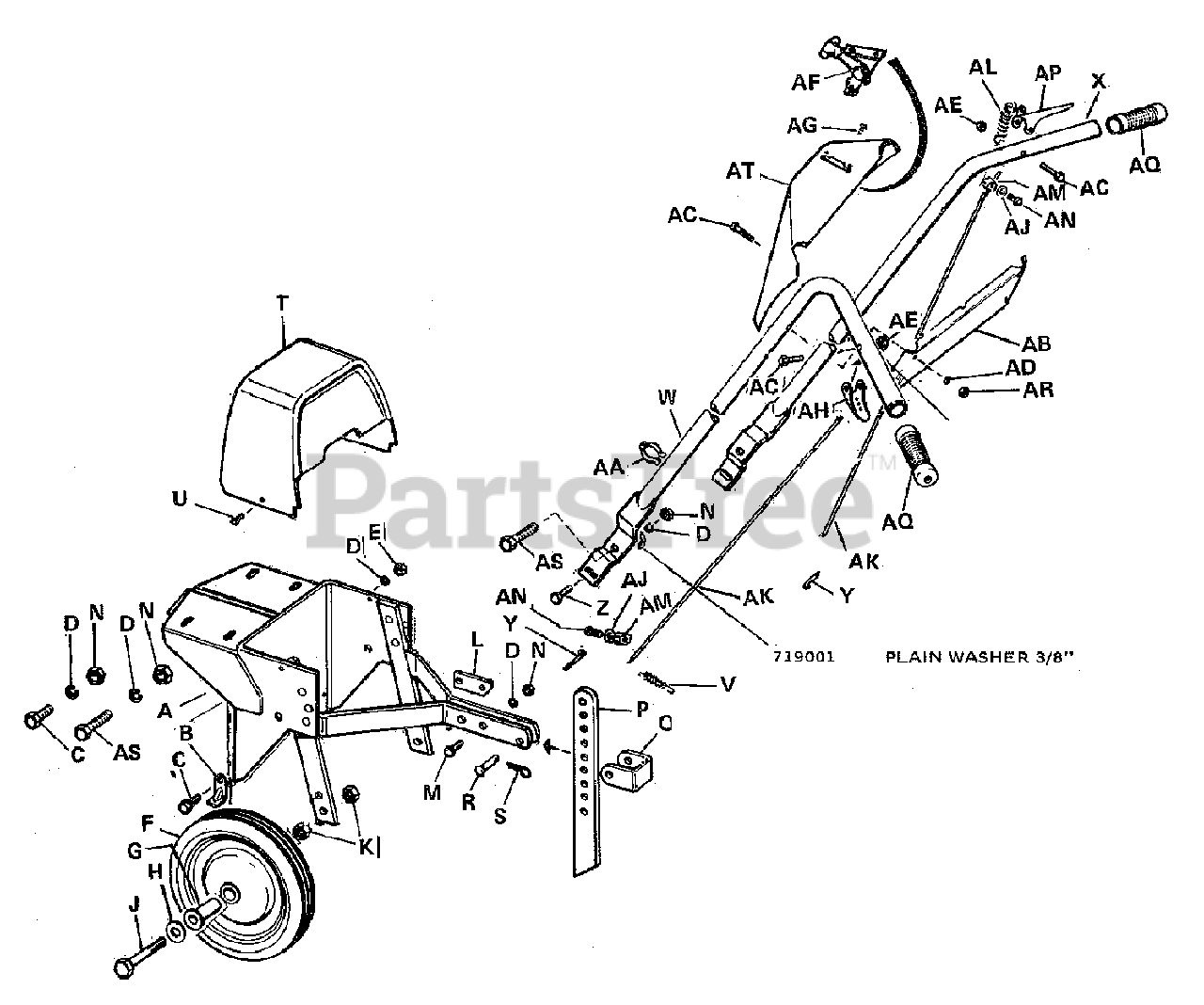

Frame, Handles and Controls Group (1645I01) Parts Diagram

  • Title

A

Simplicity 170879

BODY ASSEMBLY

$

$

Not available

B

Simplicity 170360

SCRAPER

$

$

Not available

C

Simplicity 2705004

CAPSCREW, Hex, Head, 3/8"-16 NC x 3/4" Lg

$

$

Not available

D

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

E

Simplicity 2717013

NUT, Hex, Full, 3/8"-16

$

$

Not available

F

Simplicity 118030

WHEEL & TIRE ASSEMBLY

$

$

Not available

G

Simplicity 2118132SM

BUSHING, Wheel

$

$

Not available

H

Simplicity 2719004

PLAIN WASHER, 1/2"

$

$

Not available

J

Simplicity 2705037

CAPSCREW, Hex, Head, 1/2"-13 NC x 3-1/4" Lg

$

$

Not available

K

Simplicity 2717017

NUT, Hex, Jam, 1/2"-13

$

$

Not available

L

Simplicity 118207

PLATE, Stop

$

$

Not available

M

Simplicity 2705009

CAPSCREW, Hex Head, 3/8"-16 NC x 1-1/2" Lg

$

$

Not available

N

Simplicity 2717003

NUT, Hex, 3/8"-16

$

$

Not available

P

Simplicity 118081

BAR, Depth

$

$

Not available

Q

Simplicity 118447

CLAMP

$

$

Not available

R

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

S

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

T

Simplicity 170359

COVER

$

$

Not available

U

Simplicity 2715067

SCREW, Washer Head, Threaded, 1/4"-20

$

$

Not available

V

Simplicity 2121037SM

SPRING

$

$

Not available

W

Simplicity 118466

HANDLE, L.H.

$

$

Not available

X

Simplicity 118467

HANDLE, R.H.

$

$

Not available

Y

Simplicity 2722011

PIN, Cotter, 3/16" x 1"

$

$

Not available

Z

Simplicity 2715061

CAPSCREW, Hex, Head, 3/8"-16 NC x 1" Lg.

$

$

Not available

AA

Simplicity 80611-08

CABLE, Clip

$

$

Not available

AB

Simplicity 118298

HANDLE BAR, Cover

$

$

Not available

AC

Simplicity 2705025

CAPSCREW, Hex, Head, 1/4"-20 NC x 1-1/2" Lg.

$

$

Not available

AD

Simplicity 2720003

LOCK WASHER, 1/4"

$

$

Not available

AE

Simplicity 2717513

NUT, Hex, Full Lock, 1/4"-20

$

$

Not available

AF

Simplicity 118235

THROTTLE CONTROL ASSEMBLY

$

$

Not available

AG

Simplicity 2714016

SCREW, Self Tapping, No. 10-24

$

$

Not available

AH

Simplicity 118449

GRIP, Clutch-Reverse

$

$

Not available

AJ

Simplicity 2719010

PLAIN WASHER, No. 10-24 x 1/2"

$

$

Not available

AK

Simplicity 172924

CONTROL WIRE

$

$

Not available

AL

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

AM

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

AN

Simplicity 2714016

SET SCREW, No. 10-24 x 1/2"

$

$

Not available

AP

Simplicity 118431

GRIP, Clutch-Forward

$

$

Not available

AQ

Simplicity 2106558

GRIP, Handle Bar

$

$

Not available

AR

Simplicity 2717005

NUT, Hex, Full, 1/4"-20 NC

$

$

Not available

AS

Simplicity 2715055

CAPSCREW, Hex, Head, 3/8"-16 NC x 1-1/4"

$

$

Not available

AT

Simplicity 118237

CONTROL HOUSING ASSEMBLY

$

$

Not available
