990970 - Simplicity Roticul Tiller, 5hp Drive and Tines Group (1645I02) Parts Diagram

Roticul Tiller, 5hp

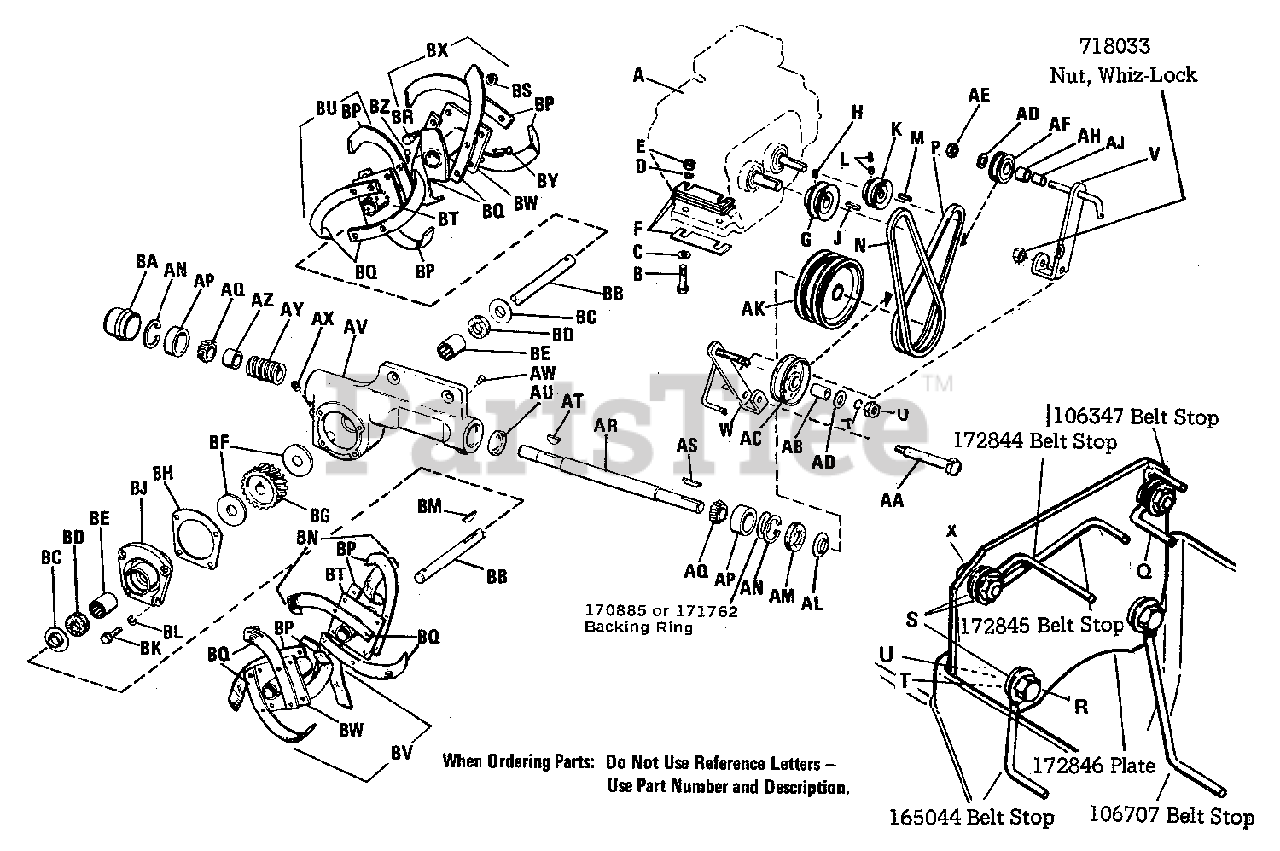

Drive and Tines Group (1645I02) Parts Diagram

  • Title

A

ENGINE, Briggs & Stratton 5 H.P.

$

$

Not available

B

Simplicity 2705020

CAPSCREW, Hex, Head, 5/16-16 NC x 2" Lg.

$

$

Not available

C

Simplicity 2719002

WASHER, Plain, 5/16

$

$

Not available

D

Simplicity 2720001

WASHER, Lock, 5/16

$

$

Not available

E

Simplicity 2717001

NUT, Hex, Full, 5/16-18

$

$

Not available

F

Simplicity 118463

SHIM

$

$

Not available

G

Simplicity 2118027SM

PULLEY, Engine

$50.99

$

Usually ships in 2-12 days

0

H

Simplicity 2713504

SCREW, Set, 5/16-18 NC x 3/8" Lg.

$

$

Not available

J

Simplicity 2805850SM

KEY

$

$

Not available

K

Simplicity 118457

PULLEY, Engine

$

$

Not available

L

Simplicity 2713502

SCREW, Set, 5/16-18 NC x 1/4" Lg.

$

$

Not available

M

Simplicity 2725007

KEY

$

$

Not available

N

Simplicity 2118494

BELT, "V" Reverse

$

$

Not available

P

Simplicity 2164146SM

BELT, "V" Forward

$23.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2172843

BELT, Stop

$

$

Not available

R

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-18 NC x 1" Lg.

$

$

Not available

S

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

T

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

U

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

V

Simplicity 118408

LEVER ASSEMBLY, Idler

$

$

Not available

W

Simplicity 172751

LEVER ASSEMBLY, Idler

$

$

Not available

X

Simplicity 2703003

CARRIAGE BOLT, 3/8"-16 x 1

$

$

Not available

AA

Simplicity 171336

BOLT, Pivot

$

$

Not available

AB

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

AC

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

AD

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

AE

Simplicity 2717524

NUT, Lock, 3/8"-16 NC

$

$

Not available

AF

Simplicity 101002

PULLEY, Idler Assembly, w/Bushing

$

$

Not available

AH

Simplicity 8161243

BUSHING

$

$

Not available

AJ

Simplicity 8191020

SPACER

$

$

Not available

AK

Simplicity 171987

PULLEY, Driven

$

$

Not available

AL

Simplicity 118400

SHIELD

$

$

Not available

AM

Simplicity 2118393SM

SEAL, Oil

$

$

Not available

AN

Simplicity 118396

RING, Snap

$

$

Not available

AP

Simplicity 2154393SM

CUP, Bearing

$22.99

$

In Stock, only 3 left!

0

AQ

Simplicity 2154486SM

BEARING, Roller

$36.99

$

In Stock, Qty 6

0

AR

Simplicity 170888

SHAFT, Worm

$

$

Not available

AS

Simplicity 118439

KEY

$

$

Not available

AT

Simplicity 725502

KEY

$

$

Not available

AU

Simplicity 118399

CUP

$

$

Not available

AV

Simplicity 118392

HOUSING, Worm Drive

$

$

Not available

AW

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

AX

Simplicity 2726003

PLUG, Pipe, 3/8"

$

$

Not available

AY

Simplicity 118492

WORM, R.H.

$

$

Not available

AZ

Simplicity 118398

SPACER

$

$

Not available

BA

Simplicity 2154487SM

CUP
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

BB

Simplicity 118021

SHAFT, Worm Gear

$

$

Not available

BC

Simplicity 2118403SM

SHIELD

$8.49

$

In Stock, only 2 left!

0

BD

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

BE

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

BF

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

BG

Simplicity 2118022SM

GEAR, Worm, R.H.

$286.99

$

Usually ships in 2-12 days

0

BH

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 3 left!

0

BJ

Simplicity 118402

COVER

$

$

Not available

BK

Simplicity 2715018

CAPSCREW, Hex, Head, 1/4"-20 NC x 5/8" Lg.

$

$

Not available

BL

Simplicity 2720003

WASHER, Lock, 1/4"

$

$

Not available

BM

Simplicity 2725005

KEY, Woodruff

$

$

Not available

BN

Simplicity 118083

INNER TINE ASSEMBLY, L.H.

$

$

Not available

BP

Simplicity 1729271SM

BLADE, Tine, L.H.

$

$

Not available

BQ

Simplicity 1729272SM

BLADE, Tine, R.H.

$28.99

$

Usually ships in 2-12 days

0

BR

Simplicity 706009

CAPSCREW, Hex, 7/16"-20 x 1-1/4"

$204.99

$

Usually ships in 2-12 days

0

BS

Simplicity 2717512

NUT, Hex, Full, 7/16"-20

$

$

Not available

BT

Simplicity 118084

PLATE ASSEMBLY, Inner Tine

$

$

Not available

BU

Simplicity 118120

BLADE ASSEMBLY, R.H., Inner Tine

$

$

Not available

BV

Simplicity 105288

EXTENSION, L.H., Tine Blade Assembly

$

$

Not available

BW

Simplicity 105286

PLATE ASSEMBLY, Tine Extension

$

$

Not available

BX

Simplicity 105289

EXTENSION, R.H., Tine Blade Assembly

$

$

Not available

BY

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

BZ

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0
