990930 - Simplicity 30" Tiller Attachment HOUSING AND TINES Parts Diagram

30" Tiller Attachment

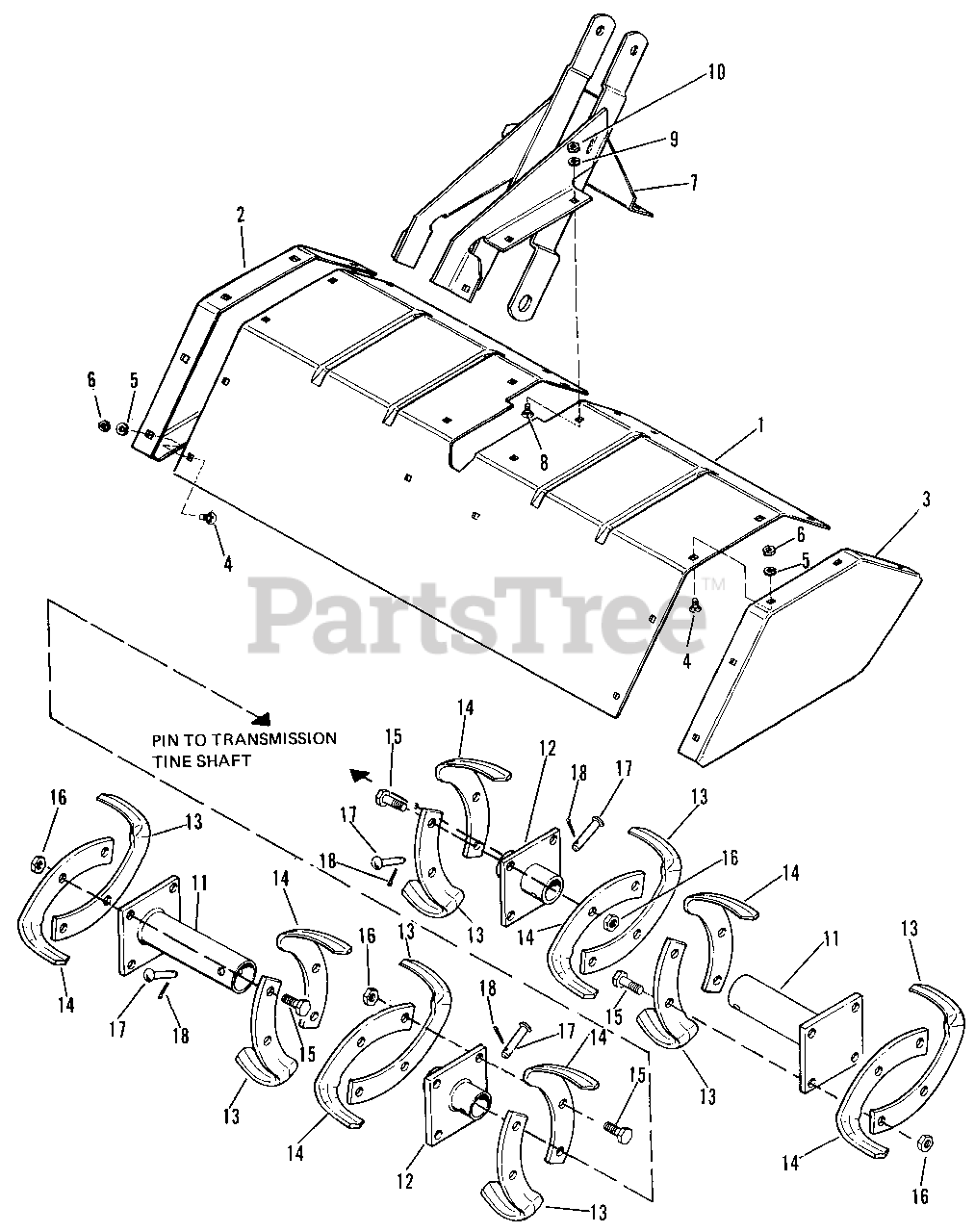

HOUSING AND TINES Parts Diagram

  • Title

1

Simplicity 170034

Deflector

$

$

Not available

2

Simplicity 2105273A

End Plate Deflector L.H.

$

$

Not available

3

Simplicity 2105274A

End Plate Deflector R.H.

$

$

Not available

4

Simplicity 703011

Bolt Carriage, 5/16"-18 x 1

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

6

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

7

Simplicity 170324

Support Assembly

$

$

Not available

8

Simplicity 2702015

Bolt Carriage, 5/16"-18 x 3/4"

$

$

Not available

9

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

10

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

11

Simplicity 2170127

Tine Hub Assembly

$

$

Not available

12

Simplicity 118084

Inner Tine Plate Assembly

$

$

Not available

13

Simplicity 1729271SM

Tine Blade L.H.

$

$

Not available

14

Simplicity 1729272SM

Tine Blade R.H.

$28.99

$

Usually ships in 2-12 days

0

15

Simplicity 706009

Hex Cap Screw, 7/16"-20 x 1-1/4" lg.

$204.99

$

Usually ships in 2-12 days

0

16

Simplicity 2717512

Full Hex. Lock Nut, 7/16"-20

$

$

Not available

17

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

18

Simplicity 2722009

Cotter Pin, 1/8" x 3/4"

$

$

Not available
