990920 - Simplicity Power Max Garden Tractor FRAME AND FRONT AXLE Parts Diagram

Power Max Garden Tractor

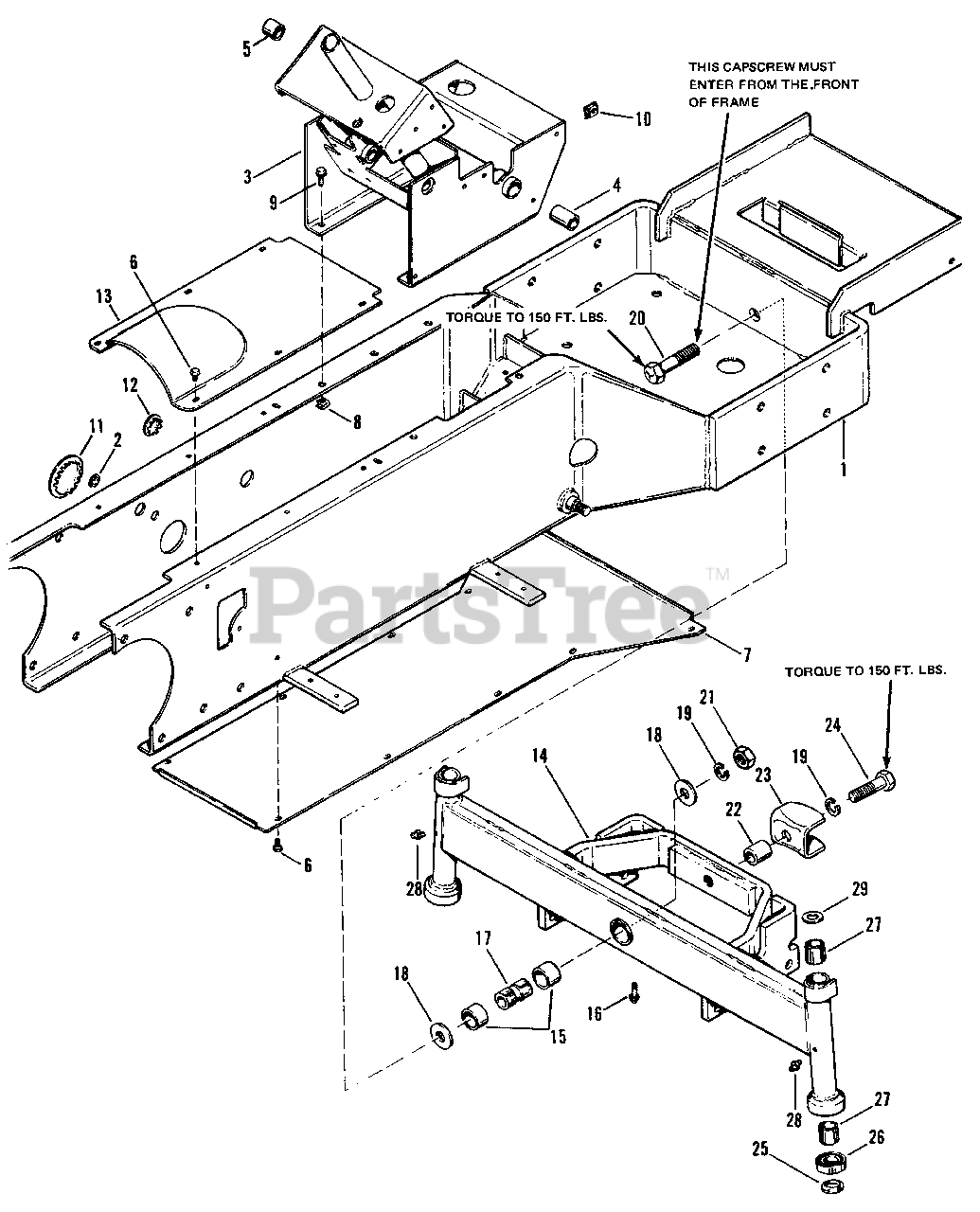

FRAME AND FRONT AXLE Parts Diagram

  • Title

1

Simplicity 176593

Frame Assembly

$

$

Not available

2

Simplicity 174277

Hole Plug

$

$

Not available

3

Simplicity 171959

Support Assembly

$

$

Not available

4

Simplicity 168119

Bushing

$

$

Not available

5

Simplicity 168140

Sleeve Bearing

$

$

Not available

6

Simplicity 2715124

Washer Hd. Taptite Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

7

Simplicity 172629

Bottom Cover

$

$

Not available

8

Simplicity 718058

Clip Nut

$

$

Not available

9

Simplicity 2715142

Washer Hd. Screw

$

$

Not available

10

Simplicity 2718061

Speed Nut

$

$

Not available

11

Simplicity 173339

Hole Plug

$

$

Not available

12

Simplicity 173341

Hole Plug

$

$

Not available

13

Simplicity 176540

Top Cover

$

$

Not available

14

Simplicity 168082

Axle Assembly

$

$

Not available

15

Simplicity 2119023SM

Bearing

$

$

Not available

16

Simplicity 2172761SM

Greased Fitting

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 2168092

Axle Spacer

$

$

Not available

18

Simplicity 168093

Thrust Washer

$

$

Not available

19

Simplicity 2720005

Lock Washer, 5/8"

$

$

Not available

20

Simplicity 715135

Hex Capscrew, 5/8"-11 x 3-1/2"lg.

$

$

Not available

21

Simplicity 2717004

Hex Nut, Full, 5/8"-11

$

$

Not available

22

Simplicity 2173045SM

Bushing

$43.99

$

Usually ships in 2-12 days

0

23

Simplicity 171511

Clevis

$

$

Not available

24

Simplicity 2715113

Bolt, 5/8"-11 x 2-1/4" lg.

$

$

Not available

25

Simplicity 168101

Bearing Spacer

$

$

Not available

26

Simplicity 168102

Thrust Bearing

$

$

Not available

27

Simplicity 2168103SM

Spindle Bushing

$32.99

$

In Stock, only 3 left!

0

28

Simplicity 2727001

Grease Fitting

$

$

Not available

29

Simplicity 2159168

Thrust Washer

$

$

Not available
