990920 - Simplicity Power Max Garden Tractor ENGINE & FUEL SYSTEM Parts Diagram

Power Max Garden Tractor

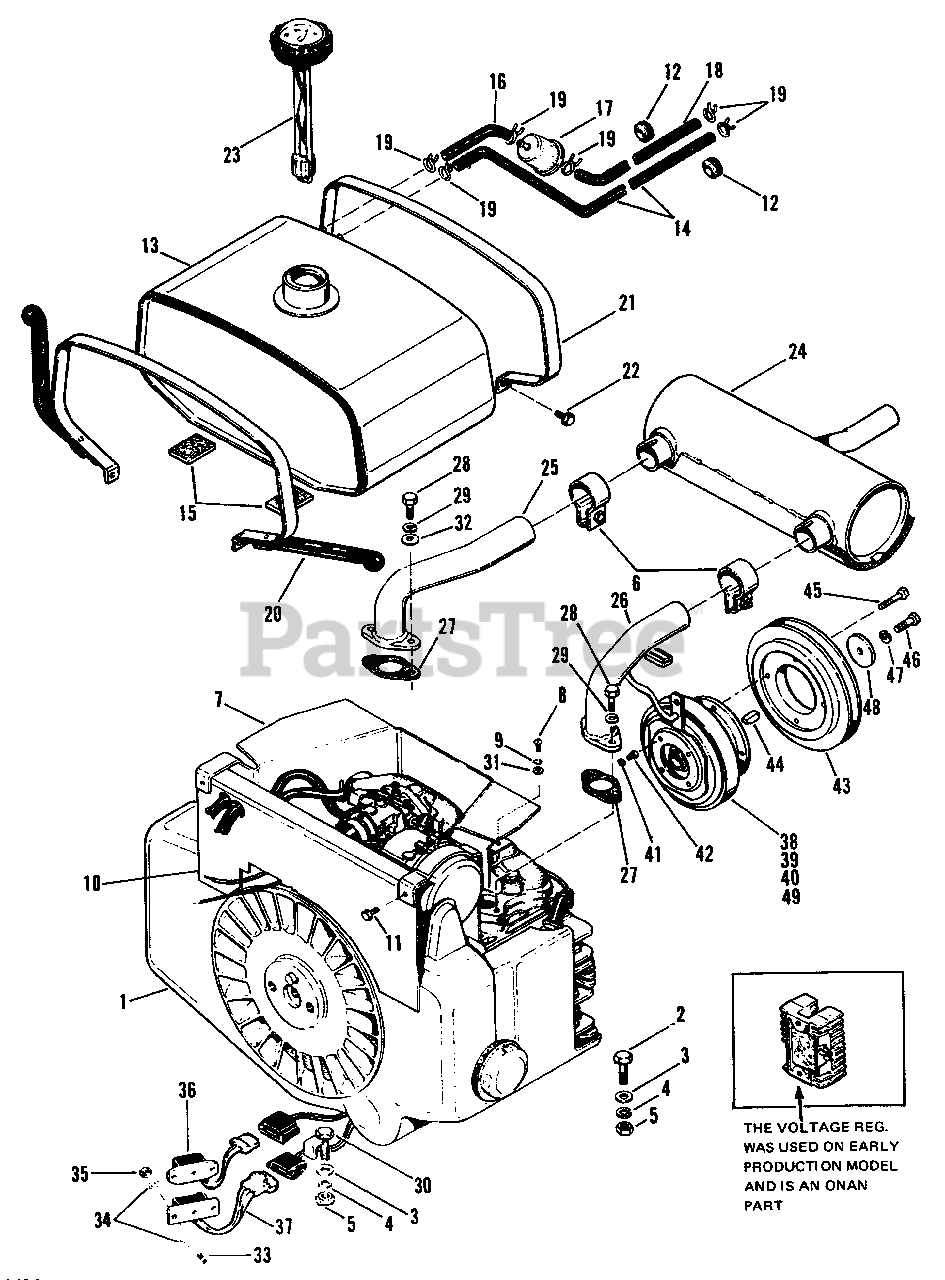

ENGINE & FUEL SYSTEM Parts Diagram

  • Title

1

ENGINE, 19.5 HP Onan, Model CCKB/MS, Type 2420H

$

$

Not available

2

Simplicity 705039

Hex Capscrew, 7/16"-14 x 1-1/2" lg.

$6.99

$

In Stock, only 2 left!

0

3

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

4

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

5

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available

6

Simplicity 2172061SM

Clamp
(Superseded to 2831893SM)

$

$

Not available

7

Simplicity 176374

Heat Shield Assembly

$

$

Not available

8

Simplicity 710004

Round Head Screw, No. 10-32 x 3/8" lg.

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1909055SM

Lockwasher, No. 10

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 176602

Front Shroud

$

$

Not available

11

Simplicity 2715090

Self-Tapping Screw, 1/4"-20 x 1/2" lg.

$

$

Not available

12

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

13

Simplicity 176537

Fuel Tank Assembly

$

$

Not available

14

Simplicity 2176645

Fuel Line, Return

$

$

Not available

15

Simplicity 106582

Felt Gasket

$

$

Not available

16

Simplicity 2176704

Fuel Line

$

$

Not available

17

Simplicity 2176556SM

Fuel Filter

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 2173011

Fuel Line

$

$

Not available

19

Simplicity 2154372

Clamp

$

$

Not available

20

Simplicity 171333

Tank Strap Assy., Rear

$

$

Not available

21

Simplicity 168271

Tank Strap, Front

$

$

Not available

22

Simplicity 2715128

Thread Forming Screw, 1/4-20 x 1" lg.

$

$

Not available

23

Simplicity 2170730SM

Fuel Gauge (Cap)

$

$

Not available

24

Simplicity 2176336SM

Muffler

$506.99

$

Usually ships in 2-12 days

0

25

Simplicity 176378

Exhaust Pipe Assy., L.H.

$

$

Not available

26

Simplicity 176379

Exhaust Pipe Assy., R.H.

$

$

Not available

27

Simplicity 2176382SM

Gasket

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 2715046

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

29

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

30

Simplicity 176570

Capscrew Assembly

$

$

Not available

31

Simplicity 2719008

Plain Washer, No. 10

$

$

Not available

32

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

33

Simplicity 2711003

Truss Hd. Phillips Screw, No. 10-32 x 1/2" lg.

$

$

Not available

34

Simplicity 2721003

Lockwasher, Shakeproof No. 10

$

$

Not available

35

Simplicity 2717007

Hex Nut, No. 10-32

$

$

Not available

36

Simplicity 177481

Regulator

$

$

Not available

37

Simplicity 177482

Rectifier

$

$

Not available

38

Simplicity 2176897

Electric Clutch

$

$

Not available

39

Simplicity 2173479

Field Assembly (For Service Only)

$

$

Not available

40

Simplicity 2173480

Armature Assembly (For Service Only)

$

$

Not available

41

Simplicity 1909055SM

Lockwasher, No. 10

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 2715140

Socket Head Screw, No.10-32 x 1/2" lg.

$

$

Not available

43

Simplicity 172657

Pulley

$

$

Not available

44

Simplicity 172907

Key

$

$

Not available

45

Simplicity 2715131

Self-Tapping Screw, 5/16"-18 x 1-1/2" lg.

$

$

Not available

46

Simplicity 2715004

Hex Capscrew, 3/8"-21 x 1" lg.

$

$

Not available

47

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

48

Simplicity 2172908

Washer

$

$

Not available

49

Simplicity 2177960SM

Bearing (For Service Only)

$

$

Not available

50

Simplicity 717012

Hex Jam Nut, 1/4"-20

Note: Not Shown

$

$

Not available

51

Simplicity 721502

Lockwasher, 1/4"
(Superseded to 1001541MA)

Note: Not Shown

$

$

Not available
