990917 - Homelite 32" Snow Thrower Attachment Spout Group (2950I03) Parts Diagram

32" Snow Thrower Attachment

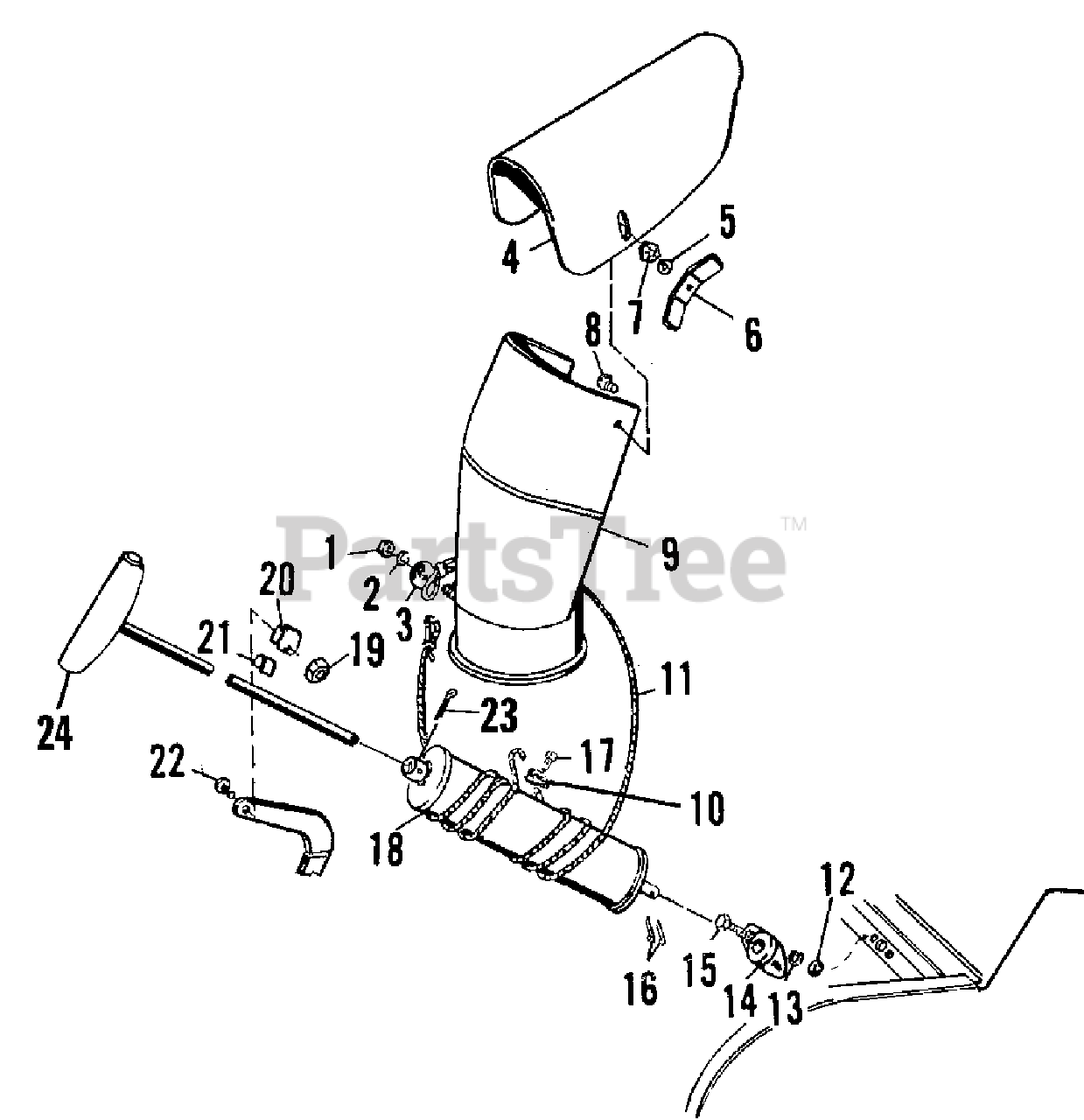

Spout Group (2950I03) Parts Diagram

  • Title
1

Simplicity LM-09173-73

NUT, Hex, 5/16-18

$

$

Not available

2

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

3

$

$

Not available

4

Simplicity LM-01067-60

EXTENSION, Spout

$

$

Not available

5

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

6

Simplicity LM-01062-29

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity LM-09287-10

WASHER, Lock, Shakeproof, 3/8

$

$

Not available

8

Simplicity LM-09205-62

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

$

$

Not available

10

Simplicity LM-01713-82

CLAMP, Cable

$

$

Not available

$

$

Not available

12

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

13

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

$

$

Not available

15

Simplicity LM-09077-27

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

16

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

17

Simplicity LM-09274-28

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

18

Simplicity LM-01068-09

TUBE, Spout Control

$

$

Not available

19

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

20

$

$

Not available

21

Simplicity LM-01211-75

LINER, Guide

$

$

Not available

22

Simplicity LM-09199-33

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

23

Simplicity LM-09184-55

PIN, Cotter, 5/32 x 1

$

$

Not available

$

$

Not available
