990917 - Homelite 32" Snow Thrower Attachment Hitch Group (2950I02) Parts Diagram

32" Snow Thrower Attachment

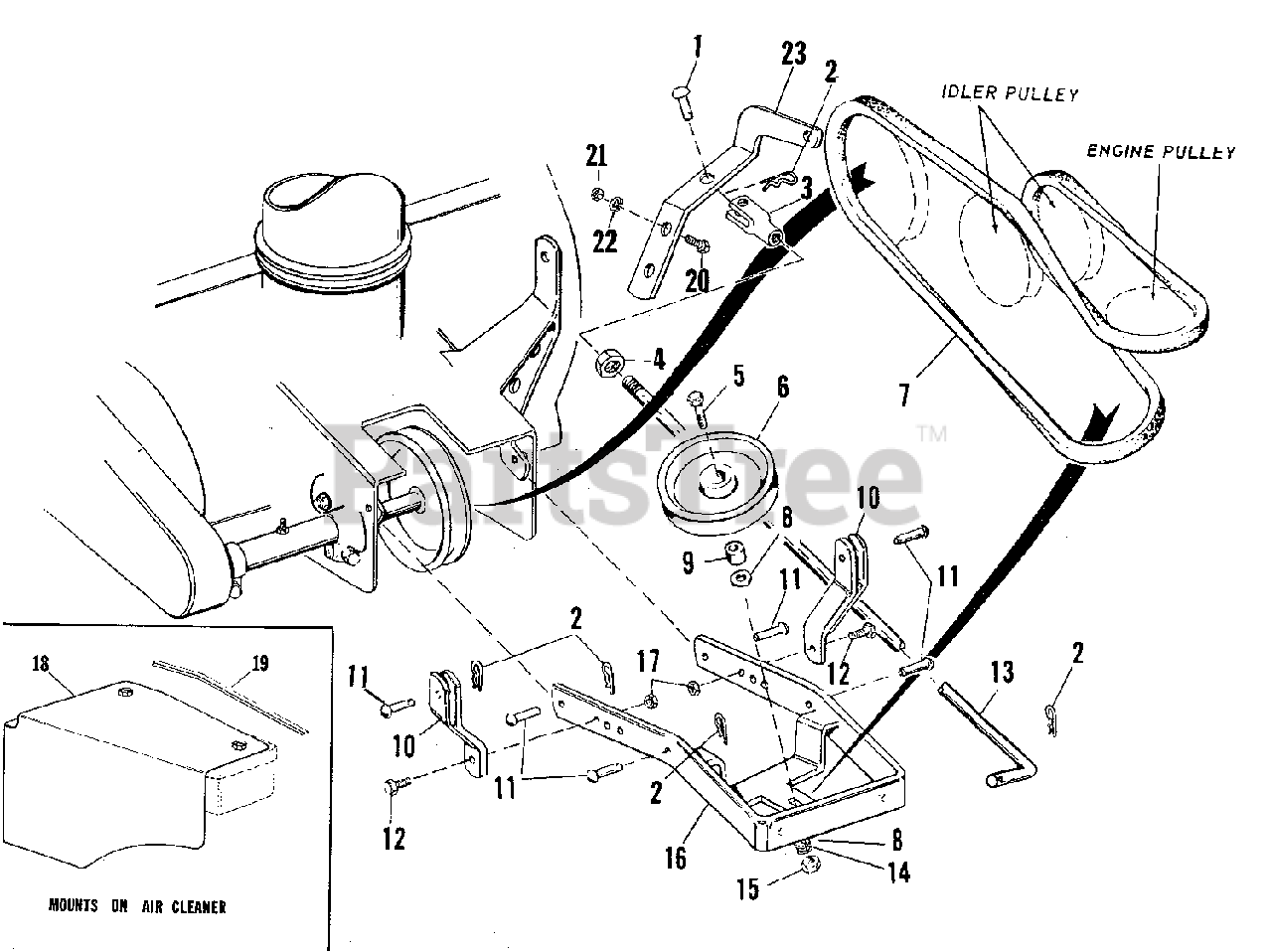

Hitch Group (2950I02) Parts Diagram

  • Title

$

$

Not available

2

$

$

Not available

3

Simplicity LM-01576-31

YOKE, End Adjusting

$

$

Not available

4

Simplicity LM-09194-23

NUT, Hex, 1/2-20

$

$

Not available

5

Simplicity LM-09081-27

SCREW, Hex Cap, 3/8-16 x 3/4

$

$

Not available

$

$

Not available

$

$

Not available

8

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

$

$

Not available

10

Simplicity LM-16072-22

ARM, Support

$

$

Not available

$

$

Not available

12

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

13

$

$

Not available

14

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

15

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

16

$

$

Not available

17

Simplicity LM-09234-28

NUT, Hex, Lock, 3/8-16

$

$

Not available

18

Simplicity LM-01612-96

DEFLECTOR, Heat

$

$

Not available

19

Simplicity LM-01702-52

FILM, Shield

$

$

Not available

-

Simplicity LM-01612-47

DECAL, Safety

$

$

Not available

20

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

21

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

22

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

23

Simplicity LM-16075-62

SUPPORT, Spout Adjusting Rod

$

$

Not available
