990909 - Simplicity Vacuum Collector COLLECTOR & BLOWER HOUSING MFG. NO. 990909 Parts Diagram

Vacuum Collector

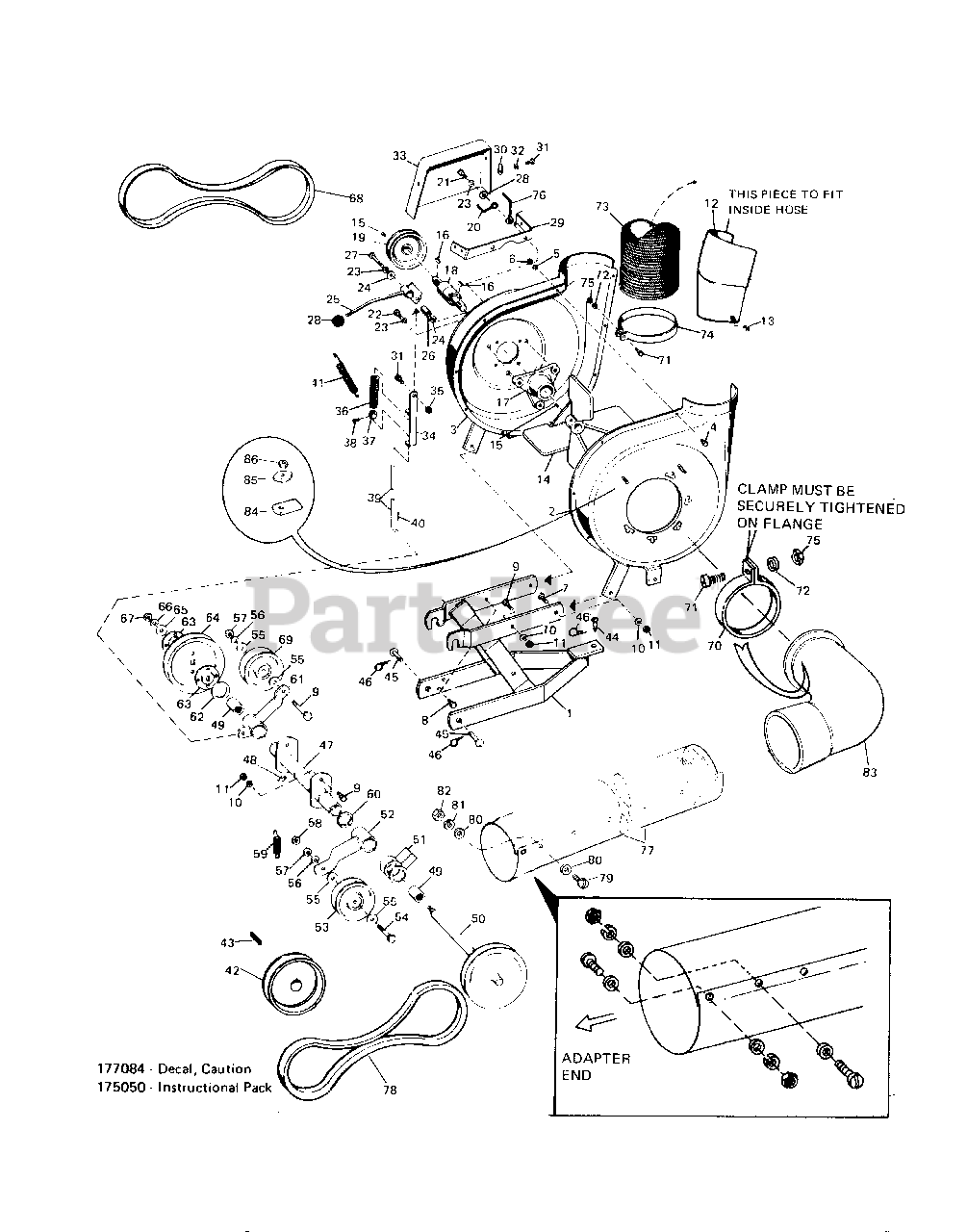

COLLECTOR & BLOWER HOUSING MFG. NO. 990909 Parts Diagram

  • Title

1

Simplicity 123001

Blower Housing Support Assy.

$

$

Not available

2

Simplicity 2177268

Housing Assy. Inlet Half

$

$

Not available

3

Simplicity 2123012

Housing Assy. R.H. Half

$

$

Not available

4

Simplicity 2705002

Hex Capscrew, 1/4-20 x 1/2

$

$

Not available

5

Simplicity 2720003

Lockwasher, 1/4

$

$

Not available

6

Simplicity 2717005

Hex Nut Full, 1/4-20

$

$

Not available

7

Simplicity 2705005

Hex Capscrew, 3/8-16 x 1

$

$

Not available

8

Simplicity 2705016

Hex Capscrew, 3/8-16 x 1-1/4

$

$

Not available

9

Simplicity 2705009

Hex Capscrew, 3/8-16 x 1-1/2

$

$

Not available

10

Simplicity 2720002

Lockwasher, 3/8

$

$

Not available

11

Simplicity 2717003

Hex Nut Full, 3/8-16

$

$

Not available

12

Simplicity 123107

Deflector

$

$

Not available

13

Simplicity 714014

Self-Tapping Screw, No. 10 x 3/8

$

$

Not available

14

Simplicity 2123015ASM

Fan Assembly

$353.99

$

Usually ships in 2-12 days

0

15

Simplicity 2713006

Set Screw Sq. Hd. 5/16-18 x 1/2

$

$

Not available

16

Simplicity 2725504

Key Hi-Pro

$

$

Not available

17

Simplicity 2123087SM

Flange, Shaft & Bearing Assy.

$

$

Not available

18

Simplicity 2123087SM

Shaft and Bearing

$

$

Not available

19

Simplicity 2106663SM

Pulley

$56.99

$

Usually ships in 2-12 days

0

20

Simplicity 2172845SM

Belt Stop

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 2705005

Hex Capscrew, 3/8-16 x 1

$

$

Not available

22

Simplicity 2705005

Hex Capscrew 3/8-16 x 1

$

$

Not available

23

Simplicity 2720002

Lockwasher, 3/8

$

$

Not available

24

Simplicity 2719002

Plain Washer

$

$

Not available

25

Simplicity 123082

Clutch Lever Assembly

$

$

Not available

26

Simplicity 2123027SM

Spacer, Clutch Lever

$10.99

$

Usually ships in 2-12 days

0

27

Simplicity 2705006

Hex Capscrew, 3/8-16 x 2

$

$

Not available

28

Simplicity 2106567

Knob

$

$

Not available

29

Simplicity 164205

Bracket, Belt Guard

$

$

Not available

30

Simplicity 2718030

Nut Retainer

$

$

Not available

31

Simplicity 2705012

Hex Capscrew, 5/16-18 x 5/8

$

$

Not available

32

Simplicity 2720001

Lockwasher, 5/16

$

$

Not available

33

Simplicity 2164206

Belt Guard

$

$

Not available

34

Simplicity 123076

Rod Guide Assembly

$

$

Not available

35

Simplicity 2717511

Hex Nut Full, 5/16-18

$

$

Not available

36

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

37

Simplicity 1729276SM

Set Collar

$

$

Not available

38

Simplicity 2713001

Set Screw Sq. Hd. 1/4-20 x 3/8

$

$

Not available

39

Simplicity 164203

Clutch Rod-Blower

$

$

Not available

40

Simplicity 2722001

Cotter Pin, 3/32 x 3/4

$

$

Not available

41

Simplicity 2121037SM

Spring

$

$

Not available

42

Simplicity 2164202SM

Pulley

$61.99

$

Usually ships in 2-12 days

0

43

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

44

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

45

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

46

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

47

Simplicity 164192

Bearing Housing Assy.

$

$

Not available

48

Simplicity 2727002

Grease Fitting

$

$

Not available

49

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

50

Simplicity 164200

Tranverse Shaft Assy.

$

$

Not available

51

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

52

Simplicity 164199

Tension Arm Assembly

$

$

Not available

53

Simplicity 2108386SM

Idler Pulley

$

$

Not available

54

Simplicity 2705006

Hex Capscrew, 3/8-16 x 2

$

$

Not available

55

Simplicity 2719001

Plain Washer, 3/8

$

$

Not available

56

Simplicity 2720002

Lockwasher, 3/8

$

$

Not available

57

Simplicity 2717003

Hex Nut Full, 3/8-16

$

$

Not available

58

Simplicity 2717510

Hex Nut Full Lock, 3/8-16

$

$

Not available

59

Simplicity 2159159SM

Spring, Tension

$37.99

$

In Stock, only 1 left!

0

60

Simplicity 2164204

Retaining Ring

$

$

Not available

61

Simplicity 164195

Idler Arm Assembly

$

$

Not available

62

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

63

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

64

Simplicity 158195

Pulley

$

$

Not available

65

Simplicity 2719003

Plain Washer

$

$

Not available

66

Simplicity 2720006

Lockwasher

$

$

Not available

67

Simplicity 2717022

Hex Nut Full, 7/16-14

$

$

Not available

68

Simplicity 2161098SM

"V" Belt P.T.O.

$

$

Not available

69

Simplicity 2106716

Pulley, Idler

$

$

Not available

70

Simplicity 123065

Hose Clamp

$

$

Not available

71

Simplicity 715069

Machine Screw Rd. Hd., 1/4-20 x 3
(Superseded to 715327)

$122.99

$

Usually ships in 2-12 days

0

72

Simplicity 2720003

Lockwasher, 1/4

$

$

Not available

73

Simplicity 2174264

Hose Exhaust (6" Dia.)

$

$

Not available

74

Simplicity 2123067

Hose Clamp

$

$

Not available

75

Simplicity 2717005

Hex Nut Full, 1/4-20

$

$

Not available

76

Simplicity 1630-65

Belt Stop

$

$

Not available

77

Simplicity 2177270

Intake Tube

$

$

Not available

78

Simplicity 2108505

"V" Belt
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

79

Simplicity 2711003

Truss Hd. Phillips Screw

$

$

Not available

80

Simplicity 2719007

Washer, 3/16

$

$

Not available

81

Simplicity 1909055SM

Lockwasher No. 10

$3.49

$

Usually ships in 2-12 days

0

82

Simplicity 2717007

Hex Nut Full, No. 10-32

$

$

Not available

83

Simplicity 2177334SM

Elbow Assembly

$

$

Not available

84

Simplicity 2177271SM

Clamp Bar

$7.49

$

Usually ships in 2-12 days

0

85

Simplicity 2108848

Wing Nut

$

$

Not available

86

Simplicity 2717530

Hex Nut Full, Jam, 5/16-18

$

$

Not available
