990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp ENGINE and FRAME Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

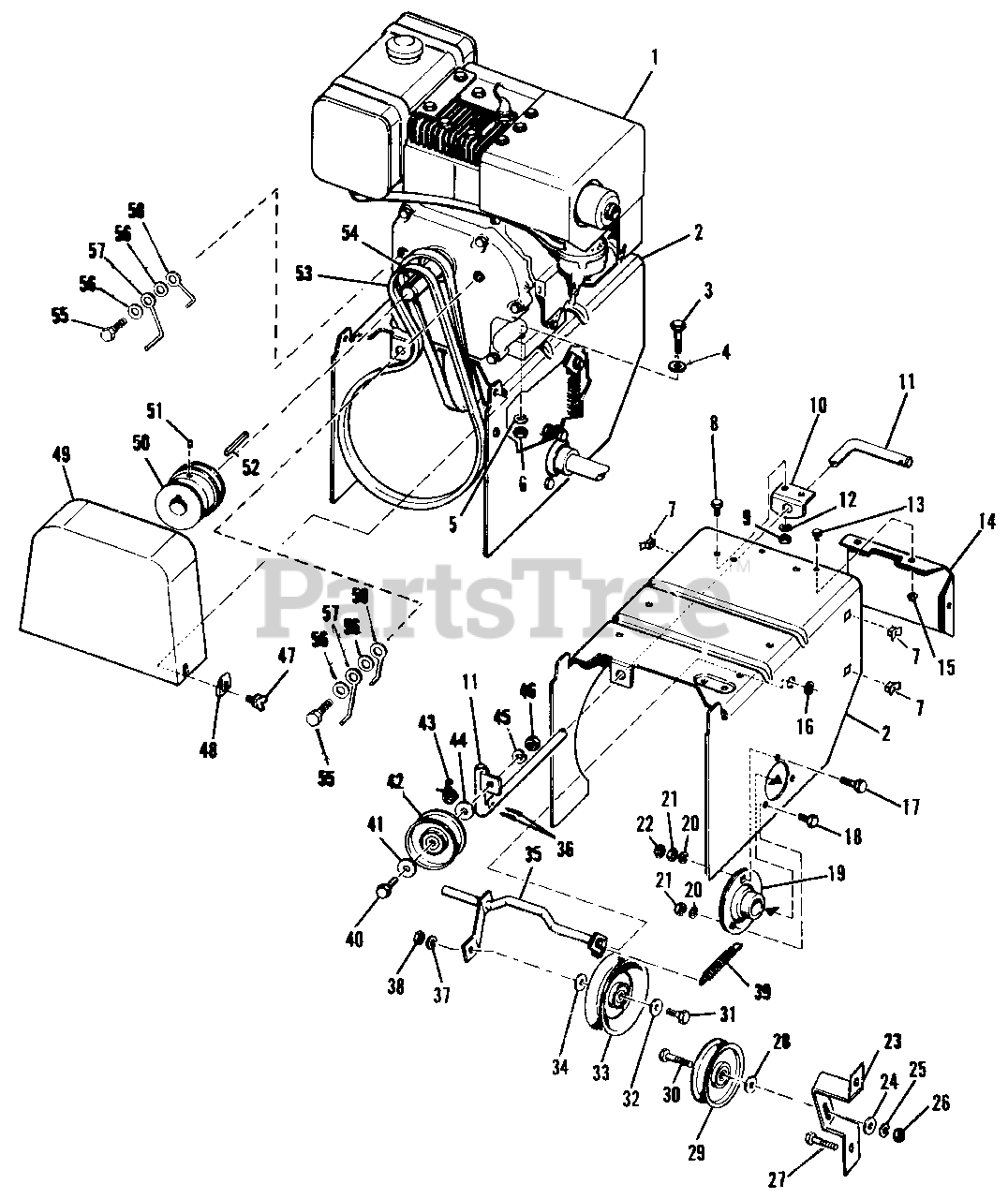

ENGINE and FRAME Parts Diagram

  • Title

1

Simplicity 1735-78

ENGINE

$

$

Not available

2

Simplicity 1743-39

ENGINE BASE & FRAME (990560 Only)

$

$

Not available

3

Simplicity 2705023

Capscrew, Hex Hd., 5/16"-18 NC x 1 3/4" lg.

$

$

Not available

4

Simplicity 9176-42

WASHER-flat, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

6

Simplicity 2717001

Hex Nut, Full, 5/16"-18" NC (For "725" Only-Rear)

$

$

Not available

7

Simplicity 2718024

Nut, Tinnerman, 5/16"-18 N.C.

$

$

Not available

8

Simplicity 2705012

Screw, Cap, Hex., 5/16"-18 N.C. x 5/8" lg.

$

$

Not available

9

Simplicity 9173-72

NUT, hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1610-56

BRACKET, Angle

$

$

Not available

11

Simplicity 1610-34

ROD ASSY., Clutch, Auger

$

$

Not available

12

Simplicity 9173-56

WASHER-lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 9286-89

SCREW-self tapping, No. 14AB x 5/8

$

$

Not available

14

Simplicity 1611-35

COVER, Back (990430 & 990560 Only)

$

$

Not available

15

Simplicity 9287-03

NUT, Speed, Tinnerman

$

$

Not available

16

Simplicity 1583-99

RING-retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

17

Simplicity 2705016

Capscrew, Hex Hd., 3/8"-16 NC x 1-1/4" lg. (For "725" Front)

$

$

Not available

18

Simplicity 2705005

CAPSCREW, 7/16"-20 NF x 3/4" Hex Head, Large

$

$

Not available

19

Simplicity 161238

BEARING, Ball (990560 Only)

$

$

Not available

20

Simplicity 2720002

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

$

$

Not available

21

Simplicity 2717003

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

$

$

Not available

22

Simplicity 9234-28

SCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 1740-91

BRACKET-idler

$

$

Not available

24

Simplicity 9176-42

WASHER-flat, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 9169065

WASHER-lock

$

$

Not available

26

Simplicity 2717003

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

$

$

Not available

27

Simplicity 715114

PIN-PISTON/STD
(Superseded to 711920)

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 1063-92

SPACER (990483 & 990559 Only)

$

$

Not available

29

Simplicity 2106716

PULLEY, Idler

$

$

Not available

30

Simplicity 2705009

SCREW, Hexagon Head Cap 3/8"-16 N.C. x 1-1/2" Large

$

$

Not available

31

Simplicity 9193-62

SCREW-3/8-16x 2 1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 2719002

Plain Washer, 5/16" (Mfg. No. 920)

$

$

Not available

33

Simplicity 1744-97

PULLEY, Idler
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

34

Simplicity 159029

SPACER

$

$

Not available

35

Simplicity 1743-24

CLUTCH PULLEY PIVOT

$

$

Not available

36

Simplicity 722015

Cotter Pin, 5/32" x 1" lg.

$

$

Not available

37

Simplicity 9169-65

WASHER-lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

38

Simplicity 2717003

Nut-Hex.-Full 3/8"-16 N.C. Henry #916950

$

$

Not available

39

Simplicity 1591-06

SPRING-tension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

40

Simplicity 9193-61

SCREW-3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

41

Simplicity 9176-42

WASHER-flat, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1545-34

PULLEY-idler
(Superseded to 2154534SM)

$32.99

$

Usually ships in 2-12 days

0

43

Simplicity 1610-58

SPRING, Torsion

$

$

Not available

44

Simplicity 1570-81

SPACER
(Superseded to 2157081SM)

$8.99

$

In Stock, Qty 6

0

45

Simplicity 2720002

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

$

$

Not available

46

Simplicity 2717510

Nut, Lock, Hex Hd., Full, 3/8"-l6 N.C.

$

$

Not available

47

Simplicity 2715037

SCREW-thumb, 5/16-18 x 3/4

$

$

Not available

48

Simplicity 2718030

Tinnerman Nut, #C31280-5618-1

$

$

Not available

49

Simplicity 1610-17

COVER, Engine Pulley

$

$

Not available

50

Simplicity 1742-39

PULLEY-engine

$

$

Not available

51

Simplicity 2713504

Screw, Set, Cup Point Socket Head, 5/16"-18 NC x 3/8" lg.

$

$

Not available

52

Simplicity 1591-29

KEY

$

$

Not available

53

Simplicity 1610-98

BELT-V
(Superseded to 2161098SM)

$

$

Not available

54

Simplicity 1743-23

BELT, V
(Superseded to 1650352SM)

$30.99

$

Usually ships in 2-12 days

0

55

Simplicity 706025

SCREW-hex, 5/16-24 x 1

$83.99

$

Usually ships in 2-12 days

0

56

Simplicity 2719002

Plain Washer, 5/16" (Mfg. No. 920)

$

$

Not available

57

Simplicity 1743-26

STOP-belt

$

$

Not available

58

Simplicity 1630-65

STOP, Belt

$

$

Not available

59

Simplicity 1743-27

STOP-belt

$

$

Not available
