990885 - Simplicity 42" Mower Deck MOWER UNDERSIDE Parts Diagram

42" Mower Deck

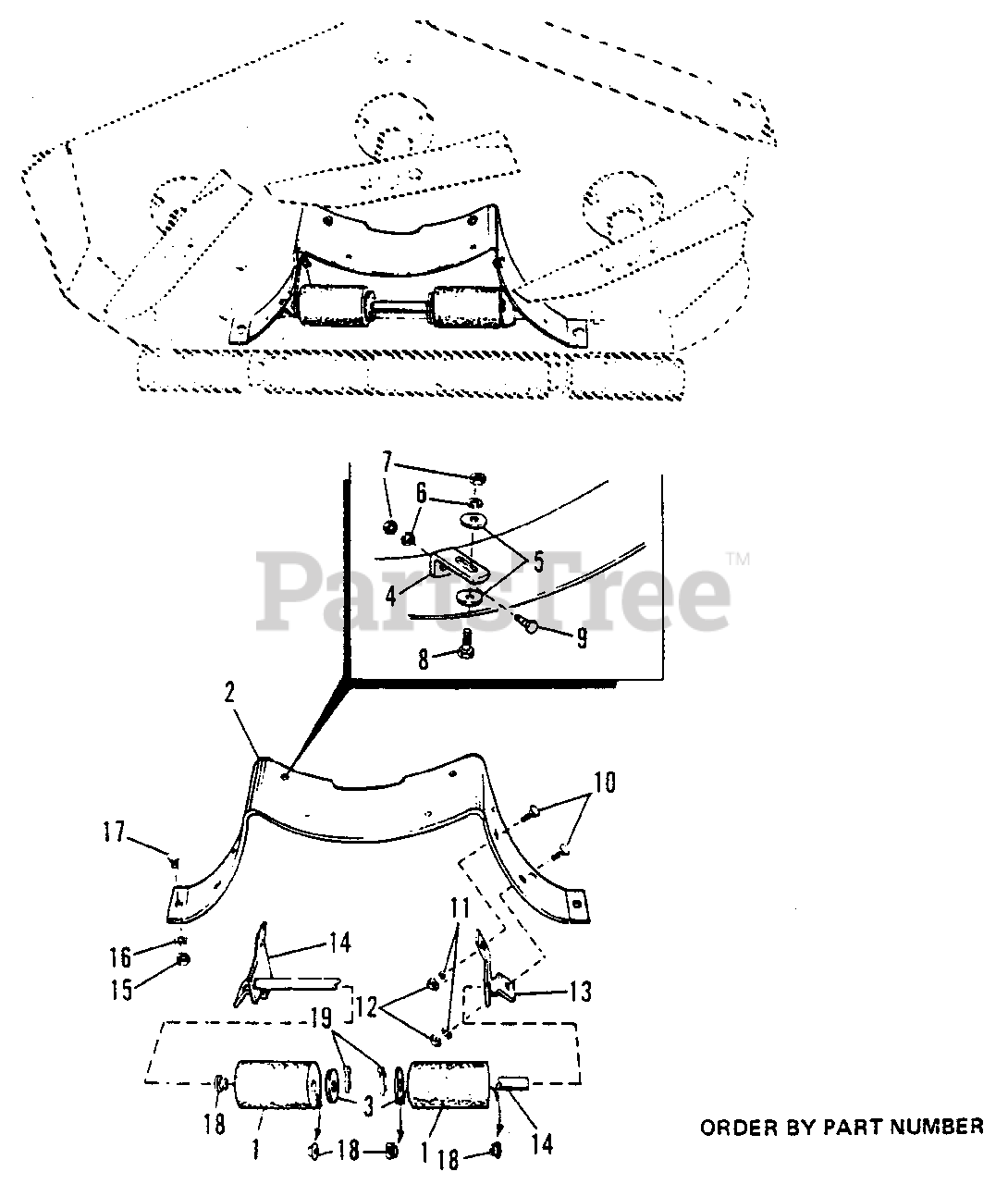

MOWER UNDERSIDE Parts Diagram

  • Title

1

Simplicity 1668513SM

Roller W/Bushing

$10.99

$

In Stock, Qty 20+

0

2

Simplicity 2108361

Baffle

$

$

Not available

3

Simplicity 2116001

Washer

$

$

Not available

4

Simplicity 2108186SM

Clip Baffle

$12.99

$

In Stock, only 1 left!

0

5

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

6

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

7

Simplicity 2717005

Full Hex Nut, 1/4"-20 N.C.

$

$

Not available

8

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

9

Simplicity 2714012

Screw, Recessed Hex Self Tapping, 1/4" 20 N.C. x 7/8"

$

$

Not available

10

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

11

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

12

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

13

Simplicity 2108224ASM

Lower Roller Bracket, L.H.

$59.99

$

In Stock, only 2 left!

0

14

Simplicity 2108426SM

Bracket & Shaft Assembly
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 2717003

Full Hex Nut, 3/8"-16 N.C.

$

$

Not available

16

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

17

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

18

Simplicity 2108419

Bushings

$

$

Not available

19

Simplicity 2722011

Cotter Pin, 3/16" x 1"

$

$

Not available
