990885 - Simplicity 42" Mower Deck DECK ASSEMBLY Parts Diagram

42" Mower Deck

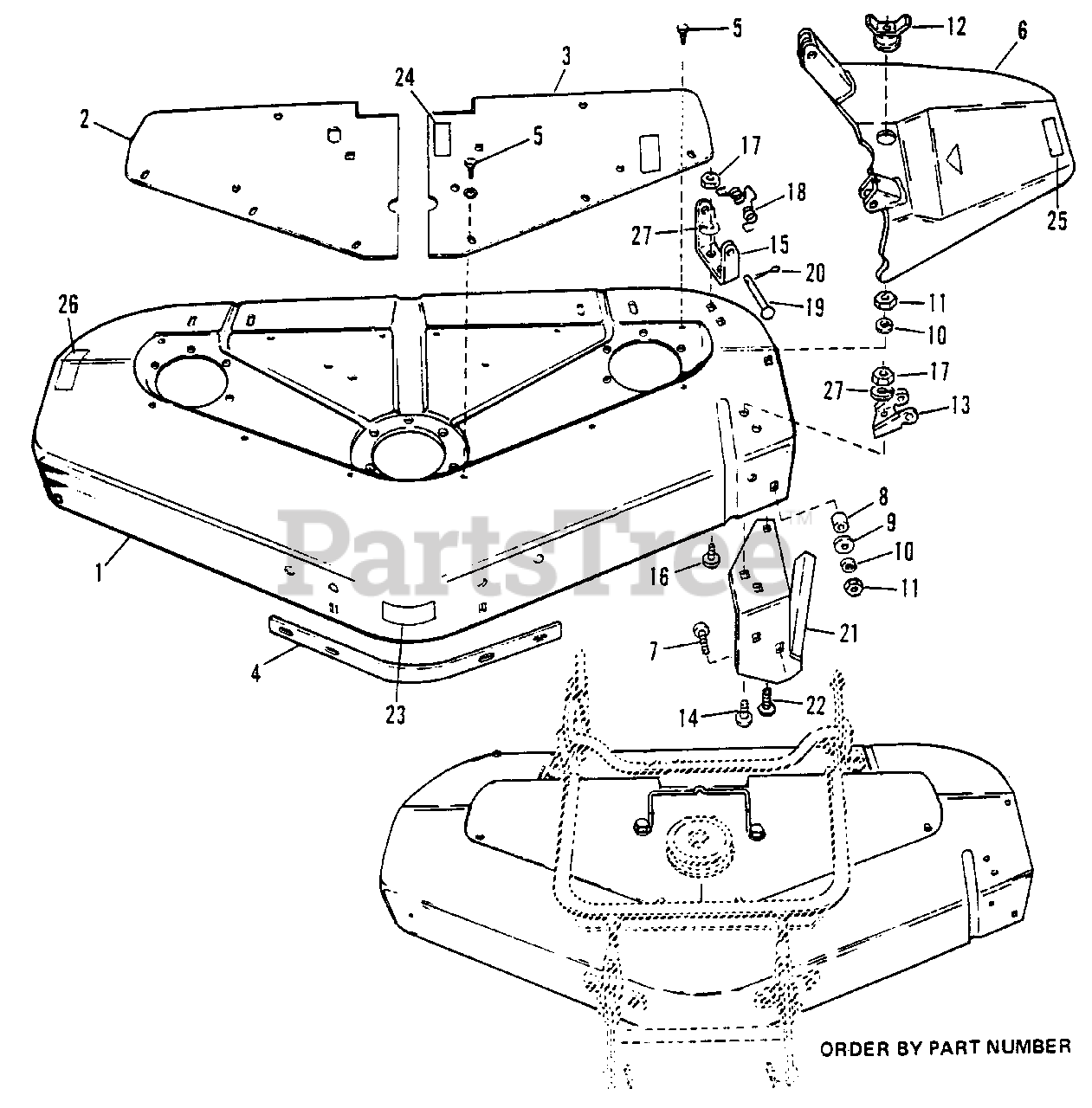

DECK ASSEMBLY Parts Diagram

  • Title

1

Simplicity 2176683

Mower Housing

$

$

Not available

2

Simplicity 172049

Cover, Right Hand

$

$

Not available

3

Simplicity 172414

Cover, Left Hand

$

$

Not available

4

Simplicity 2108366SM

Reinforcing Bar
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

5

Simplicity 2715067

Taptite Screw, 1/4"-20 x 3/8"

$

$

Not available

6

Simplicity 175843

Deflector

$

$

Not available

7

Simplicity 2702004

Carriage Bolt, 3/8"-16 x 1-1/4"

$

$

Not available

8

Simplicity 2153081

Spacer

$

$

Not available

9

Simplicity 1924356SM

Special Washer
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

11

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

12

Simplicity 2123060

Nut Assembly

$

$

Not available

13

Simplicity 175839

Front Half Hinge

$

$

Not available

14

Simplicity 2702024

Carriage Bolt, 5/16"-18 x 1"

$

$

Not available

15

Simplicity 175840

Rear Half Hinge

$

$

Not available

16

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

17

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

18

Simplicity 176155

Spring

$

$

Not available

19

Simplicity 175838

Pin

$

$

Not available

20

Simplicity 2722009

Cotter Pin, 1/8" x 3/4"

$

$

Not available

21

Simplicity 2174167SM

Stone Guard Assembly

$

$

Not available

22

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1"

$

$

Not available

23

Simplicity 106719

Film, Simplicity

$

$

Not available

24

Simplicity 2174845

Film, Belt Installation

$

$

Not available

25

Simplicity 176719

Decal, Danger

$

$

Not available

26

Simplicity 2176720

Decal, Caution

$

$

Not available

27

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

27

Simplicity 176386

Plate, I.D.

Note: NOT ILLUSTRATED

$

$

Not available

27

Simplicity 121195

Plate, Patent

Note: NOT ILLUSTRATED

$

$

Not available

27

Simplicity 176700

Decal, OPEI

Note: NOT ILLUSTRATED

$

$

Not available

27

Simplicity 2176151

Film, Safety

Note: NOT ILLUSTRATED

$

$

Not available
