990883 - Simplicity 32" Mower Deck Hitch & Rollers Group Parts Diagram

32" Mower Deck

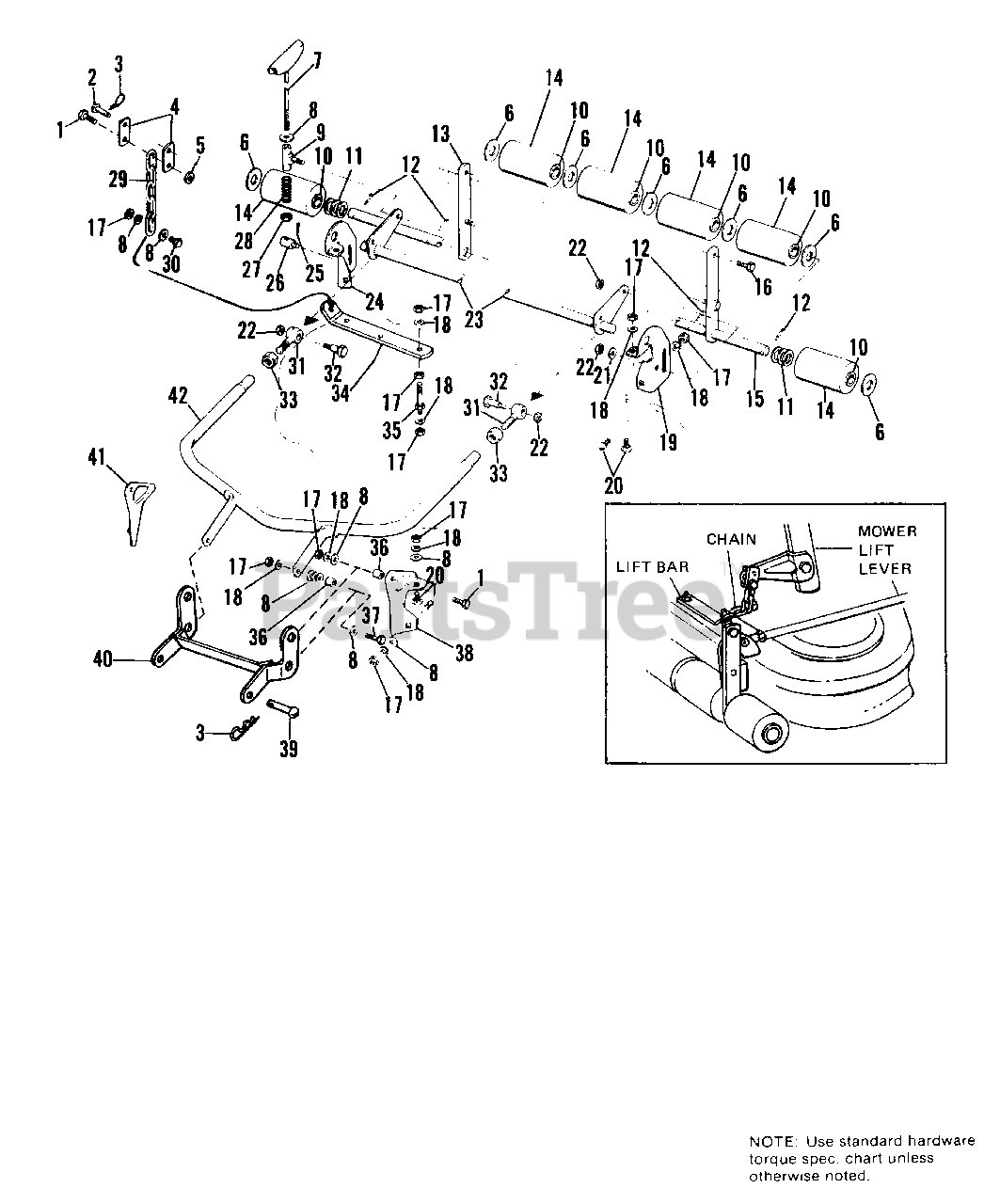

Hitch & Rollers Group Parts Diagram

  • Title

1

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

2

Simplicity 1708298SM

PIN

$

$

Not available

3

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 108199

LINK, Mower Lift

$

$

Not available

5

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 2116001

WASHER

$

$

Not available

7

Simplicity 2108415

SCREW ASSY., Adjusting

$

$

Not available

8

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 2108166SM

SOCKET ASSY., Crank

$30.99

$

Usually ships in 2-12 days

0

10

Simplicity 2108419

BUSHINGS

$

$

Not available

11

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

13

Simplicity 2108256

BAR ASSY., Roller

$

$

Not available

14

Simplicity 1668513SM

ROLLER ASSY., W/Bushings

$10.99

$

In Stock, Qty 20+

0

15

Simplicity 108254

ROLLER BAR & SHAFT ASSY.

$

$

Not available

16

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

17

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 6

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

19

Simplicity 108163

BRACKET, Roller, L.H.

$

$

Not available

20

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

21

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

22

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 108160

LEVER ASSY., Rear

$

$

Not available

24

Simplicity 108159

BRACKET, Roller, R.H.

$

$

Not available

25

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

26

Simplicity 108172

PIVOT

$

$

Not available

27

Simplicity 2817421

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

28

Simplicity 2108360SM

SPRING

$5.49

$

In Stock, only 1 left!

0

29

Simplicity 2107031SM

CHAIN
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

30

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

31

Simplicity 2157215SM

EYEBOLT

$

$

Not available

32

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

33

Simplicity 2819262

LOCKNUT, Hex, Jam, 1/2-20

$

$

Not available

34

Simplicity 108375

BAR, Lift

$

$

Not available

35

Simplicity 2108372SM

STUD

$46.99

$

Usually ships in 2-12 days

0

36

Simplicity 2153073

SPACER

$

$

Not available

37

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 108476

BRACKET, Front, L.H.

$

$

Not available

39

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 14

0

40

Simplicity 108796

ARM ASSY., Rocker

$

$

Not available

41

Simplicity 108477

BRACKET, Front, R.H.

$

$

Not available

42

Simplicity 108478

BAIL ASSY.

$

$

Not available
