990880 - Simplicity Electric Spout Rotator Kit Electric Spout Group (3690I01) Parts Diagram

Electric Spout Rotator Kit

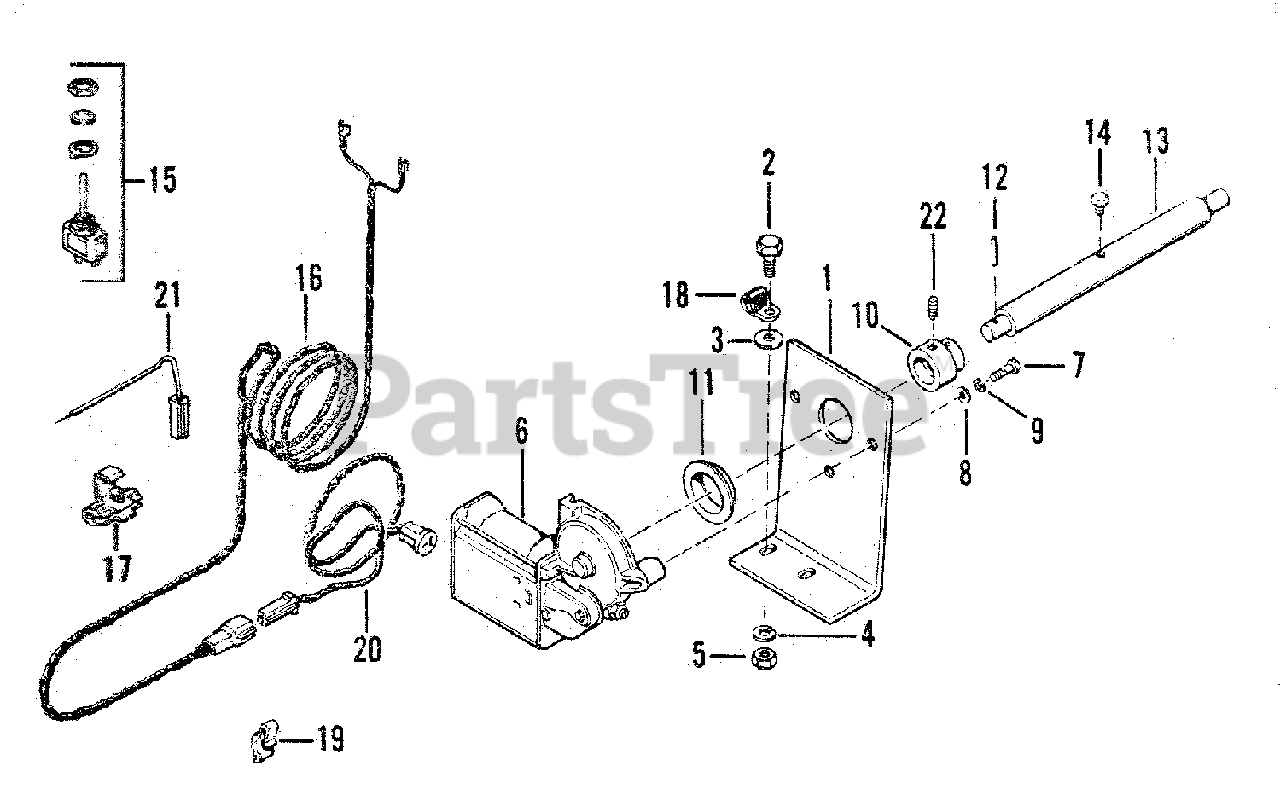

Electric Spout Group (3690I01) Parts Diagram

  • Title

1

Simplicity 2176104SM

BRACKET, Motor

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 x 1" Lg.

$

$

Not available

3

Simplicity 2719002

WASHER, Plain, 3/8"

$

$

Not available

4

Simplicity 2720002

WASHER, Lock

$

$

Not available

5

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

6

Simplicity 2173346

MOTOR, Control

$

$

Not available

7

Simplicity 2705030

CAPSCREW, Hex, 1/4"-20 x 3/4" Lg

$

$

Not available

8

Simplicity 2719006

WASHER, Plain, 1/4"

$

$

Not available

9

Simplicity 2720003

WASHER, Lock, 1/4"

$

$

Not available

10

Simplicity 2174078SM

HUB

$56.99

$

Usually ships in 2-12 days

0

11

Simplicity 2174072SM

FLANGE, Bearing

$

$

Not available

12

Simplicity 2723014

PIN, Roll, 3/16" x 1-1/4"

$

$

Not available

13

Simplicity 2176102SM

ROD, Control

$

$

Not available

14

Simplicity 2715067

SCREW, Taptite, 1/4"-20 x 3/8" Lg.

$

$

Not available

15

Simplicity 2174428SM

SWITCH, Spout Control

$71.99

$

Usually ships in 2-12 days

0

16

Simplicity 174504

WIRING ASSEMBLY (Switch)

$

$

Not available

17

Simplicity 1605751SM

CONNECTOR

$

$

Not available

18

Simplicity 122186

CLAMP

$

$

Not available

19

Simplicity 2172436SM

CLIP, Cable

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 176306

HARNESS ASSEMBLY (Motor)

$

$

Not available

21

Simplicity 176307

WIRE (Switch To Pos.)

$

$

Not available

22

Simplicity 2713510

SCREW, Set, No. 10-24 x 3/8" Lg.

$

$

Not available
