990847 - Simplicity 26" Mower Deck 26" Mower Housing, Arbor & Controls Group Parts Diagram

26" Mower Deck

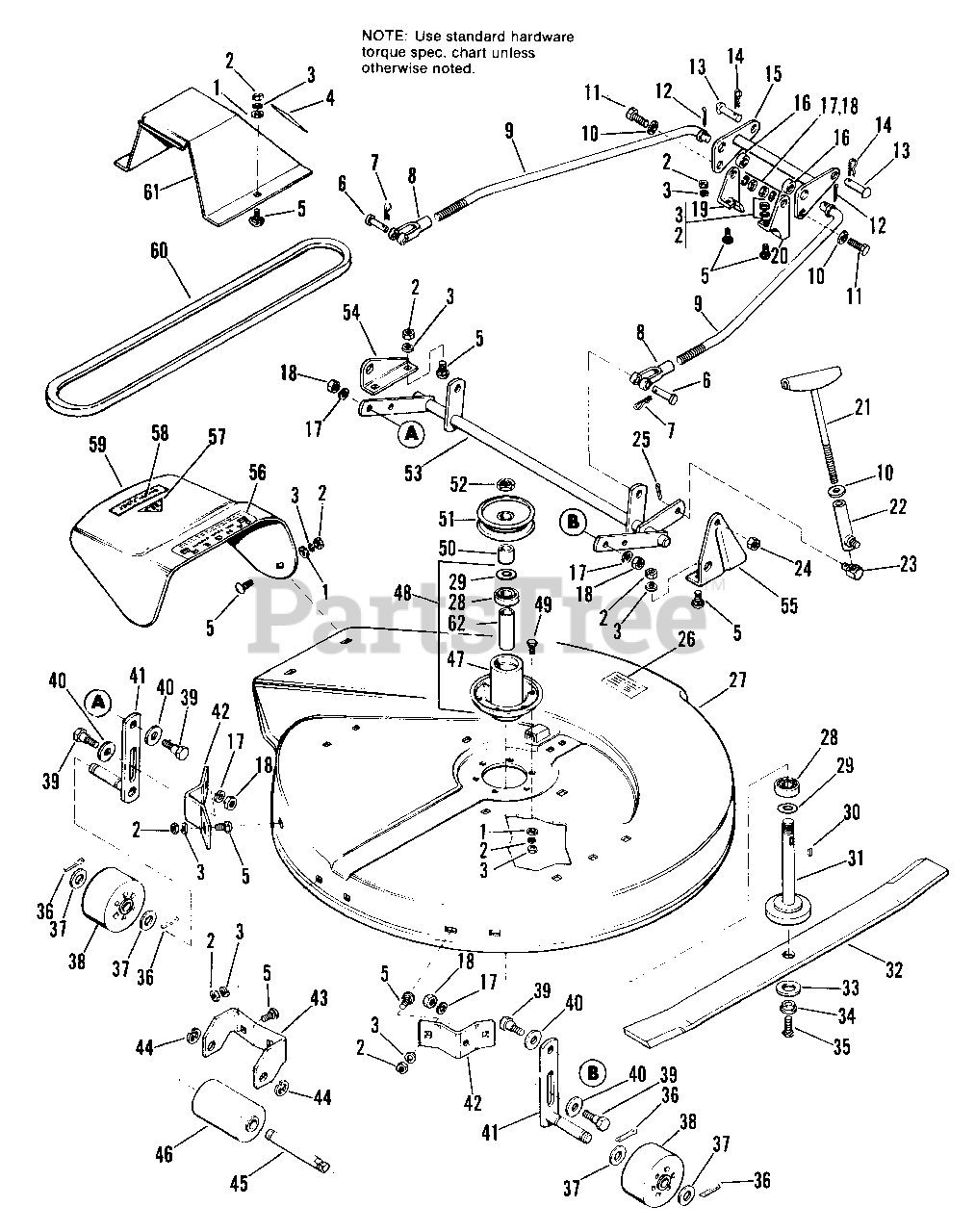

26" Mower Housing, Arbor & Controls Group Parts Diagram

  • Title

1

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

2

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 108405

DECAL, S

$

$

Not available

5

Simplicity 930685

BOLT, Carriage, 5/16- 18 x 5/8

$

$

Not available

6

Simplicity 2154305

PIN, Yoke

$

$

Not available

7

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 2154304SM

YOKE

$67.99

$

Usually ships in 2-12 days

0

9

Simplicity 174814

ROD, Adjusting
(Superseded to 705034)

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 2821960

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

12

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

13

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

14

Simplicity 2106788

CLIP, Hair Pin

$

$

Not available

15

Simplicity 174863

BELLCRANK ASSY.

$

$

Not available

16

Simplicity 1602228

SPACER

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1603145

ANCHOR, Housing, L.H.

$

$

Not available

20

Simplicity 1603146

ANCHOR, Housing, R.H.

$

$

Not available

21

Simplicity 2108415

SCREW ASSY., Adjusting

$

$

Not available

22

Simplicity 108287

SOCKET ASSY., Crank

$

$

Not available

23

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 1 left!

0

24

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

26

Simplicity 1601919

TRANSFER, Patent

$

$

Not available

27

Simplicity 1602181

HOUSING, 26"

$

$

Not available

28

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

29

Simplicity 2108472

WASHER

$

$

Not available

30

Simplicity 2818312SM

KEY, Woodruff, #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

31

Simplicity 174603

ARBOR ASSY.

$

$

Not available

32

Simplicity 1607534

BLADE, 26"

$

$

Not available

33

Simplicity 1605746

WASHER, Belleville

$

$

Not available

34

Simplicity 1605745

WASHER, Shoulder

$

$

Not available

35

Simplicity 2860213SM

CAPSCREW, Hex Hd., 1/2-20 x 1 L.H. Thd.

$25.99

$

Usually ships in 2-12 days

0

36

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

37

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

38

Simplicity 1668487SM

ROLLER ASSY.

$9.99

$

Usually ships in 2-12 days

0

39

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

40

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

41

Simplicity 1607603

SUPPORT ASSY., Roller

$

$

Not available

42

Simplicity 1602211

BRACKET, Roller Support

$

$

Not available

43

Simplicity 1603204

BRACKET

$

$

Not available

44

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

45

Simplicity 1603205SM

SHAFT, Center Roller

$29.99

$

Usually ships in 2-12 days

0

46

Simplicity 1668513SM

OLLER ASSY.

$10.99

$

In Stock, Qty 20+

0

47

Simplicity 1655073SM

TUBE ASSY., Arbor

$

$

Not available

48

Simplicity 1655073SM

TUBE ASSY., Arbor W/Bearings

$

$

Not available

49

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

50

Simplicity 1653481

SPACER

$

$

Not available

51

Simplicity 174910

PULLEY, Mower

$

$

Not available

52

Simplicity 2822133

LOCKNUT, Jam, 3/4-16

$

$

Not available

53

Simplicity 174810

ARM ASSY.

$

$

Not available

54

Simplicity 1602193

BRACKET, Pivot, L.H.

$

$

Not available

55

Simplicity 174714

BRACKET, Pivot, R.H.

$

$

Not available

56

Simplicity 2176151

FILM, Safety

$

$

Not available

57

Simplicity 176700

DECAL, Safety

$

$

Not available

58

Simplicity 103031

DECAL, Safety

$

$

Not available

59

Simplicity 174820

DEFLECTOR

$

$

Not available

60

Simplicity 2174911SM

BELT, V

$28.99

$

Usually ships in 2-12 days

0

61

Simplicity 174869

COVER, Belt

$

$

Not available

62

Simplicity 1602265SM

SPACER

$15.99

$

Usually ships in 2-12 days

0
