990791 - Simplicity Dual Lift Lever DUAL LIFT LEVER - Diagram 2 Parts Diagram

Dual Lift Lever

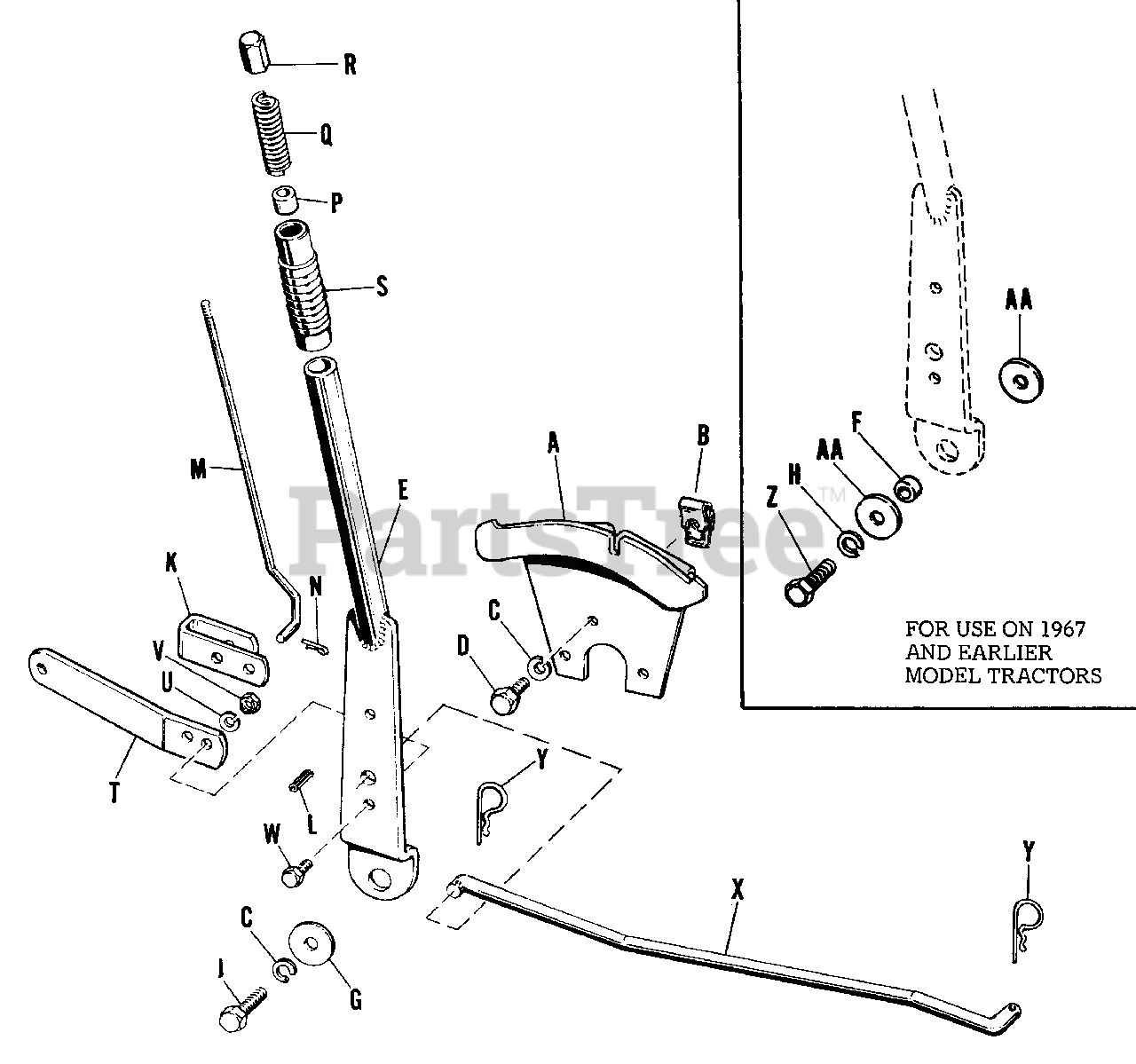

DUAL LIFT LEVER - Diagram 2 Parts Diagram

  • Title

A

Simplicity 157163

Quadrant Assembly, R.H.

$

$

Not available

B

Simplicity 2718030

Nut Retainer

$

$

Not available

C

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

D

Simplicity 2715048

Capscrew, Hex. 5/16"-18 x 3/4" lg., SAE Grade 5

$

$

Not available

E

Simplicity 157160

Lift Lever Assembly, R.H.

$

$

Not available

F

Simplicity 157168

Spacer

Note: FOR USE ON 1967 AND EARLIER MODEL TRACTORS.

$

$

Not available

G

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

H

Simplicity 2720006

Lock Washer, 7/16"

Note: FOR USE ON 1967 AND EARLIER MODEL TRACTORS.

$

$

Not available

J

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

K

Simplicity 157166

Lift Lever Latch

$

$

Not available

L

Simplicity 2723007

Roll Pin, 3/8" x 1"

$

$

Not available

M

Simplicity 157167

Latch Rod, R.H.

$

$

Not available

N

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

P

Simplicity 154226

Spacer

$

$

Not available

Q

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

R

Simplicity 2154227SM

Thumb Button

$

$

Not available

S

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

T

Simplicity 157170

Lift Lever

$

$

Not available

U

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

V

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

W

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

X

Simplicity 107046

Front Lift Rod

$

$

Not available

Y

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

Z

Simplicity 705039

Hex Capscrew, 7/16"-14 x 1 1/2" lg.

Note: FOR USE ON 1967 AND EARLIER MODEL TRACTORS.

$6.99

$

In Stock, only 2 left!

0

AA

Simplicity 157169

Washers, Plain, 7/16"

Note: FOR USE ON 1967 AND EARLIER MODEL TRACTORS.

$

$

Not available
