990784 - Simplicity 42" Mower Deck ROLLER ASSEMBLY Parts Diagram

42" Mower Deck

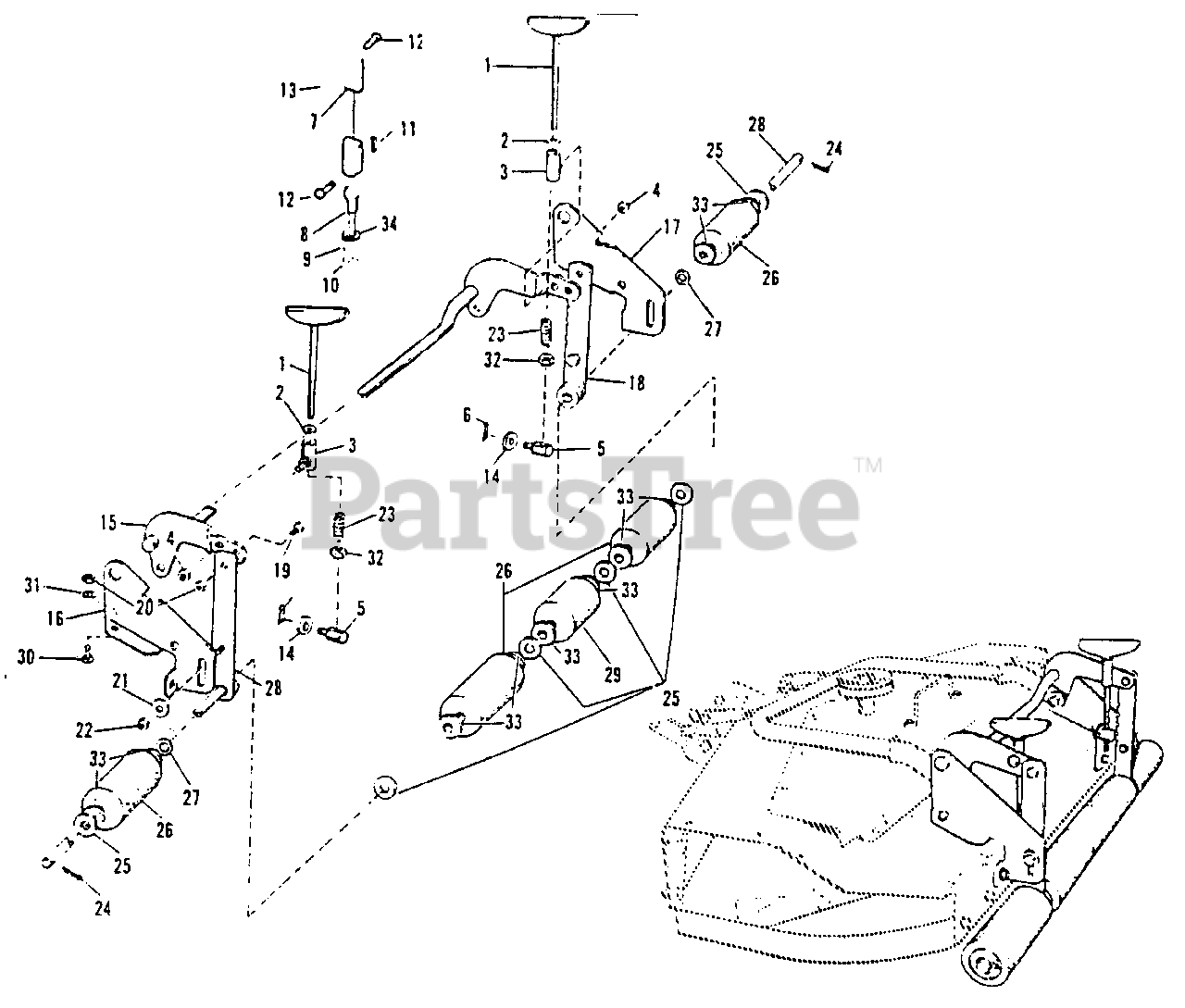

ROLLER ASSEMBLY Parts Diagram

  • Title

1

Simplicity 2108415

Screw Assembly, Adjusting

$

$

Not available

2

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

3

Simplicity 2108241SM

Socket Assembly, Crank
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

4

Simplicity 2717510

Nut, Hex. Full, Lock, 3/8" 16 NC

$

$

Not available

5

Simplicity 2108512SM

Pivot

$36.99

$

In Stock, only 1 left!

0

6

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" Lg.

$

$

Not available

7

Simplicity 172860

Cable Assembly, Lift

$

$

Not available

8

Simplicity 2171815SM

Eye Bolt

$54.99

$

In Stock, only 1 left!

0

9

Simplicity 2720002

Lock Washer, 3/8" Std.

$

$

Not available

10

Simplicity 2717003

Nut, Hex., Full, 3/8-16 NC

$

$

Not available

11

Simplicity 2722001

Pin, Cotter 3/32" x 3/4"

$

$

Not available

12

Simplicity 1708298SM

Pin

$

$

Not available

13

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2719002

Washer, Plain. 3/8" Std

$

$

Not available

15

Simplicity 2172015ASM

Arm. Assembly, Rocker

$116.99

$

Usually ships in 2-12 days

0

16

Simplicity 2172045ASM

Bracket, Roller, R.H.

$34.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172044SM

Bracket, Roller, L.H.
(Superseded to 2172044ASM)

$30.99

$

Usually ships in 2-12 days

0

18

Simplicity 2172412

Bar Assembly, Roller

$

$

Not available

19

Simplicity 2705005

Capscrew, Hex. Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

20

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 NC

$

$

Not available

21

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

22

Simplicity 2717510

Nut, Hex., Full, Lock, 3/8"-16 NC

$

$

Not available

23

Simplicity 2108360SM

Spring, Adj. Screw

$5.49

$

In Stock, only 1 left!

0

24

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg.

$

$

Not available

25

Simplicity 2116001

Washer

$

$

Not available

26

Simplicity 2108432SM

Roller W/Bushing

$36.99

$

Usually ships in 2-12 days

0

27

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 2171958

Shaft & Support Arm.

$

$

Not available

29

Simplicity 1668513SM

Roller W/Bushing

$10.99

$

In Stock, Qty 20+

0

30

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

31

Simplicity 2720002

Washer Lock, 3/8"

$

$

Not available

32

Simplicity 2717013

Nut, Hex., Full 3/8"-16 NC

$

$

Not available

33

Simplicity 2108419

Bushings

$

$

Not available

34

Simplicity 2719002

Plain Washer

$

$

Not available
