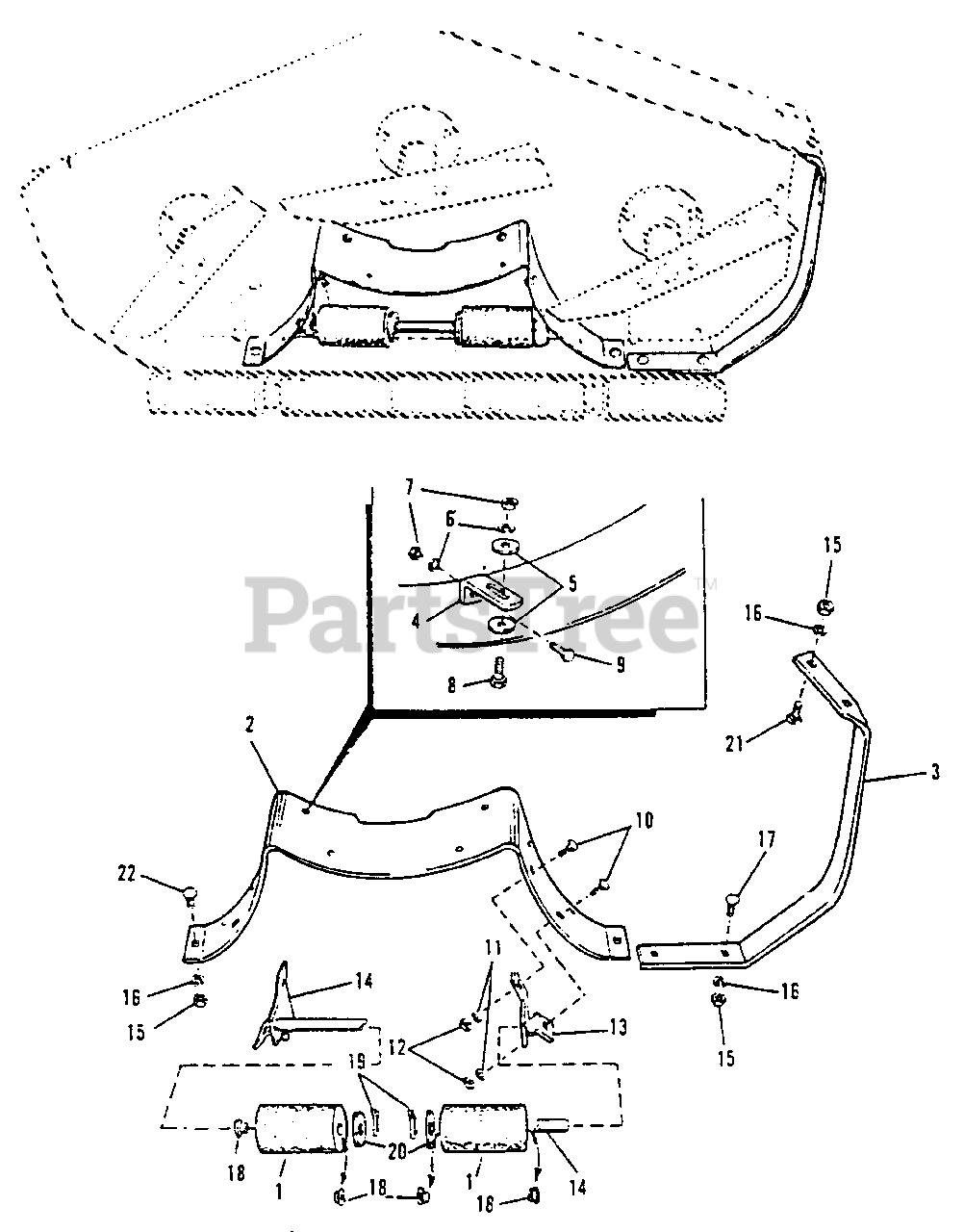

990784 - Simplicity 42" Mower Deck MOWER UNDERSIDE Parts Diagram

42" Mower Deck

MOWER UNDERSIDE Parts Diagram

  • Title

1

Simplicity 1668513SM

Roller W/Bushing

$10.99

$

In Stock, Qty 20+

0

2

Simplicity 2108361

Baffle

$

$

Not available

3

Simplicity 108214

Guard Assembly, Housing

$

$

Not available

4

Simplicity 2108186SM

Clip Baffle

$12.99

$

In Stock, only 1 left!

0

5

Simplicity 2719006

Washer Plain, 1/4"

$

$

Not available

6

Simplicity 2720003

Washer, Lock. 1/4"

$

$

Not available

7

Simplicity 2717005

Nut Hex Full. 1/4"-20 NC

$

$

Not available

8

Simplicity 715016

Capscrew, Hex. 1/4"-20 x 5/8" lg.

$53.99

$

Usually ships in 2-12 days

0

9

Simplicity 2714012

Screw Recessed Hex Self Tapping 1/4"-20 NC x 7/8" lg.

$

$

Not available

10

Simplicity 2702015

Bolt, Carriage, 5/16"-18 NC x 3/4" lg.

$

$

Not available

11

Simplicity 2720001

Washer, Lock,. 5/16"

$

$

Not available

12

Simplicity 2717001

Nut, Hex. Full, 5/16"-18 NC

$

$

Not available

13

Simplicity 2108224ASM

Bracket, Roller, Lower, L.H.

$59.99

$

In Stock, only 2 left!

0

14

Simplicity 2108426SM

Bracket & Shaft Assembly
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 NC

$

$

Not available

16

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

17

Simplicity 2702003

Bolt. Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

18

Simplicity 2108419

Bushings

$

$

Not available

19

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg.

$

$

Not available

20

Simplicity 2116001

Washer

$

$

Not available

21

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1" lg.

$

$

Not available

22

Simplicity 2703004

Bolt, Carriage, 3/8"-16 x 3/4" lg.

$

$

Not available
