990784 - Simplicity 42" Mower Deck DECK ASSEMBLY Parts Diagram

42" Mower Deck

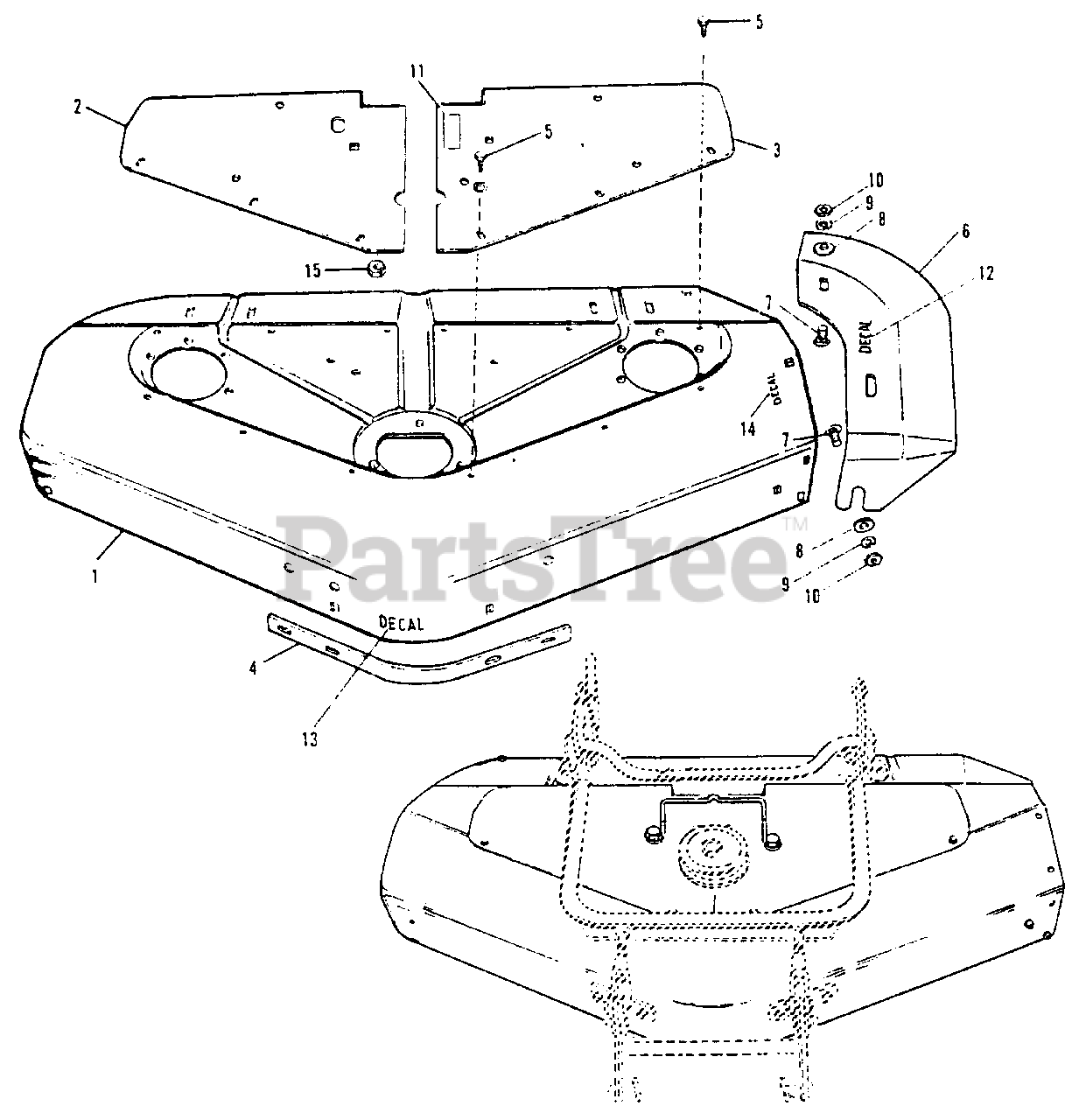

DECK ASSEMBLY Parts Diagram

  • Title

1

Simplicity 2172043

Mower Housing

$

$

Not available

2

Simplicity 172049

Cover, R.H.

$

$

Not available

3

Simplicity 172414

Cover, L.H.

$

$

Not available

4

Simplicity 2108366SM

Bar, Reinforcing
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

5

Simplicity 2715067

Screw, Taptite, 1/4"-20 x 3/8" lg.

$

$

Not available

6

Simplicity 2108525

Deflector

$

$

Not available

7

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available

8

Simplicity 1924356SM

Washer Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 2720002

Washer Lock, 3/8"

$

$

Not available

10

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

11

Simplicity 2174845

Film Belt Instructions

$

$

Not available

12

Simplicity 103031

Decal

$

$

Not available

13

Simplicity 106719

Decal

$

$

Not available

14

Simplicity 106507

Film, Safety

$

$

Not available

15

Simplicity 2718041

Nut Retainer

$

$

Not available

15

Simplicity 172858

Film, Height Adj.

Note: Not Illustrated

$

$

Not available

15

Simplicity 103100

Plate Serial Number

Note: Not Illustrated

$

$

Not available

15

Simplicity 121195

Plate Patent Number

Note: Not Illustrated

$

$

Not available

15

Simplicity 172980

Decal Safety

Note: Not Illustrated

$

$

Not available
