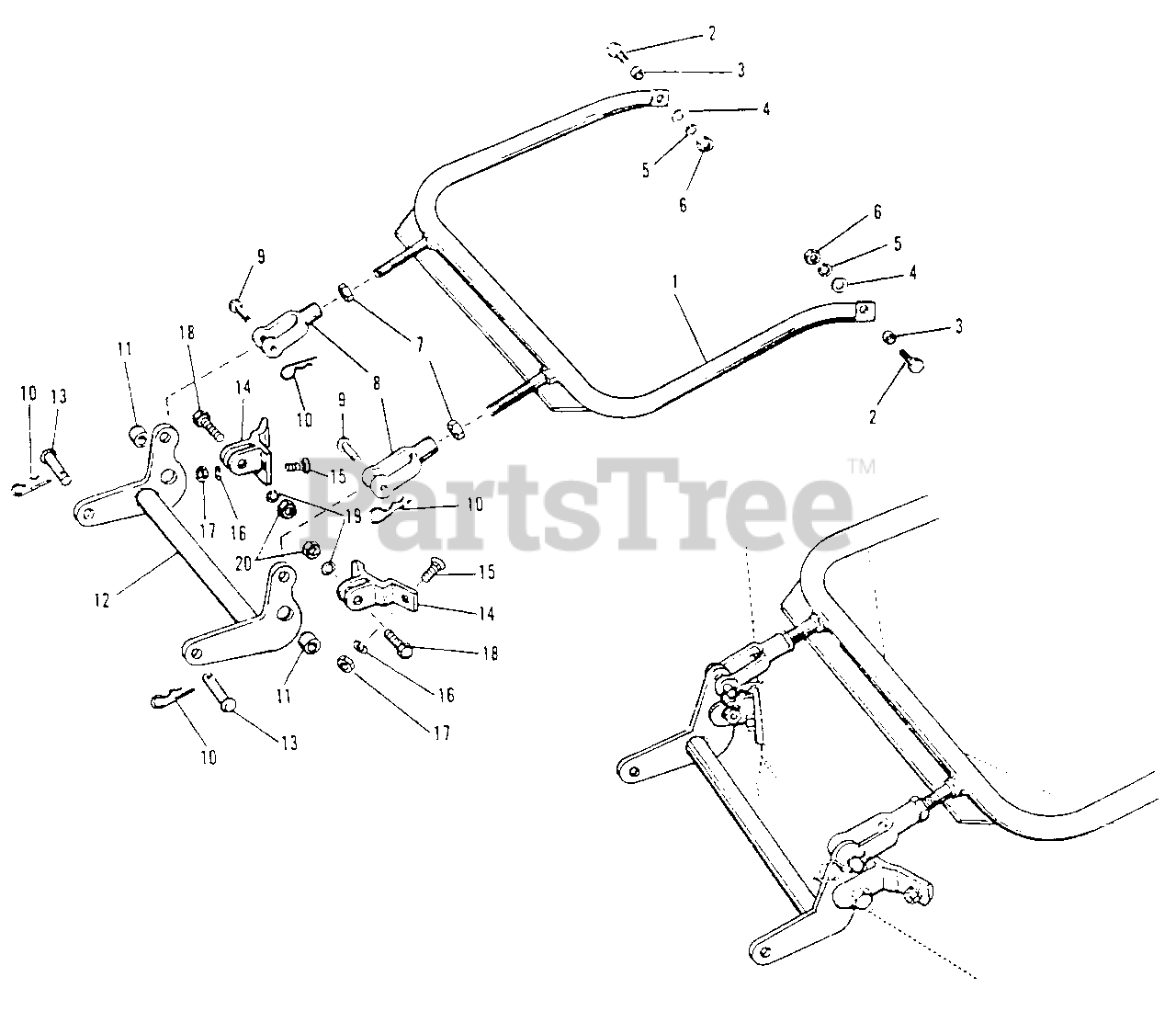

990784 - Simplicity 42" Mower Deck BAIL ASSEMBLY Parts Diagram

42" Mower Deck

BAIL ASSEMBLY Parts Diagram

  • Title

1

Simplicity 171933

Bail Assembly

$

$

Not available

2

Simplicity 2705049

Capscrew, Hex. Hd., 1/2"-13 NC x 1 1/4" lg.

$

$

Not available

3

Simplicity 2105051

Spacer

$

$

Not available

4

Simplicity 2719003

Washer, Plain, 7/16

$

$

Not available

5

Simplicity 2720004

Washer, Lock, 1/2"

$

$

Not available

6

Simplicity 2717006

Nut, Hex., Full, 1/2"-13 NC

$

$

Not available

7

Simplicity 2717016

Nut, Hex., Jam, 1/2"-20 NF

$

$

Not available

8

Simplicity 2154304SM

Yoke End, Adjusting

$67.99

$

Usually ships in 2-12 days

0

9

Simplicity 2154305

Yoke Pin

$

$

Not available

10

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 2105051

Spacer

$

$

Not available

12

Simplicity 2172468A

Rocker Arm
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

13

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

14

Simplicity 2108219SM

Bracket Assembly, Front
(Superseded to 2108219ASM)

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1"

$

$

Not available

16

Simplicity 2720002

Washer, Lock, 3/8" .

$

$

Not available

17

Simplicity 2717003

Nut, Hex. Full, 3/8" 16 NC

$

$

Not available

18

Simplicity 2705049

Capscrew, Hex., 1/2"-13 NC x 1 1/4"

$

$

Not available

19

Simplicity 2720004

Washer, Lock, 1/2" V

$

$

Not available

20

Simplicity 2717006

Nut, Hex., Full, 1/2"-13 NC

$

$

Not available
