990746 - Simplicity 36" Snow Thrower Attachment 36" & 42" Snowthrower - Hitch Parts Diagram

36" Snow Thrower Attachment

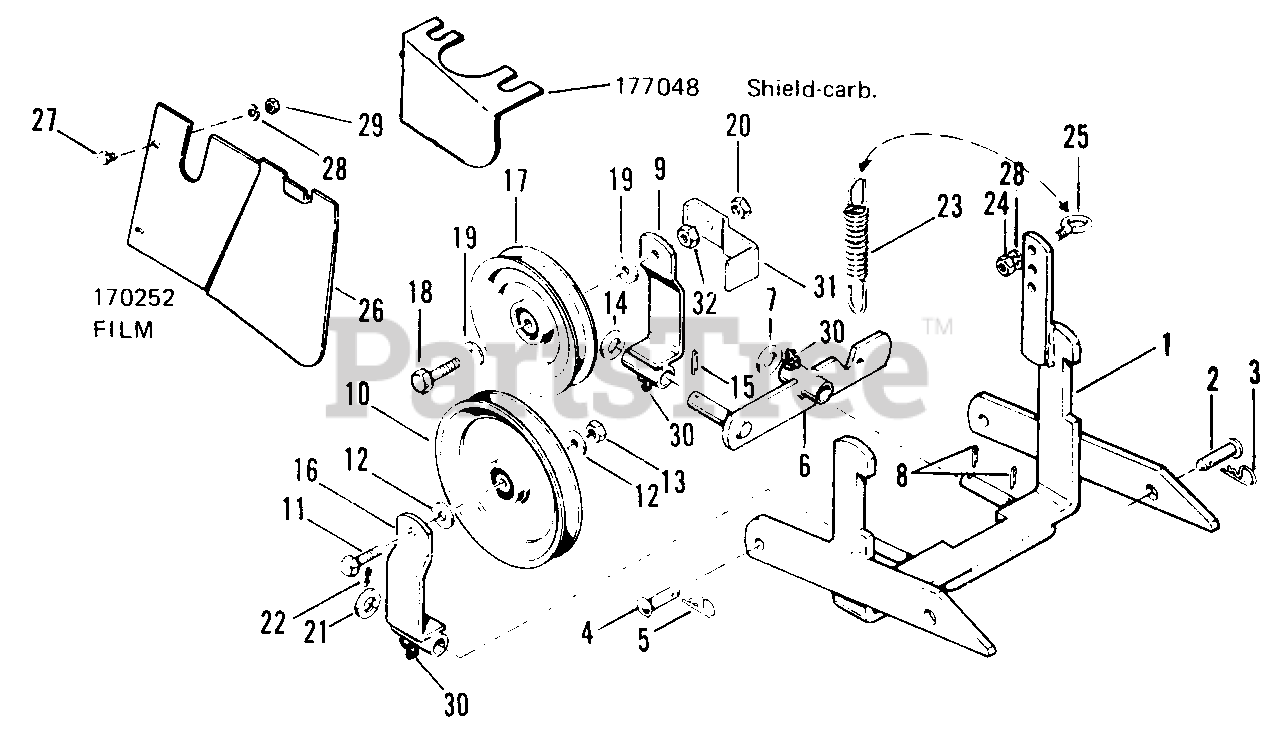

36" & 42" Snowthrower - Hitch Parts Diagram

  • Title

1

Simplicity 173925

Hitch Assembly

$

$

Not available

2

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 14

0

3

Simplicity 2106788

Spring Clip

$

$

Not available

4

Simplicity 118058

Pin

$

$

Not available

5

Simplicity 2106788

Spring Clip

$

$

Not available

6

Simplicity 174332

Idler Lever Assembly

$

$

Not available

7

Simplicity 2153072

Washer

$

$

Not available

8

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

9

Simplicity 174334

Idler Bracket Assembly

$

$

Not available

10

Simplicity 2171246

Idler Pulley

$

$

Not available

11

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-1/2"

$

$

Not available

12

Simplicity 2719002

Plain Washer, 3/8"

$

$

Not available

13

Simplicity 2717510

Hex Nut, Full, 3/8"-16

$

$

Not available

14

Simplicity 2153072

Washer

$

$

Not available

15

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

16

Simplicity 174335

Idler Bracket Assembly

$

$

Not available

17

Simplicity 2171247SM

Idler Pulley

$51.99

$

In Stock, Qty 20+

0

18

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-1/2"

$

$

Not available

19

Simplicity 2719002

Plain Washer, 3/8"

$

$

Not available

20

Simplicity 2717510

Hex Nut, Full, 3/8"-16

$

$

Not available

21

Simplicity 2153072

Washer

$

$

Not available

22

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

23

Simplicity 2173747SM

Spring

$30.99

$

Usually ships in 2-12 days

0

24

Simplicity 2717005

Hex Nut, 1/4"-20

$

$

Not available

25

Simplicity 2172162SM

Eyebolt

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 174438

Deflector

$

$

Not available

27

Simplicity 2705002

Hex Capscrew 1/4"-20 x 1/2"

$

$

Not available

28

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

29

Simplicity 2717005

Hex Nut, 1/4"-20

$

$

Not available

30

Simplicity 2727013

Grease Fitting

$

$

Not available

31

Simplicity 176342

Belt Guide

$

$

Not available

32

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available
