990735 - Simplicity 3-Point Hitch 3 POINT HITCH Parts Diagram

3-Point Hitch

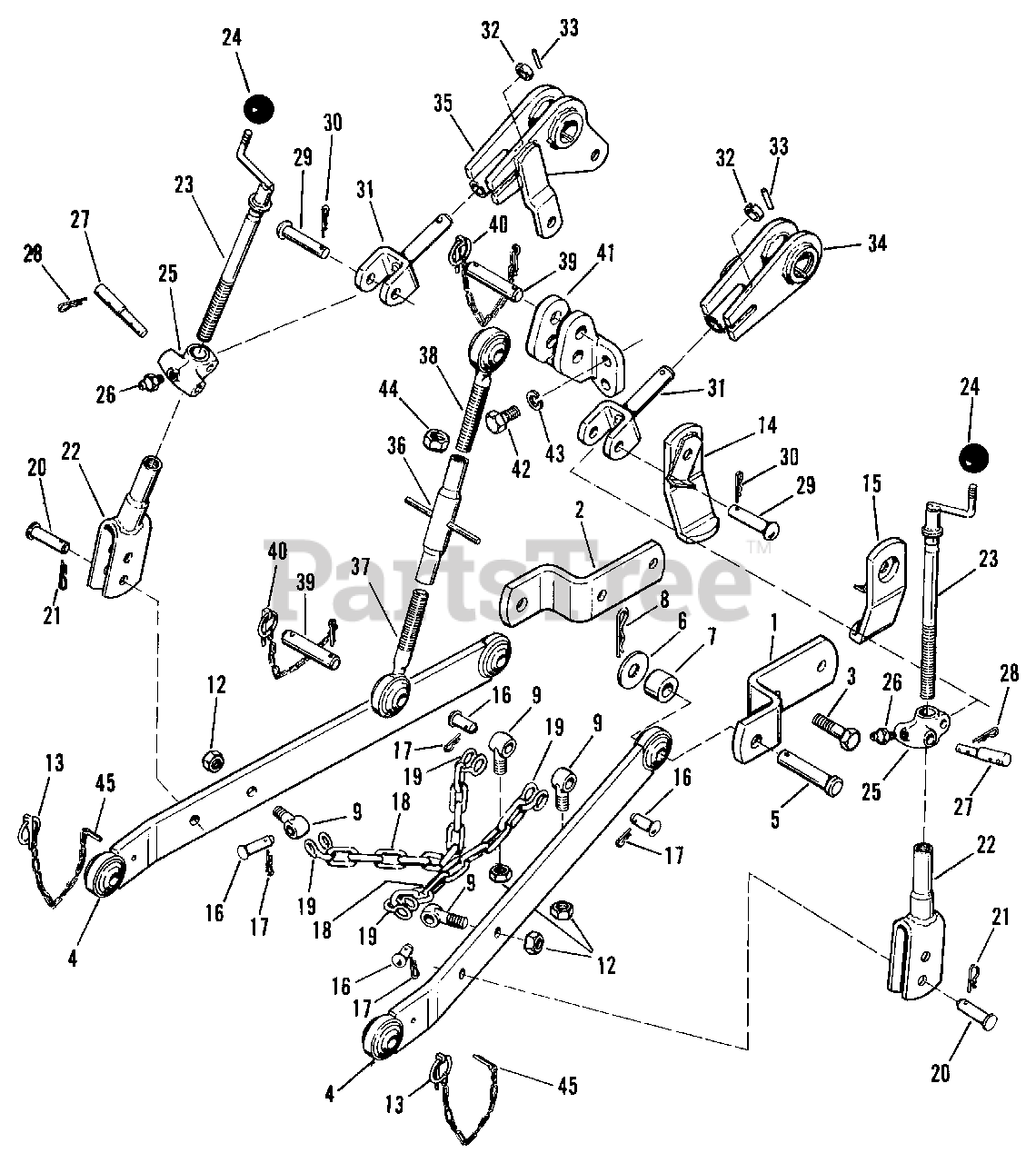

3 POINT HITCH Parts Diagram

  • Title

1

Simplicity 170185

Pull Link Strap, R.H.

$

$

Not available

2

Simplicity 172197

Pull Link Strap, L.H.

$

$

Not available

3

Simplicity 2715141

Hex Capscrew, 1/2"-13 x 2" lg.

$

$

Not available

4

Simplicity 168293

Pull Link Assembly

$

$

Not available

5

Simplicity 173641

Pin

$

$

Not available

6

Simplicity 2116001

Washer

$

$

Not available

7

Simplicity 173630

Collar

$

$

Not available

8

Simplicity 2106788

Hairpin Clip

$

$

Not available

9

Simplicity 168285

Eyebolt, 1/2"-20

$

$

Not available

10

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

11

Simplicity 2717016

Hex Nut, 1/2"-20

$

$

Not available

12

Simplicity 2717516

Hex Nut, Center Lock 1/2"-20

$

$

Not available

13

Simplicity 171689

Retaining Pin

$

$

Not available

14

Simplicity 173634

Rub Bar Assembly, L.H.

$

$

Not available

15

Simplicity 173635

Rub Bar Assembly, R.H.

$

$

Not available

16

Simplicity 172806

Pin
(Superseded to 5048970SM)

$11.99

$

In Stock, only 1 left!

0

17

Simplicity 2106787

Hairpin Clip

$

$

Not available

18

Simplicity 173006

Chain, 9 links

$

$

Not available

19

Simplicity 168284

Shackle

$

$

Not available

20

Simplicity 1722819SM

Pin

$6.99

$

In Stock, Qty 5

0

21

Simplicity 2106788

Hairpin Clip

$

$

Not available

22

Simplicity 171747

Clevis Assembly

$

$

Not available

23

Simplicity 171701

Link Assembly

$

$

Not available

24

Simplicity 1729255SM

Knob

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 171825

Trunnion

$

$

Not available

26

Simplicity 2727014

Grease Fitting

$

$

Not available

27

Simplicity 173386

Pin

$

$

Not available

28

Simplicity 2106788

Hairpin Clip

$

$

Not available

29

Simplicity 1729275SM

Pin

$18.99

$

Usually ships in 2-12 days

0

30

Simplicity 2106788

Hairpin Clip

$

$

Not available

31

Simplicity 171706

Clevis Assembly

$

$

Not available

32

Simplicity 171709

Collar

$

$

Not available

33

Simplicity 2723008

Roll Pin

$

$

Not available

34

Simplicity 171710

Lift Arm Assembly, R.H.

$

$

Not available

35

Simplicity 171714

Lift Arm Assembly, L.H.

$

$

Not available

36

Simplicity 2171720

Upper Link Assembly

$

$

Not available

37

Simplicity 2168281

Stud Assembly, R.H.

$

$

Not available

38

Simplicity 2171693

Stud Assembly, L.H.

$

$

Not available

39

Simplicity 2171695SM

Pin

$36.99

$

Usually ships in 2-12 days

0

40

Simplicity 171689

Retaining Pin

$

$

Not available

41

Simplicity 171722

Upper Link Support

$

$

Not available

42

Simplicity 2715092

Hex Capscrew, 7/16"-14 x 1-1/4" lg.

$

$

Not available

43

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

44

Simplicity 718005

Hex Nut. 3/4"-10 L.H.

$

$

Not available

45

Simplicity 722013

Cotter Pin

$

$

Not available
