990730 - Simplicity 400 lb. Front End Loader Frame and Hydraulics Group - Dump (3689I03) Parts Diagram

400 lb. Front End Loader

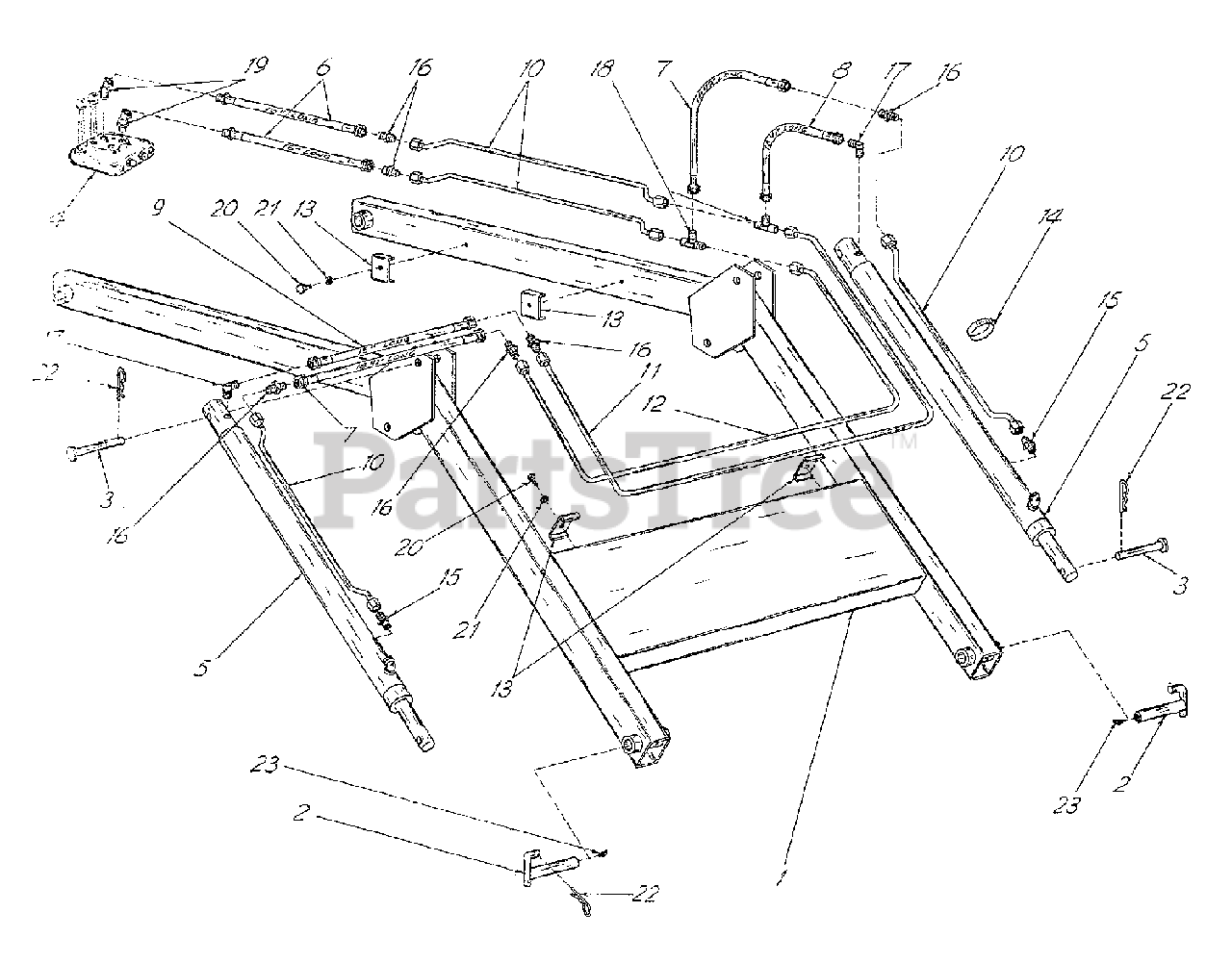

Frame and Hydraulics Group - Dump (3689I03) Parts Diagram

  • Title

1

Simplicity 4726

WELDED ASSEMBLY, Lift

$

$

Not available

2

Simplicity 4727

PIN, Lock

$

$

Not available

3

Simplicity 4735

PIN

$

$

Not available

4

Simplicity 4167

VALVE, Hydaulic

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 4736

HYDRAULIC, Cylinder

$

$

Not available

6

Simplicity 1810-85

HYDRAULIC, Hose, 1/4 ID x 16-1/2 " Long

$

$

Not available

7

Simplicity 1810-72

HYDRAULIC, Hose, 1/4 ID x 18-1/2" Long

$

$

Not available

8

Simplicity 1810-81

HYDRAULIC, Hose, 1/4 ID x 13-1/2" Long

$

$

Not available

9

Simplicity 1810-82

HYDRAULIC, Hose, 1/4 ID x 15" Long

$

$

Not available

10

Simplicity 4740

TUBE ASSEMBLY, Hydraulic

$

$

Not available

11

Simplicity 4742

TUBE ASSEMBLY, Hydraulic

$

$

Not available

12

Simplicity 4741

TUBE ASSEMBLY, Hydraulic

$

$

Not available

13

Simplicity 4745

CLAMP, Tube

$

$

Not available

14

Simplicity 4340

CLAMP, Hose

$

$

Not available

15

Simplicity 4738

ADAPTER, Straight

$

$

Not available

16

Simplicity 4749

ADAPTER, Straight

$

$

Not available

17

Simplicity 4339

ELBOW ADAPTER, 90 Degrees

$

$

Not available

18

Simplicity 4737

UNION TEE

$

$

Not available

19

Simplicity 3536

UNION ADAPTER, 45 Degrees

$

$

Not available

20

Simplicity 1111-150

BOLT, 5/16 NC x 3/4 Hex Head Capscrew

$

$

Not available

21

Simplicity 1113-10

WASHER, 5/16 Lock

$

$

Not available

22

Simplicity 2124-3

PIN, Hair, #3
(Superseded to 5021243)

$84.99

$

Usually ships in 2-12 days

0

23

Simplicity 1123-2

FITTING, Grease, 45 Degrees

$

$

Not available
