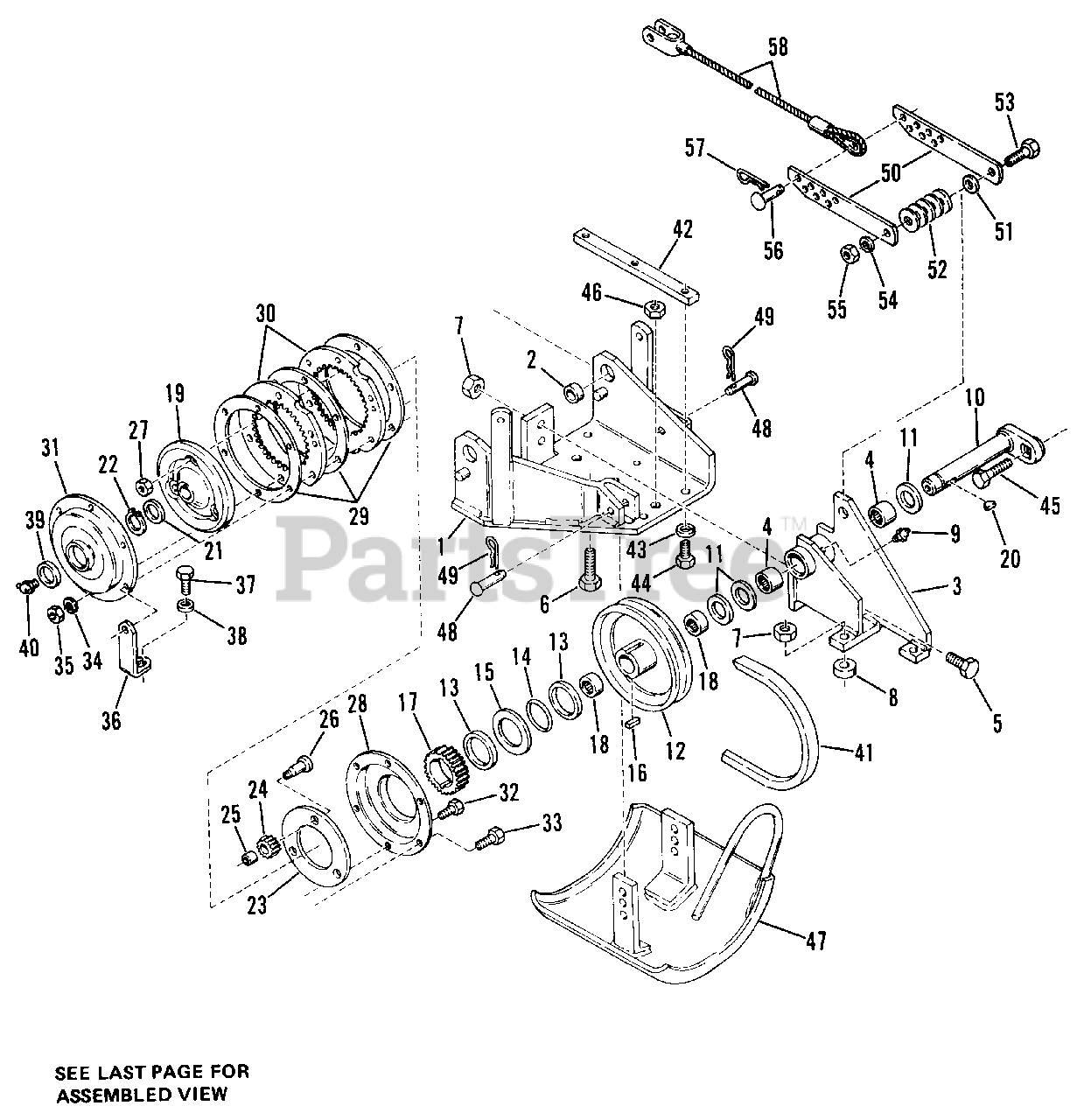

990707 - Simplicity 57" Sickle Bar DRIVE ASSEMBLY Parts Diagram

57" Sickle Bar

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Simplicity 174184

Mounting Plate Assembly

$

$

Not available

2

Simplicity 173664

Spacer

$

$

Not available

3

Simplicity 174150

Bearing Housing

$

$

Not available

4

Simplicity 173739

Bearings

$

$

Not available

5

Simplicity 2715092

Hex Head Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

6

Simplicity 2715054

Hex Head Capscrew

$

$

Not available

7

Simplicity 2717519

Full Hex Lock Nut, 7/16"-14

$

$

Not available

8

Simplicity 174119

Spacer

$

$

Not available

9

Simplicity 2727002

Grease Fitting

$

$

Not available

10

Simplicity 174193

Crankshaft

$

$

Not available

11

Simplicity 2173140

Washer

$

$

Not available

12

Simplicity 173557

Hub and Pulley

$

$

Not available

13

Simplicity 161037

Washer

$

$

Not available

14

Simplicity 157326

Ring

$

$

Not available

15

Simplicity 161075

Seal

$

$

Not available

16

Simplicity 173570

Key

$

$

Not available

17

Simplicity 173553

Sun Gear

$

$

Not available

18

Simplicity 173738

Bearing

$

$

Not available

19

Simplicity 173542

Spider Hub

$

$

Not available

20

Simplicity 2725003

Woodruff Key, No. 9

$

$

Not available

21

Simplicity 2173668SM

Washer

$9.49

$

In Stock, only 2 left!

0

22

Simplicity 8051040

Retaining Ring

$

$

Not available

23

Simplicity 157333

Ring, Bolt

$

$

Not available

24

Simplicity 157335

Pinion

$

$

Not available

25

Simplicity 157337

Needle Bearing

$

$

Not available

26

Simplicity 157336

Pinion Pin

$

$

Not available

27

Simplicity 2717511

Full Hex Lock Nut, 5/16"-18

$

$

Not available

28

Simplicity 161054

Left Hand Cover

$

$

Not available

29

Simplicity 161129

Gasket

$

$

Not available

30

Simplicity 157382

Ring Gear

$

$

Not available

31

Simplicity 173550

Cover

$

$

Not available

32

Simplicity 2715048

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

33

Simplicity 2715073

Hex Capscrew, 5/16"-18 x 7/8"

$

$

Not available

34

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

35

Simplicity 2717001

Hex Full Nut, 5/16"-18

$

$

Not available

36

Simplicity 174517

Bracket

$

$

Not available

37

Simplicity 2715121

Hex Capscrew, 5/16"-18 x 1"

$

$

Not available

38

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

39

Simplicity 2118118SM

Oil Seal

$10.99

$

In Stock, Qty 20+

0

40

Simplicity 2727004

Grease Fitting

$

$

Not available

41

Simplicity 2173948

"V" Belt

$

$

Not available

42

Simplicity 173632

Spacer Bar

$

$

Not available

43

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

44

Simplicity 2715073

Hex Head Capscrew, 5/16"-18 x 7/8"

$

$

Not available

45

Simplicity 715149

Hex Head Capscrew

$

$

Not available

46

Simplicity 2717519

Full Hex Lock Nut

$

$

Not available

47

Simplicity 174178

Shoe Assembly

$

$

Not available

48

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 14

0

49

Simplicity 2106788

Spring Clip

$

$

Not available

50

Simplicity 174238

Bracket

$

$

Not available

51

Simplicity 121163

Pinion Spacer

$

$

Not available

52

Simplicity 2156089

Washer

$

$

Not available

53

Simplicity 2715099

Hex Head Screw, 3/8"-16 x 1-1/2"

$

$

Not available

54

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

55

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

56

Simplicity 1729281SM

Pin

$8.49

$

In Stock, only 1 left!

0

57

Simplicity 2106787

Spring Clip

$

$

Not available

58

Simplicity 174235

Cable Assembly

$

$

Not available
