990689 - Simplicity Front Light Kit FRONT LIGHT KIT Parts Diagram

Front Light Kit

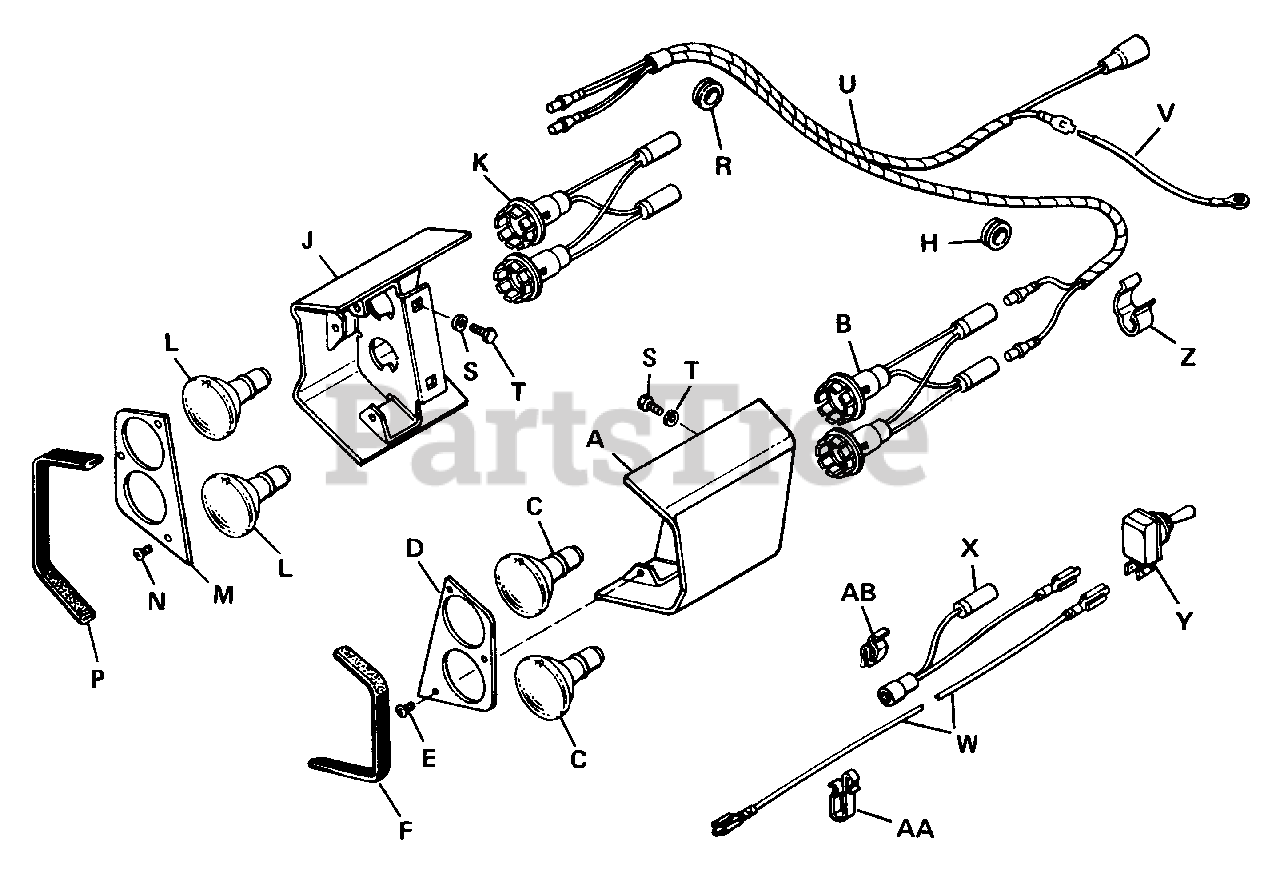

FRONT LIGHT KIT Parts Diagram

  • Title

A

Simplicity 172286

Shroud & Plate Assy. L.H.

$

$

Not available

B

Simplicity 172290

Lamp Socket & Wire Assy.

$

$

Not available

C

Simplicity 172048

Headlight

$

$

Not available

D

Simplicity 172243

Plate, Front

$

$

Not available

E

Simplicity 714019

Screw, Round Head Phillips Swageform No. 12-24 x 1/2"

$

$

Not available

F

Simplicity 172269

Moulding

$

$

Not available

G

Simplicity 172156

Adhesive No. 1099, 3M

Note: Not Illustrated

$

$

Not available

H

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

J

Simplicity 172285

Shroud & Plate Assy. R.H.

$

$

Not available

K

Simplicity 172290

Lamp Socket & Wire Assy.

$

$

Not available

L

Simplicity 172048

Headlight

$

$

Not available

M

Simplicity 172243

Plate, Front

$

$

Not available

N

Simplicity 714019

Screw, Round Head, Phillips Swageform No. 12-24 x 1/2"

$

$

Not available

P

Simplicity 172269

Moulding

$

$

Not available

Q

Simplicity 172156

Adhesive, No. 1099, 3M

Note: Not Illustrated

$

$

Not available

R

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

S

Simplicity 2705030

Hex Cap Screw, 1/4"-20 N.C. x 3/4"

$

$

Not available

T

Simplicity 2720003

Lock Washer, 1/4" Std.

$

$

Not available

U

Simplicity 172294

Harness Assy.

$

$

Not available

V

Simplicity 172295

Wire Assy., Ground

$

$

Not available

W

Simplicity 172296

Wire Assy., Light Switch

$

$

Not available

X

Simplicity 172297

Wire Assy., Indicator Lamp

$

$

Not available

Y

Simplicity 2122184SM

Switch, Toggle

$22.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2172436SM

Cable Clip Tinnerman, Front Frame

$4.49

$

In Stock, only 3 left!

0

AA

Simplicity 2172434SM

Cable Clip Tinnerman, Rear Frame

$4.99

$

Usually ships in 2-12 days

0

AB

Simplicity 172433

Cable Clip Tinnerman, Top of Grille

$

$

Not available
