990688 - Simplicity 38" Lawn Revitalizer Attachment HOUSING, TINE AND DRIVE Parts Diagram

38" Lawn Revitalizer Attachment

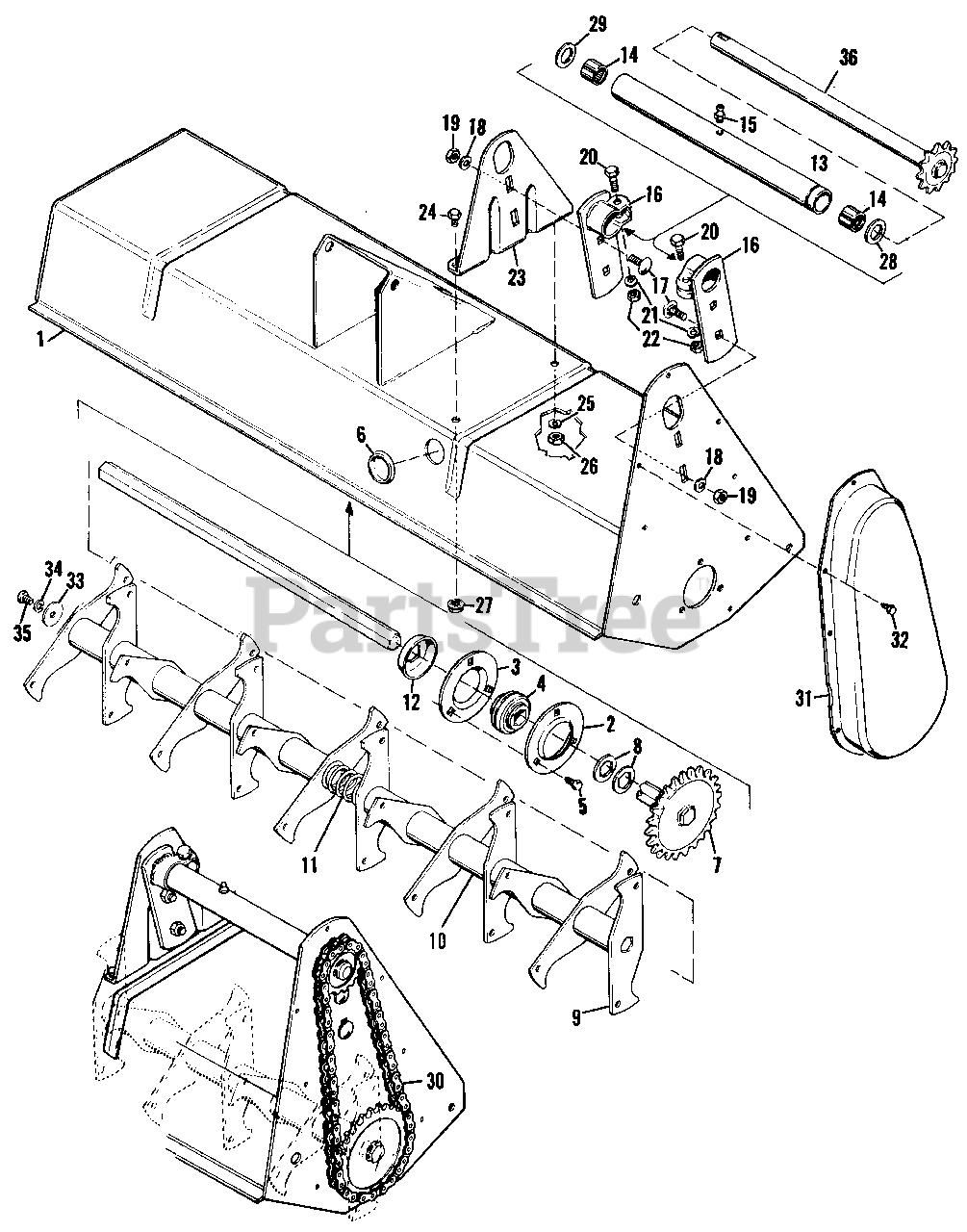

HOUSING, TINE AND DRIVE Parts Diagram

  • Title

1

Simplicity 172307

Housing Assembly

$

$

Not available

2

Simplicity 2172972

Bearing Flange

$

$

Not available

3

Simplicity 2172973

Bearing Flange

$

$

Not available

4

Simplicity 172347

Bearing

$

$

Not available

5

Simplicity 2715083

Hex Hd. Swageform Screw, 5/16"-18 x 1/2" lg.

$

$

Not available

6

Simplicity 172934

Plug Button

$

$

Not available

7

Simplicity 172338

Tine Shaft Assembly

$

$

Not available

8

Simplicity 172332

Washer (Hex)

$

$

Not available

9

Simplicity 2170333

Tine

$

$

Not available

10

Simplicity 170337

Spacer

$

$

Not available

11

Simplicity 170417

Spring

$

$

Not available

12

Simplicity 172874

Trash Guard

$

$

Not available

13

Simplicity 172906

Bearing Housing

$

$

Not available

14

Simplicity 2172747SM

Needle Bearing

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 2727013

Grease Fitting

$

$

Not available

16

Simplicity 172895

Clamp Support Assembly

$

$

Not available

17

Simplicity 702025

Carriage Bolt, 7/16"-14 x 1" lg.

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

19

Simplicity 2717022

Hex Jam Nut, 7/16"-14

$

$

Not available

20

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

21

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

22

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

23

Simplicity 172252

Bearing Support

$

$

Not available

24

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/18" lg.

$

$

Not available

25

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

26

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

27

Simplicity 2718033

Special Nut, 5/16"-18

$

$

Not available

28

Simplicity 106069

Washer

$

$

Not available

29

Simplicity 2101022

Washer

$

$

Not available

30

Simplicity 172891

Chain

$

$

Not available

31

Simplicity 172983

Chain Guard

$

$

Not available

32

Simplicity 2715067

Taptite Screw, 1/4"-20 x 3/8"

$

$

Not available

33

Simplicity 2123144

Washer

$

$

Not available

34

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

35

Simplicity 2705026

Hex Capscrew, 5/16"-18 x 1/2" lg.

$

$

Not available

36

Simplicity 172340

Drive Shaft Assembly

$

$

Not available
