990688 - Simplicity 38" Lawn Revitalizer Attachment CLUTCH AND BELT DRIVE Parts Diagram

38" Lawn Revitalizer Attachment

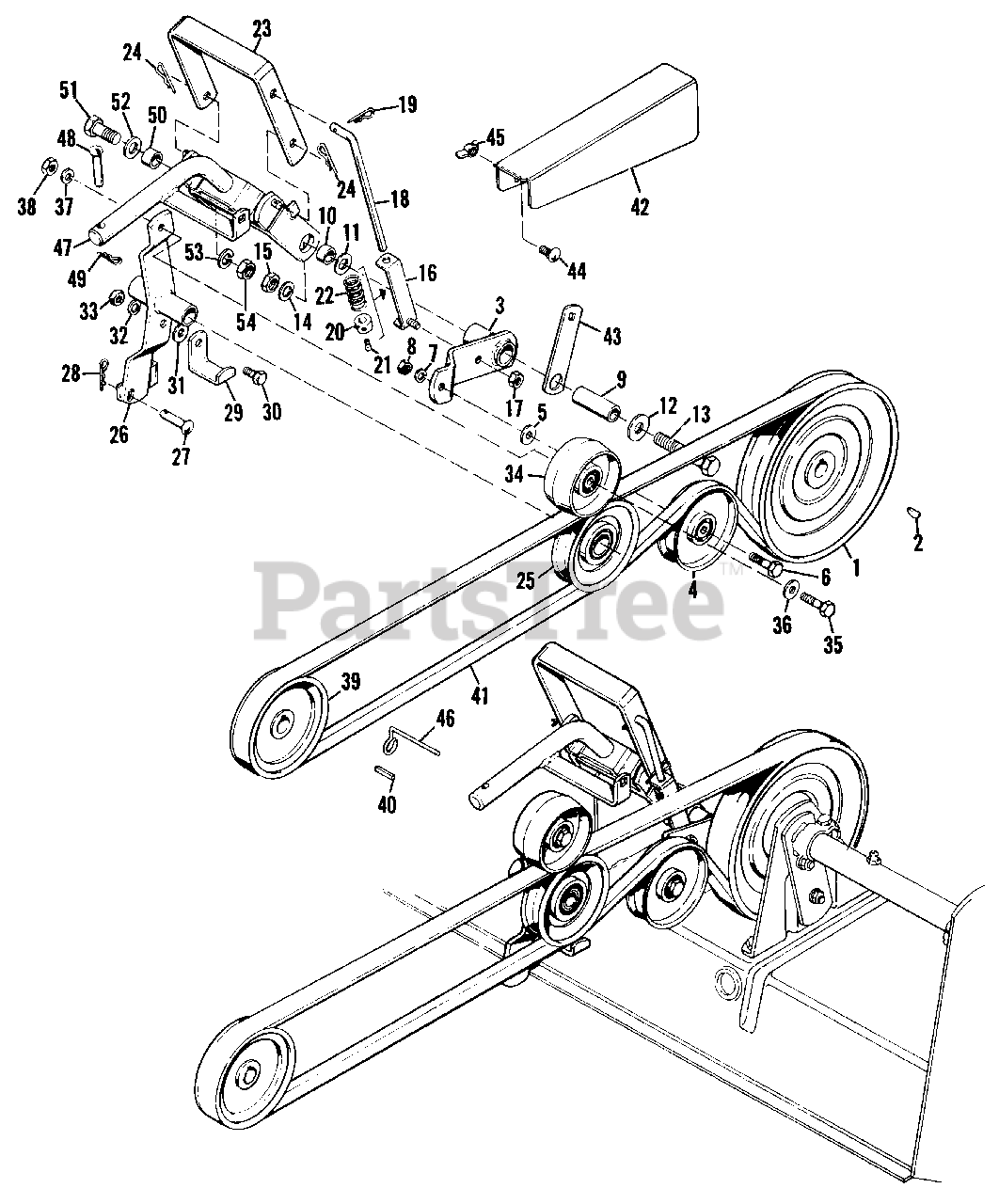

CLUTCH AND BELT DRIVE Parts Diagram

  • Title

1

Simplicity 2105302SM

Pulley

$142.99

$

Usually ships in 2-12 days

0

2

Simplicity 2725003

Key

$

$

Not available

3

Simplicity 2105295ASM

Clutch Lever Assembly

$61.99

$

Usually ships in 2-12 days

0

4

Simplicity 2105306

Idler Pulley

$

$

Not available

5

Simplicity 2719002

Plain Washer 5/16"

$

$

Not available

6

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

7

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

8

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

9

Simplicity 2105339ASM

Spacer

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 2105346SM

Spacer

$28.99

$

In Stock, only 1 left!

0

11

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

12

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

13

Simplicity 2715093

Hex Capscrew, 7/16"-14 x 3-1/2" lg.

$

$

Not available

14

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

15

Simplicity 2717022

Hex Nut, Jam, 7/16"-14

$

$

Not available

16

Simplicity 2158406

Rod Guide Assembly

$

$

Not available

17

Simplicity 2717511

Hex Nut, Full Lock, 5/16"-18

$

$

Not available

18

Simplicity 105343

Clutch Rod

$

$

Not available

19

Simplicity 2106787

Spring Clip

$

$

Not available

20

Simplicity 1729276SM

Set Collar

$

$

Not available

21

Simplicity 2713001

Sq. Hd. Set Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

22

Simplicity 162065

Spring

$

$

Not available

23

Simplicity 105303

Clutch Handle

$

$

Not available

24

Simplicity 2106787

Spring Clip

$

$

Not available

25

Simplicity 2105380SM

Idler Pulley

$152.99

$

Usually ships in 2-12 days

0

26

Simplicity 2105322

Idler Arm Assembly

$

$

Not available

27

Simplicity 2105306

Pin

$

$

Not available

28

Simplicity 2106787

Spring Clip

$

$

Not available

29

Simplicity 2105351SM

Belt Guard

$

$

Not available

30

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

31

Simplicity 2719002

Plain Washer, 3/8"

$

$

Not available

32

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

33

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

34

Simplicity 2164083

Idler Pulley

$

$

Not available

35

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

36

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

37

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

38

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

39

Simplicity 2164202SM

Drive Pulley

$61.99

$

Usually ships in 2-12 days

0

40

Simplicity 2805850SM

Key

$

$

Not available

41

Simplicity 2105340SM

"V" Belt

$54.99

$

In Stock, only 3 left!

0

42

Simplicity 2105326A

Belt Guard

$

$

Not available

43

Simplicity 2105359ASM

Belt Guard Support

$5.49

$

Usually ships in 2-12 days

0

44

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4" lg.

$

$

Not available

45

Simplicity 718006

Wing Nut, 5/16"-18

$

$

Not available

46

Simplicity 2167032SM

Belt Stop

$31.99

$

Usually ships in 2-12 days

0

47

Simplicity 105329

Lift Bar Assembly

$

$

Not available

48

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

49

Simplicity 2106787

Spring Clip

$

$

Not available

50

Simplicity 2105346SM

Spacer

$28.99

$

In Stock, only 1 left!

0

51

Simplicity 2705042

Hex Capscrew, 7/16"-14 x 1-1/4" lg.

$

$

Not available

52

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

53

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

54

Simplicity 2717022

Hex Nut, Jam, 7/16"-14

$

$

Not available
