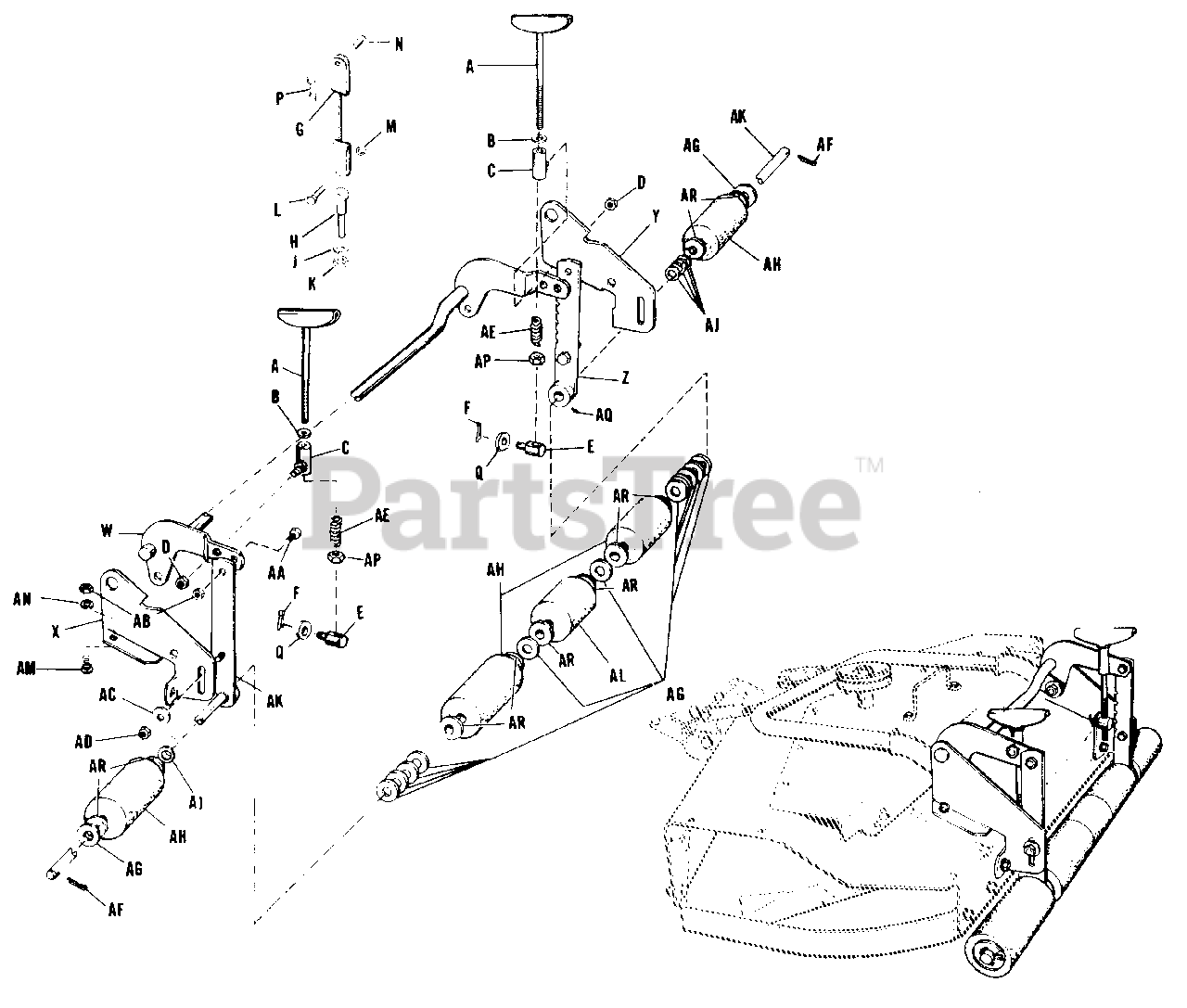

990670 - Simplicity 42" Mower Deck ROLLER ASSEMBLY Parts Diagram

42" Mower Deck

ROLLER ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2108415

Screw Assembly Adjusting

$

$

Not available

B

Simplicity 2719001

Washer, Plain 3/8 "

$

$

Not available

C

Simplicity 2108241SM

Socket Assembly, Crank
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

D

Simplicity 2717510

Nut Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

E

Simplicity 2108512SM

Pivot

$36.99

$

In Stock, only 1 left!

0

F

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

G

Simplicity 172860

Cable Assembly, Lift

$

$

Not available

H

Simplicity 2171815SM

Eye Bolt

$54.99

$

In Stock, only 1 left!

0

J

Simplicity 2720002

Lock Washer, 3/8" Std.

$

$

Not available

K

Simplicity 2717003

Nut, Hex., Full, 3/8-16 NC

$

$

Not available

L

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 x 1" lg.

$

$

Not available

M

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

N

Simplicity 1708298SM

Pin, Lock

$

$

Not available

P

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

Q

Simplicity 2719002

Washer, Plain, 3/8" Std.

$

$

Not available

W

Simplicity 2172015ASM

Arm Assembly, Rocker

$116.99

$

Usually ships in 2-12 days

0

X

Simplicity 2172045ASM

Bracket, Roller, R.H.

$34.99

$

Usually ships in 2-12 days

0

Y

Simplicity 2172044SM

Bracket, Roller, L.H.
(Superseded to 2172044ASM)

$30.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2172412

Bar Assembly, Roller

$

$

Not available

AA

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

AB

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AC

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

AD

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

AE

Simplicity 2108360SM

Spring, Adj. Screw

$5.49

$

In Stock, only 1 left!

0

AF

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg.

$

$

Not available

AG

Simplicity 2116001

Washer

$

$

Not available

AH

Simplicity 2108432SM

Roller W/Bushing

$36.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

AK

Simplicity 1657894

Shaft & Support Arm.
(Superseded to 1657894ASM)

$286.99

$

Usually ships in 2-12 days

0

AL

Simplicity 1668513SM

Roller W/Bushing

$10.99

$

In Stock, Qty 20+

0

AM

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

AN

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AP

Simplicity 2717013

Nut, Hex, Full 3/8"-16 NC

$

$

Not available

AQ

Simplicity 2713505

Set Screw 1/4"-20 NC x 5/16" lg.

$

$

Not available

AR

Simplicity 2108419

Bushings

$

$

Not available
