990670 - Simplicity 42" Mower Deck DECK ASSEMBLY Parts Diagram

42" Mower Deck

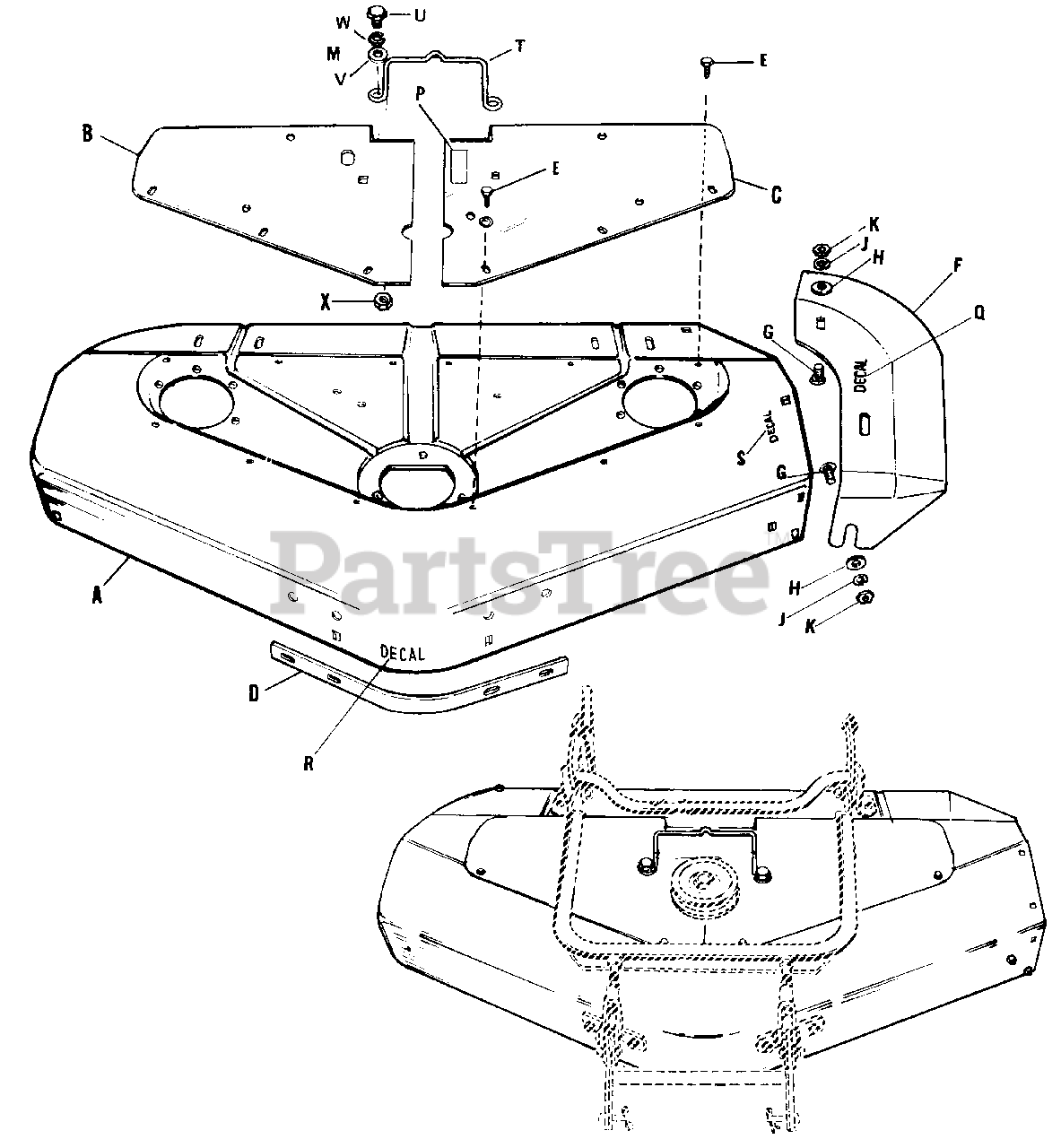

DECK ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2172043

Mower Housing

$

$

Not available

B

Simplicity 172049

Cover, R.H.

$

$

Not available

C

Simplicity 172414

Cover, L.H.

$

$

Not available

D

Simplicity 2108366SM

Bar, Reinforcing
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

E

Simplicity 2715067

Screw, Taptite, 1/4-20 x 3/8" lg.

$

$

Not available

F

Simplicity 2108525

Deflector

$

$

Not available

G

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4" lg.

$

$

Not available

H

Simplicity 1924356SM

Washer-Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

J

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

K

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

K

Simplicity 172858

Film, Height Adj.

Note: Not Illustrated

$

$

Not available

K

Simplicity 103100

Plate, Serial Number

Note: Not Illustrated

$

$

Not available

K

Simplicity 121195

Plate, Patent Number

Note: Not Illustrated

$

$

Not available

P

Simplicity 170731

Film-Belt Instructions

$

$

Not available

Q

Simplicity 103031

Decal

$

$

Not available

R

Simplicity 106719

Decal

$

$

Not available

S

Simplicity 2108507

Film, Safety

$

$

Not available

T

Simplicity 2170011

Belt Guide Assembly

$

$

Not available

U

Simplicity 2705001

Hex Cap Screw 5/16"-18 x 7/8"

$

$

Not available

V

Simplicity 2719002

Plain Washer 5/16

$

$

Not available

W

Simplicity 2720001

Lock Washer, 5/16

$

$

Not available

X

Simplicity 2718041

Nut Retainer

$

$

Not available

X

Simplicity 108828

Decal-Safety Stds.

Note: Not Illustrated

$

$

Not available
