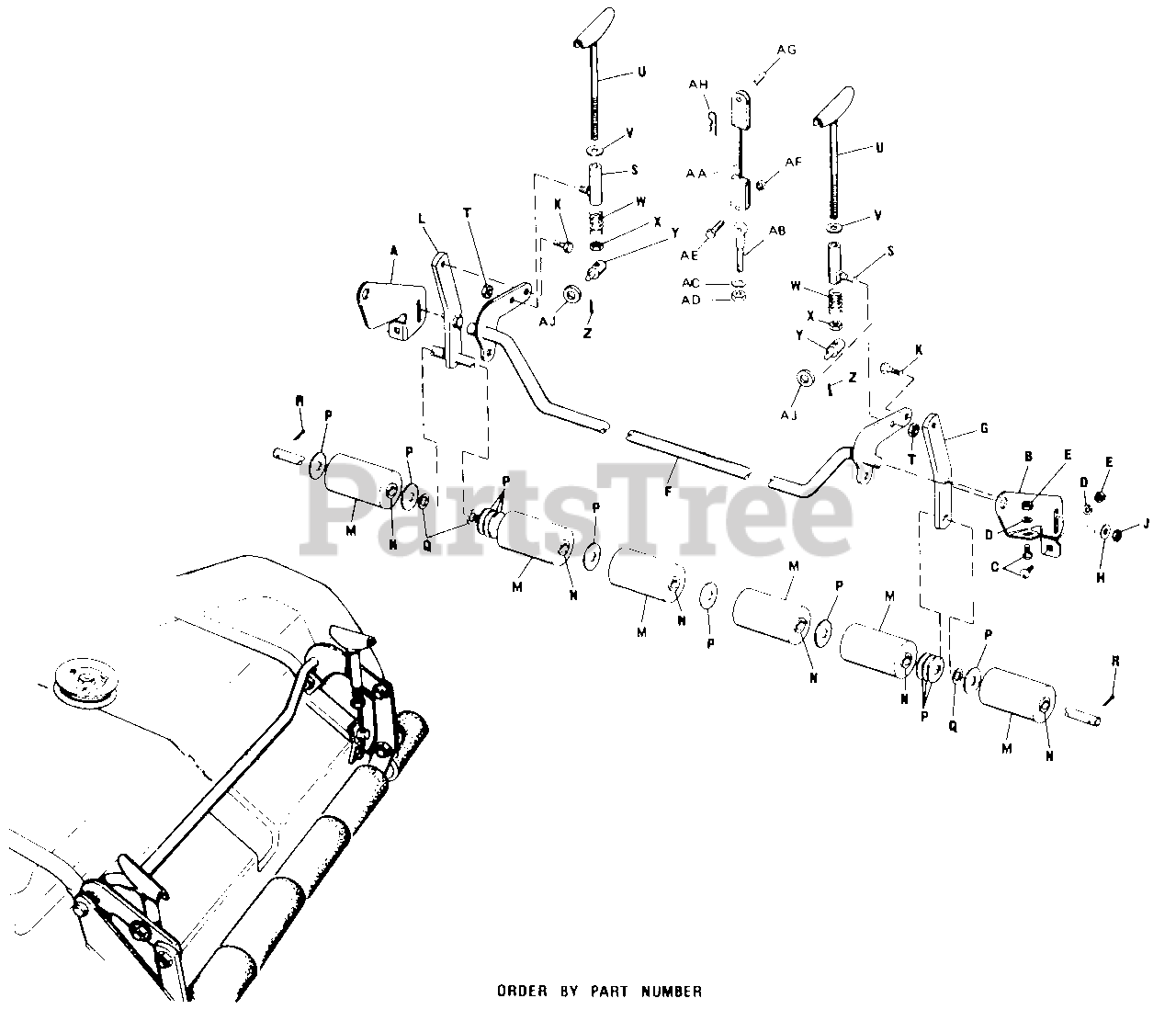

990669 - Simplicity 48" Mower Deck ROLLER ASSEMBLY Parts Diagram

48" Mower Deck

ROLLER ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2172047SM

R.H. Roller Bracket
(Superseded to 2172047ASM)

$51.99

$

Usually ships in 2-12 days

0

B

Simplicity 2172046ASM

L.H. Roller Bracket

$103.99

$

Usually ships in 2-12 days

0

C

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

D

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

E

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

F

Simplicity 2172015ASM

Rocker Assembly Arm

$116.99

$

Usually ships in 2-12 days

0

G

Simplicity 2108465

Roller Bar Assembly L.H.

$

$

Not available

H

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

J

Simplicity 2717510

Full Hex. Nut, 3/8"-16

$

$

Not available

K

Simplicity 2705005

Hex. Cap Screw, 3/8"-16 x 1"

$

$

Not available

L

Simplicity 2170286

Roller Shaft Assembly

$

$

Not available

M

Simplicity 2108432SM

Roller W/Bushing

$36.99

$

Usually ships in 2-12 days

0

N

Simplicity 2108419

Bushing

$

$

Not available

P

Simplicity 2116001

Washer

$

$

Not available

Q

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

R

Simplicity 2722011

Cotter Pin, 3/16"-1"

$

$

Not available

S

Simplicity 2108241SM

Socket Crank Assembly
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

T

Simplicity 2717510

Full Hex. Nut, 3/16"-16

$

$

Not available

U

Simplicity 2108415

Adjusting Screw Assembly

$

$

Not available

V

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

W

Simplicity 2108360SM

Adjusting Screw Spring

$5.49

$

In Stock, only 1 left!

0

X

Simplicity 2717013

Hex. Jam Nut, 3/8"-16

$

$

Not available

Y

Simplicity 2108512SM

Pivot

$36.99

$

In Stock, only 1 left!

0

Z

Simplicity 2722016

Cotter Pin, 3/32" x 3/4"

$

$

Not available

AA

Simplicity 172860

Cable Assembly, Lift

$

$

Not available

AB

Simplicity 2171815SM

Eye Bolt

$54.99

$

In Stock, only 1 left!

0

AC

Simplicity 2720002

Washer, Lock, 3/8" Std.

$

$

Not available

AD

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AE

Simplicity 2705005

Screw, Cap, Hex, 3/8"-16 x 1" lg.

$

$

Not available

AF

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

AG

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AH

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AJ

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available
