990666 - Simplicity 19" Walk-Behind Mower Electric Start - 19" Push Mower Parts Diagram

19" Walk-Behind Mower

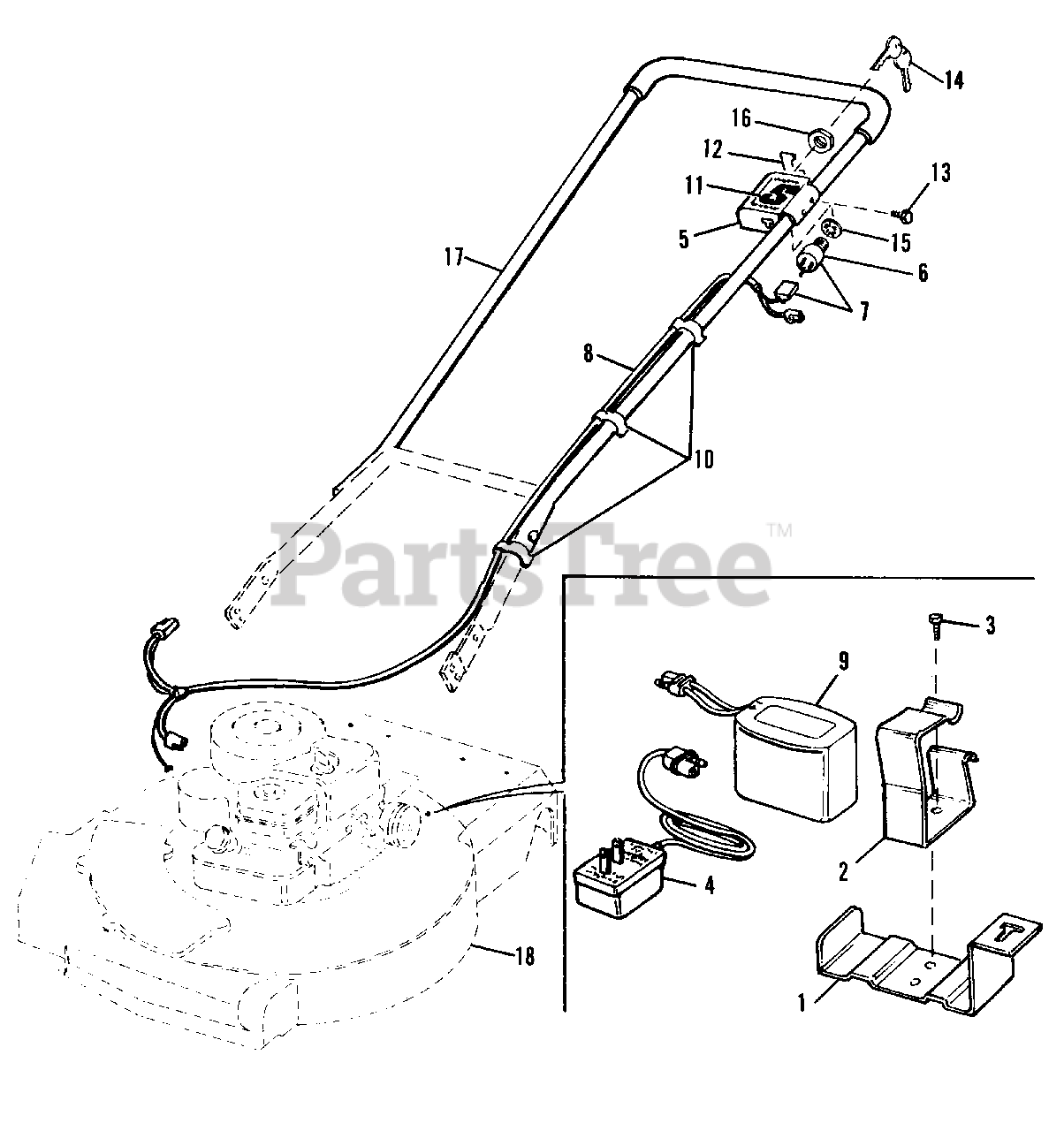

Electric Start - 19" Push Mower Parts Diagram

  • Title
1

Simplicity 171476

SUPPORT, Battery

$

$

Not available

2

Simplicity 170298

CLIP, Spring, Battery

$

$

Not available

3

Simplicity 930611

SCREW, Thd. Form, 10-24 x 3/8

$

$

Not available

4

Simplicity 172431

CHARGER, Battery

$

$

Not available

5

Simplicity 171477

BRACKET, Switch Mounting

$

$

Not available

6

Simplicity 2122201SM

SWITCH, Key

$

$

Not available

7

Simplicity 171802

SWITCH & HARNESS ASSY

$

$

Not available

8

Simplicity 171475

HARNESS ASSY

$

$

Not available

9

Simplicity 172415

BATTERY ASSY

$

$

Not available

10

Simplicity 2108812

CLAMP, Cable, Handle

$

$

Not available

11

Simplicity 171799

FILM, Simpli-Start

$

$

Not available

12

Simplicity 171800

FILM, Ignition

$

$

Not available

13

Simplicity 2827428

SCREW,Thd. Form. 1/4-20 x 3/8

$

$

Not available

14

Simplicity 1717163SM

KEY & RING ASSY

$8.99

$

In Stock, Qty 20+

0

15

Simplicity 928636

LOCKWASHER, Inter. Tooth, 9/16

$

$

Not available

16

Simplicity 122235

NUT, Hex Special

$

$

Not available

17

Simplicity 172165

HANDLE, Upper

$

$

Not available

18

Simplicity 108831

HOUSING, 19"

$

$

Not available
