990663 - Simplicity 36" Snow Thrower Attachment HITCH GROUP Parts Diagram

36" Snow Thrower Attachment

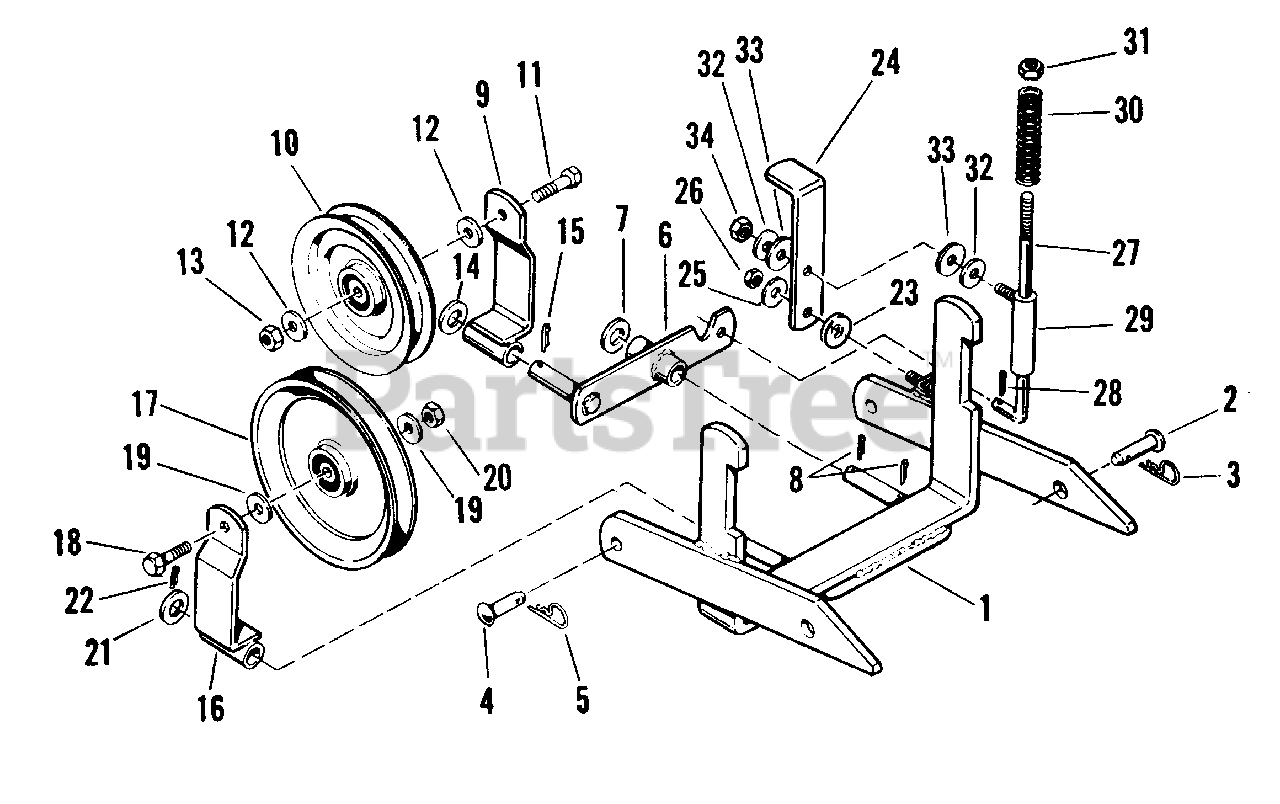

HITCH GROUP Parts Diagram

  • Title

1

Simplicity 2171792SM

Hitch Assembly

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 14

0

3

Simplicity 2106788

Spring Clip

$

$

Not available

4

Simplicity 118023

Pin

$

$

Not available

5

Simplicity 2106788

Spring Clip

$

$

Not available

6

Simplicity 171733

Idler Lever Assembly

$

$

Not available

7

Simplicity 2153072

Washer

$

$

Not available

8

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

9

Simplicity 171728

Idler Bracket

$

$

Not available

10

Simplicity 2171246

Idler Pulley

$

$

Not available

11

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

12

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

13

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

14

Simplicity 2153072

Washer

$

$

Not available

15

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

16

Simplicity 171727

Idler Bracket

$

$

Not available

17

Simplicity 2171247SM

Idler Pulley

$51.99

$

In Stock, Qty 20+

0

18

Simplicity 2705009

Hex Capscrew, 3/8"-16 x 1-1/2"

$

$

Not available

19

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

20

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

21

Simplicity 2153072

Washer

$

$

Not available

22

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

23

Simplicity 2159134

Washer, Nylon

$

$

Not available

24

Simplicity 171723

Lever

$

$

Not available

25

Simplicity 2719006

Washer

$

$

Not available

26

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

27

Simplicity 171224

Rod

$

$

Not available

28

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

29

Simplicity 156303

Rod Guide Assembly

$

$

Not available

30

Simplicity 1729277SM

Spring

$6.99

$

In Stock, only 1 left!

0

31

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

32

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

33

Simplicity 2159134

Washer, Nylon

$

$

Not available

34

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available
