990663 - Simplicity 36" Snow Thrower Attachment 36" & 42" Snowthrower Parts Diagram

36" Snow Thrower Attachment

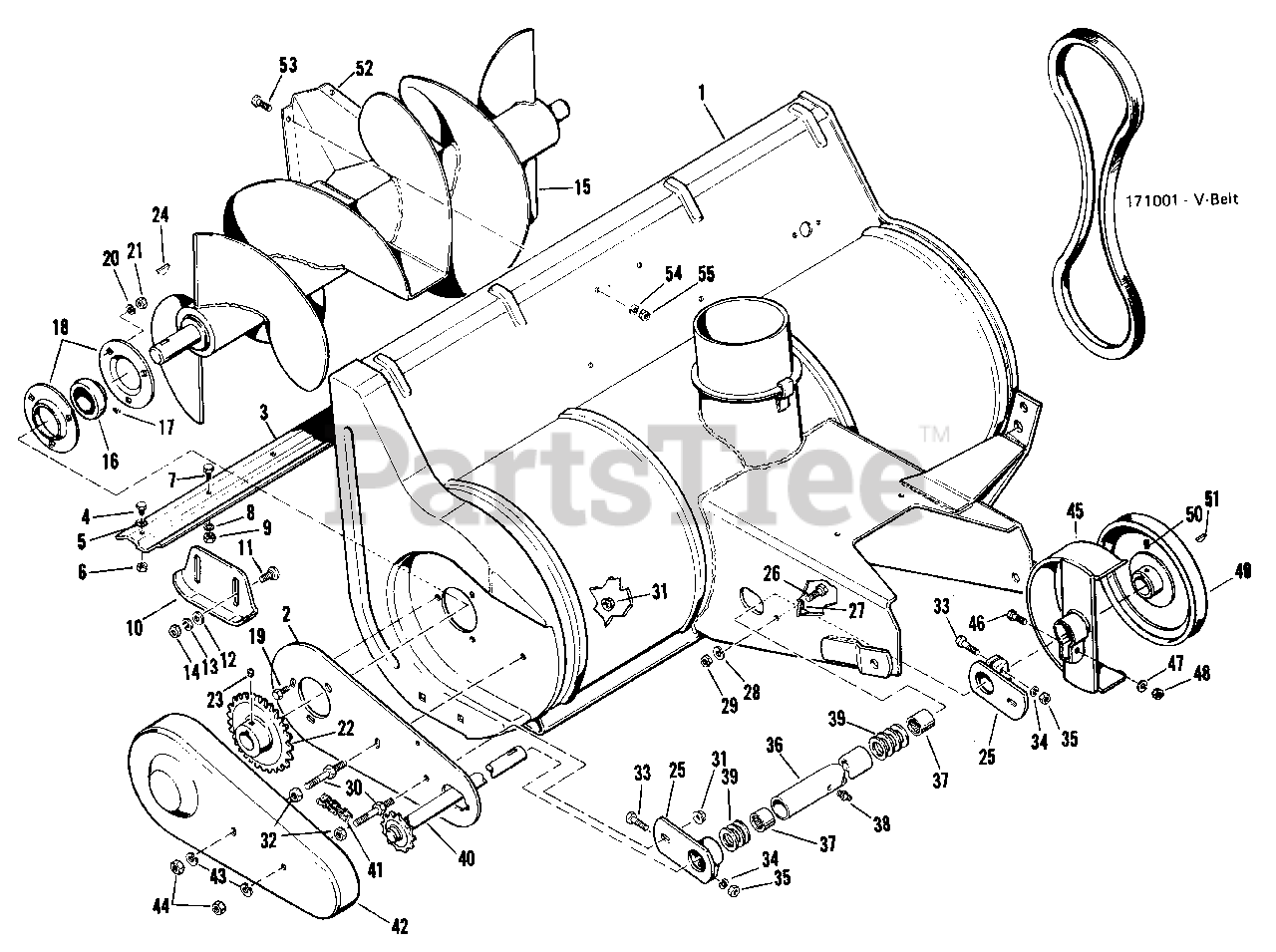

36" & 42" Snowthrower Parts Diagram

  • Title

1

Simplicity 171197

Body Assembly

$

$

Not available

2

Simplicity 2171221

Side Plate

$

$

Not available

3

Simplicity 2106746ASM

Body Scraper

$158.99

$

In Stock, only 3 left!

0

4

Simplicity 2715071

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

5

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

6

Simplicity 2717511

Hex Nut, Full Lock, 5/16"-18

$

$

Not available

7

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

8

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

9

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

10

Simplicity 2106747

Skid

$

$

Not available

11

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

12

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

13

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

14

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

15

Simplicity 2106748

Rotor Assembly

$

$

Not available

16

Simplicity 2106732

Bearing Cartridge

$

$

Not available

17

Simplicity 2713509

Set Screw, 1/4"-28 x 1/4"

$

$

Not available

18

Simplicity 2161069

Bearing Flange

$

$

Not available

19

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

20

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

21

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

22

Simplicity 2106653SM

Rotor Sprocket

$98.99

$

Usually ships in 2-12 days

0

23

Simplicity 2713503

Set Screw, 5/16"-18

$

$

Not available

24

Simplicity 2151040SM

Key

$9.49

$

In Stock, only 2 left!

0

25

Simplicity 106476

Clamp Support Assembly

$

$

Not available

26

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

27

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

28

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

29

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

30

Simplicity 106771

Stud

$

$

Not available

31

Simplicity 2718035

Nut, "Whiz Lock" 3/8-16

$

$

Not available

32

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

33

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2"

$

$

Not available

34

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

35

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

36

Simplicity 2106756A

Bearing Housing

$

$

Not available

37

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

38

Simplicity 2727002

Grease Fitting

$

$

Not available

39

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 7

0

40

Simplicity 2106757SM

Shaft Assembly

$240.99

$

Usually ships in 2-12 days

0

41

Simplicity 2171242SM

Chain W/Conn. Link

$66.99

$

Usually ships in 2-12 days

0

42

Simplicity 2171220

Chain Guard

$

$

Not available

43

Simplicity 2720002

Lock Washer

$

$

Not available

44

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

45

Simplicity 171211

Belt Guard Assembly

$

$

Not available

46

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2"

$

$

Not available

47

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

48

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

49

Simplicity 2171248SM

Pulley

$103.99

$

Usually ships in 2-12 days

0

50

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

51

Simplicity 2725003

Key

$

$

Not available

52

Simplicity 2106774ASM

Deflector

$29.99

$

Usually ships in 2-12 days

0

53

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

54

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

55

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available
