990629 - Simplicity 26-1/2" Revitalizer Attachment FRAME AND WHEELS Parts Diagram

26-1/2" Revitalizer Attachment

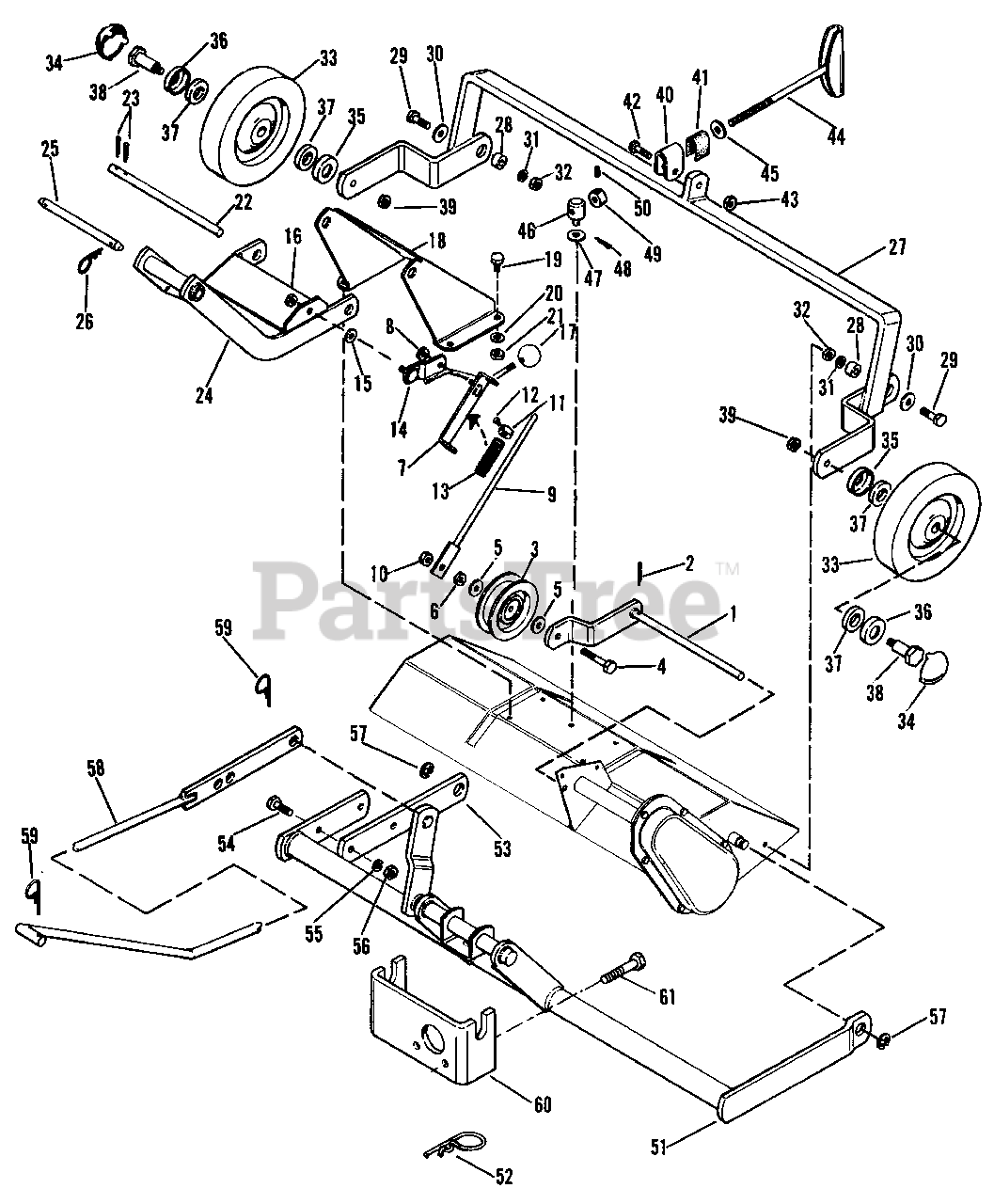

FRAME AND WHEELS Parts Diagram

  • Title

1

Simplicity 170390

Idler Arm Assembly

$

$

Not available

2

Simplicity 2722006

Cotter Pin, 1/8 x 1" lg.

$

$

Not available

3

Simplicity 2154534SM

Idler Pulley

$32.99

$

In Stock, only 2 left!

0

4

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

5

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

6

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

7

Simplicity 2158406

Rod Guide Assembly

$

$

Not available

8

Simplicity 2717530

Hex Nut Full Lock, Jam, 5/16"-18

$

$

Not available

9

Simplicity 170352

Clutch Rod Assembly

$

$

Not available

10

Simplicity 2717510

Hex Nut, Full, 3/8"-16

$

$

Not available

11

Simplicity 1729276SM

Set Collar

$

$

Not available

12

Simplicity 2713001

Set Screw, Sq. Hd., Clip Pt. 1/4"-20 x 3/8"

$

$

Not available

13

Simplicity 2163103SM

Spring

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 170349

Clutch Lever Assembly

$

$

Not available

15

Simplicity 2159134

Special Washer

$

$

Not available

16

Simplicity 2717511

Hex Nut, Full, 5/16"-18

$

$

Not available

17

Simplicity 2122005SM

Knob

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 170398

Arm Support

$

$

Not available

19

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

20

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

21

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

22

Simplicity 170345

Pivot Pin

$

$

Not available

23

Simplicity 2722006

Cotter Pin, 1/8" x 1" lg.

$

$

Not available

24

Simplicity 170399

Link Assembly

$

$

Not available

25

Simplicity 156268

Pin

$

$

Not available

26

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 170421

Frame Assembly

$

$

Not available

28

Simplicity 2153073

Spacer

$

$

Not available

29

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

30

Simplicity 2719002

Plain Washer. 5/16"

$

$

Not available

31

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

32

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

33

Simplicity 108702

Wheel

$

$

Not available

34

Simplicity 108783

Hub Cap

$

$

Not available

35

Simplicity 108827

Seal Housing

$

$

Not available

36

Simplicity 108820

Seal Housing

$

$

Not available

37

Simplicity 108819

Wheel &al

$

$

Not available

38

Simplicity 108764

Wheel Bolt

$

$

Not available

39

Simplicity 2717524

Hex Nut, Lock, Jam 3/8"-16

$

$

Not available

40

Simplicity 2152050SM

Rod Guide

$9.49

$

Usually ships in 2-12 days

0

41

Simplicity 2121175SM

Liner

$7.99

$

Usually ships in 2-12 days

0

42

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

43

Simplicity 2717511

Hex Nut Full, Lock, 5/16"-8

$

$

Not available

44

Simplicity 2108415

Adjusting Screw Assembly

$

$

Not available

45

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

46

Simplicity 108172

Pivot

$

$

Not available

47

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

48

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

49

Simplicity 105201

Set Collar

$

$

Not available

50

Simplicity 2713505

Soc. Hd. Set Screw, Hollow Pt., 1/4"-20 x 5/16" lg.

$

$

Not available

51

Simplicity 170403

Hitch Assembly

$

$

Not available

52

Simplicity 2106788

Pin

$

$

Not available

53

Simplicity 170415

R.H. Pivot Bar

$

$

Not available

54

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

55

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

56

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

57

Simplicity 2158596

Retaining Ring

$

$

Not available

58

Simplicity 170447

Lift Rod Assy.

$

$

Not available

59

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

60

Simplicity 123096

Attachment Hitch

$

$

Not available

61

Simplicity 2715042

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available
