990624 - Simplicity Low Profile Trailer Frame & Cover LOW PROFILE TRAILER FRAME & COVER Parts Diagram

Low Profile Trailer Frame & Cover

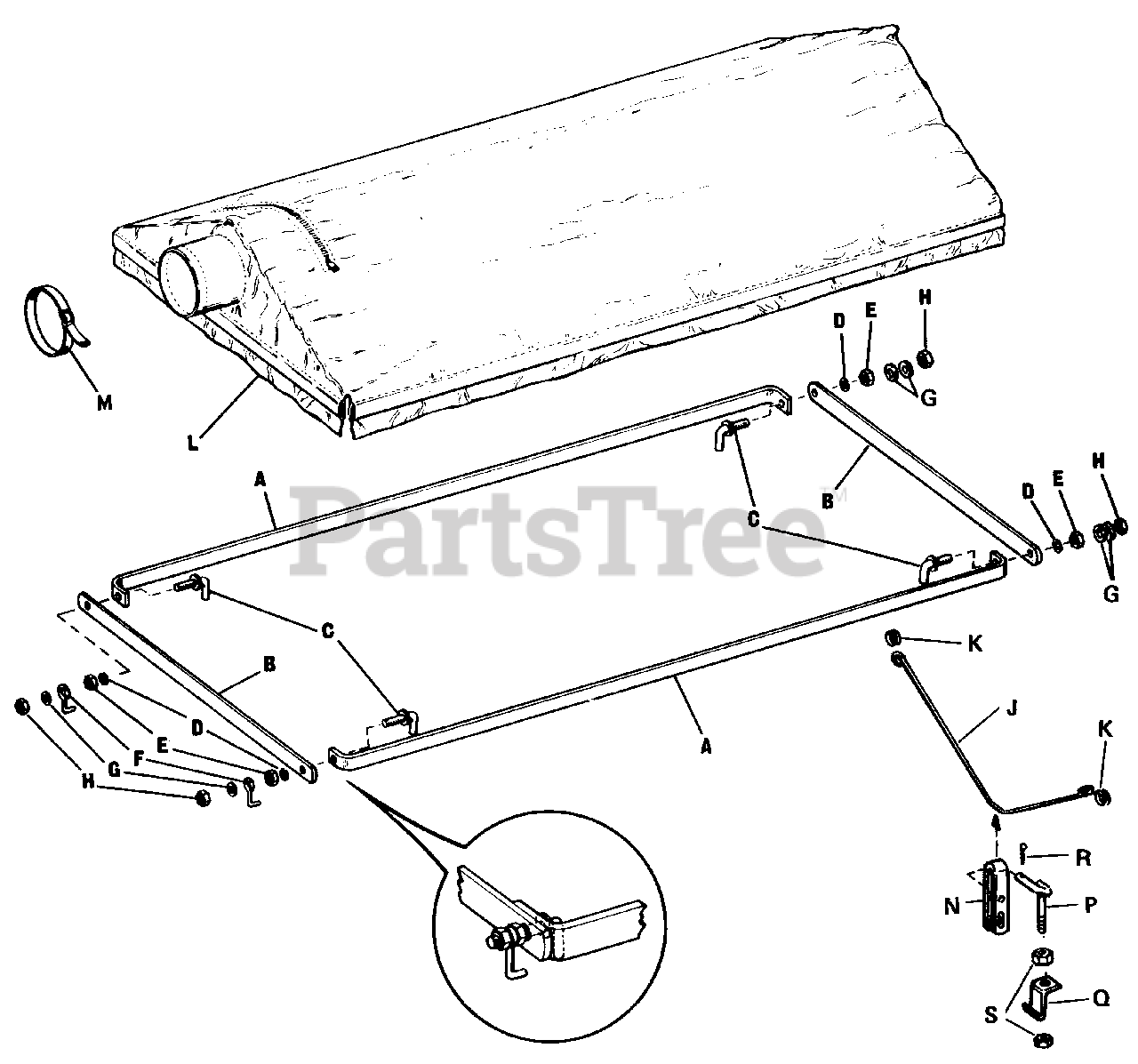

LOW PROFILE TRAILER FRAME & COVER Parts Diagram

  • Title

A

Simplicity 123130

Side Member-Frame

$

$

Not available

B

Simplicity 123131

End Bracket-Frame

$

$

Not available

C

Simplicity 123132

Stud Ass'y-Special

$

$

Not available

D

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

E

Simplicity 2717001

Hex Nut Full 5/16"-18NC

$

$

Not available

F

Simplicity 123134

Stop

$

$

Not available

G

Simplicity 2719002

Washer-Plain 5/16

$

$

Not available

H

Simplicity 2717511

Hex Nut Full Lock, 5/16"-18NC

$

$

Not available

J

Simplicity 170003

Bail

$

$

Not available

K

Simplicity 170134

Repair Link

$

$

Not available

L

Simplicity 123136

Cover W/Hose Strap

$

$

Not available

M

Simplicity 2123049SM

Hose Strap (Service Only)

$

$

Not available

N

Simplicity 170002

Lever

$

$

Not available

P

Simplicity 170001

Latch Rod

$

$

Not available

Q

Simplicity 170000

Latch

$

$

Not available

R

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

S

Simplicity 2717510

Hex Nut Full Lock, 3/8"-16

$

$

Not available
